GF Malleable Fittings union elbow flat seat 95

Union elbow, flat seat, ISO/EN UA1
- Supplied without sealing gaskets

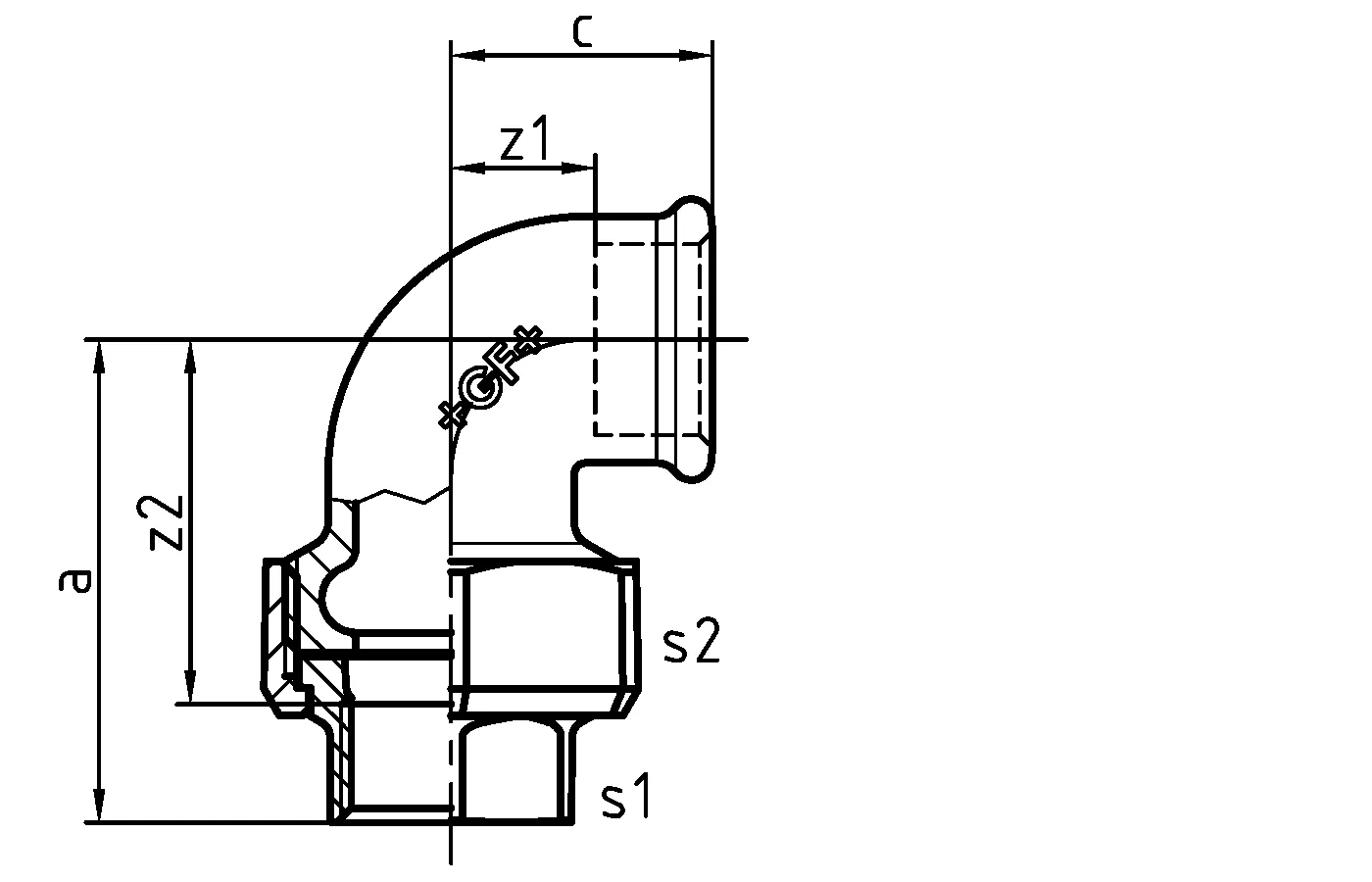

- a and z2 include the seal thickness as per table "Sealing Gasket Dimension".

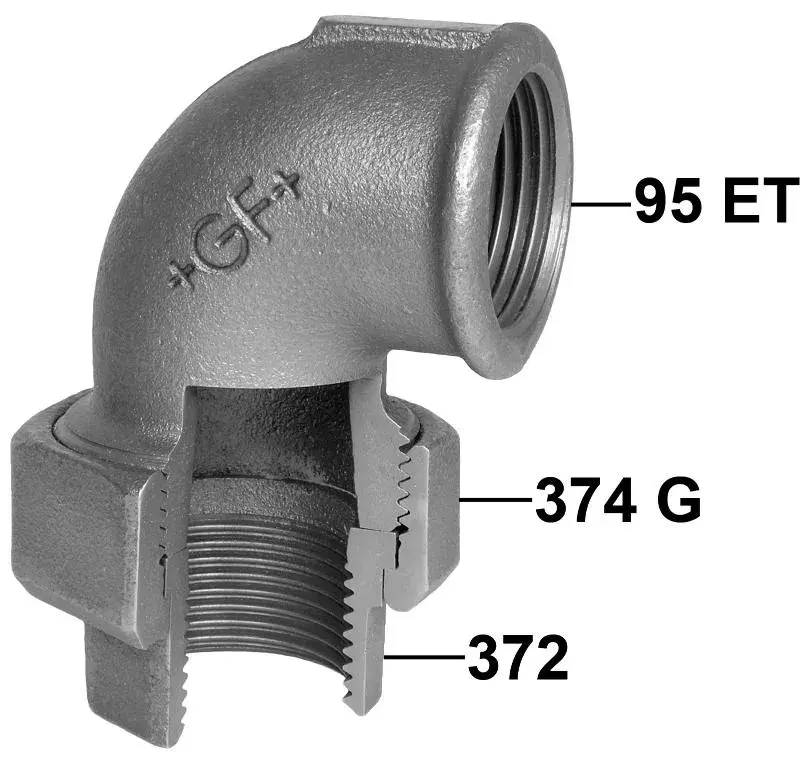

- '374 G' refers to the thread size 'G' according to ISO 228 of the union nut 374
- * Inside hexagon
- Female / female

Item details

1153092 / - / -

GF Malleable Fittings union elbow flat seat 95 3/8 B

1153099 / - / -

GF Malleable Fittings union elbow flat seat 95 3/8 G

1153093 / - / -

GF Malleable Fittings union elbow flat seat 95 1/2 B

1153100 / - / -

GF Malleable Fittings union elbow flat seat 95 1/2 G

1153094 / - / -

GF Malleable Fittings union elbow flat seat 95 3/4 B

1153101 / - / -

GF Malleable Fittings union elbow flat seat 95 3/4 G

1153095 / - / -

GF Malleable Fittings union elbow flat seat 95 1 B

1153102 / - / -

GF Malleable Fittings union elbow flat seat 95 1 G

1153096 / - / -

GF Malleable Fittings union elbow flat seat 95 1 1/4 B

1153103 / - / -

GF Malleable Fittings union elbow flat seat 95 1 1/4 G

1153097 / - / -

GF Malleable Fittings union elbow flat seat 95 1 1/2 B

1153104 / - / -

GF Malleable Fittings union elbow flat seat 95 1 1/2 G

1153098 / - / -

GF Malleable Fittings union elbow flat seat 95 2 B

1153105 / - / -

GF Malleable Fittings union elbow flat seat 95 2 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
