GF Malleable Fittings elbow red 92 90deg

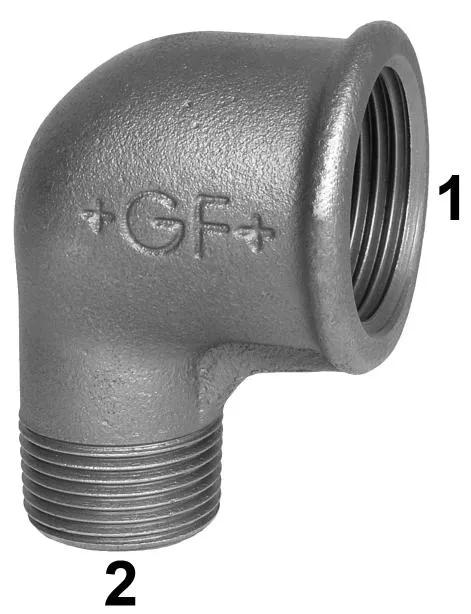

Elbow 90°, female thread reduced, ISO/EN A4
.jpg?sitename=Global&width=1052&height=962&ext=.jpg){kind=logo}
Item details
1153061 / - / -
GF Malleable Fittings elbow red 92 90deg 3/8 - 1/2 G
1153031 / - / -
GF Malleable Fittings elbow red 92 90deg 1/2 - 3/8 B
1153054 / - / -
GF Malleable Fittings elbow red 92 90deg 1/2 - 3/8 G
1153038 / - / -
GF Malleable Fittings elbow red 92 90deg 1/ 2 - 3/4 B
1153062 / - / -
GF Malleable Fittings elbow red 92 90deg 1/2 - 3/4 G
1153032 / - / -
GF Malleable Fittings elbow red 92 90deg 3/4 - 1/2 B
1153055 / - / -
GF Malleable Fittings elbow red 92 90deg 3/4 - 1/2 G
1153039 / - / -
GF Malleable Fittings elbow red 92 90deg 3/4 - 1 B
1153063 / - / -
GF Malleable Fittings elbow red 92 90deg 3/4 - 1 G
1153041 / - / -
GF Malleable Fittings elbow red 92 90deg 1 - 1/2 B
1153065 / - / -
GF Malleable Fittings elbow red 92 90deg 1 - 1/2 G
1153033 / - / -
GF Malleable Fittings elbow red 92 90deg 1 - 3/4 B
1153056 / - / -
GF Malleable Fittings elbow red 92 90deg 1 - 3/4 G
1153040 / - / -
GF Malleable Fittings elbow red 92 90deg 1 - 1 1/4 B
1153064 / - / -
GF Malleable Fittings elbow red 92 90deg 1 - 1 1/4 G
1153057 / - / -
GF Malleable Fittings elbow red 92 90deg 1 1/4 - 3/4 G
1153034 / - / -
GF Malleable Fittings elbow red 92 90deg 1 1/4 - 1 B
1153058 / - / -
GF Malleable Fittings elbow red 92 90deg 1 1/4 - 1 G
1153059 / - / -
GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 G
1153035 / - / -
GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 B
1153036 / - / -
GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 1/4 B
About
Specification
- With their extensive history and tradition, malleable cast iron fittings are the most common pipe fittings. Because of their durability and mechanical strength, these fittings are very popular. The material is able to endure high mechanical stress and when combined with the standardized jointing method can be used in a wide range of applications.
Application
- Sanitary, heating and gas installation, mechanical engineering (oil, cool pipework), construction of petrol stations (gas lines), sprinkler
Product drawings

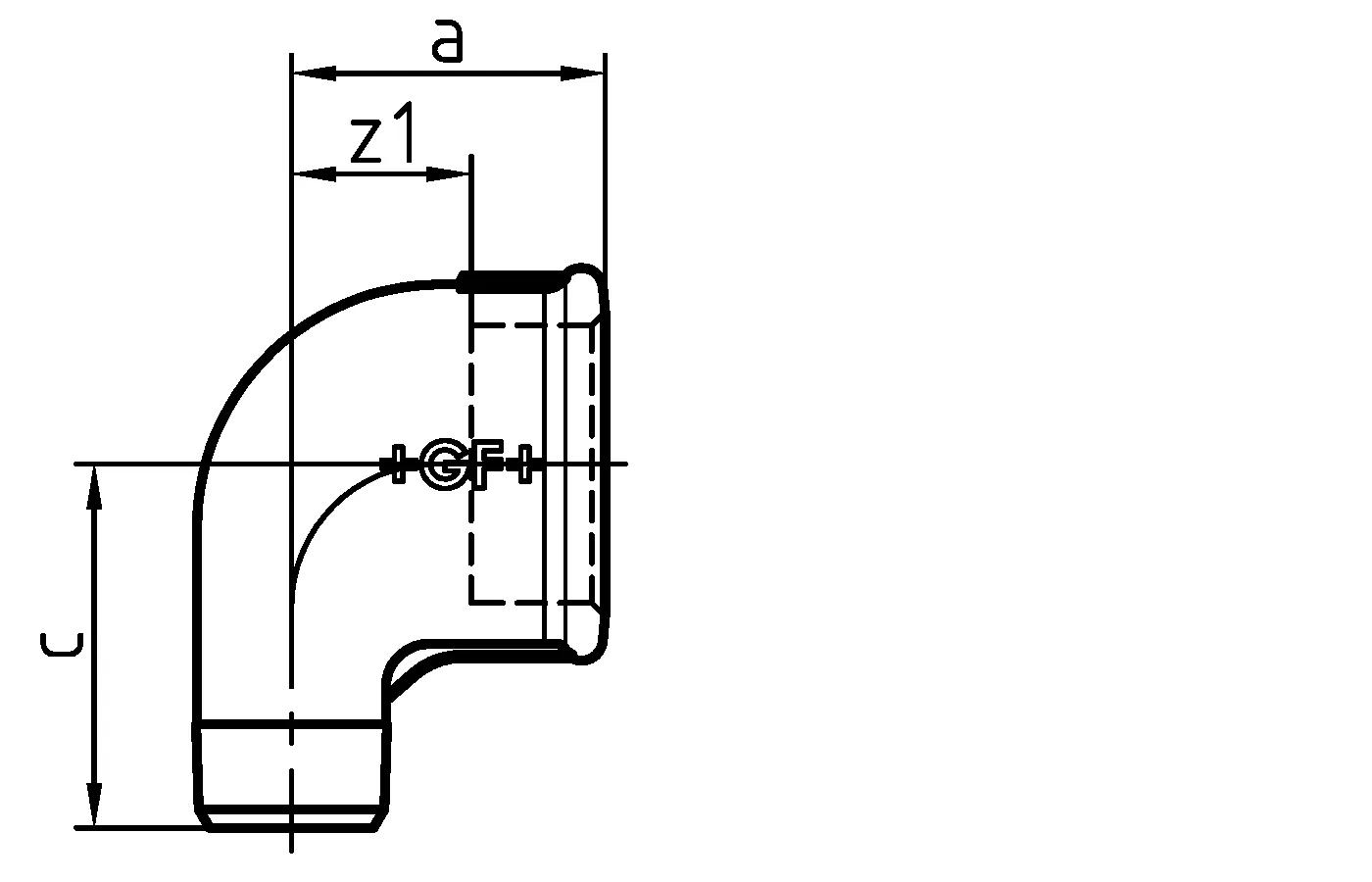

Z-drawing
