How often does the backwash filter need to be serviced?

The backwash filter should be serviced at least every 2 months. To do this, open and close the backwash mechanism 3 times for approx. 3 seconds each time. For automatic backwashing, the filter can be retrofitted with an automatic backwash system. This eliminates manual flushing, which the homeowner or building manager no longer has to think about.

What happens if there is a power failure during automatic backwashing?

In the event of a power failure during automatic backwashing, the integrated battery ensures that the flushing process is completed safely and the valve is closed. This reliably prevents the risk of leakage.

GF JRGURED Combi backwash filter DN 25-50

Top-level protection

Powerful combination

For a reliable and long-lasting drinking water installation with backwash filter

The new backwash filter-pressure reducer combination reliably protects your domestic installation from particles in the public water supply while maintaining a constant water pressure. This keeps fittings and appliances functioning reliably over the long term and extends the service life of the installation as a whole.

Key facts at a glance

Characteristics of GF JRGURED Combi backwash filter

Dimensions DN 25, 32, 40, 50 (1-2")
Factory setting: 4 bar, adjustment range: 2-6 bar
100 µm mesh filter
Retrofit backwashing unit
Rotary-pulse backwashing technology
Filtered water supply maintained during backwashing
Replaceable filter cartridge

Benefits for Top-Level protection of JRGURED backwash filter

Maximum filtration performance and cleaning efficiency

Large filter surface ensures consistently high flow rates
Rotary-pulse backwash system ensures maximum cleaning efficiency
Consumes much less backwash water than conventional filter systems

Easy and safe operation

Ergonomic operating handle with a clear position indicator for comfortable and intuitive backwashing

Premium materials

Premium materials such as gunmetal, stainless steel, and durable plastic ensure maximum reliability and long service life
All materials comply with Swiss and European drinking water standards

Convenient maintenance and monitoring

Rotating monthly ring marks the next backwash date
Transparent housing for simple visual inspection of the filter condition

Automatic backwashing

Easy retrofitting with optional automatic backwash system
Built-in battery ensures reliable closing even during a power outage

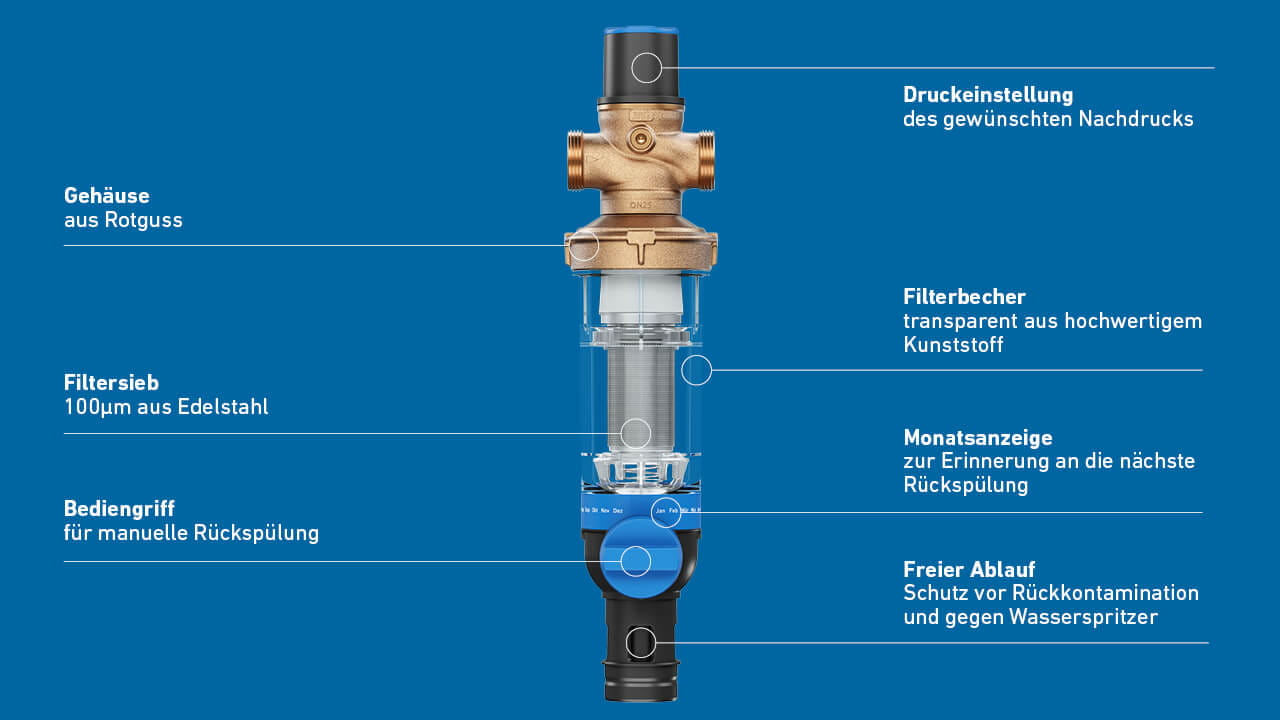

Structure of the GF JRGURED Combi backwash filter

Efficient cleaning of the filter

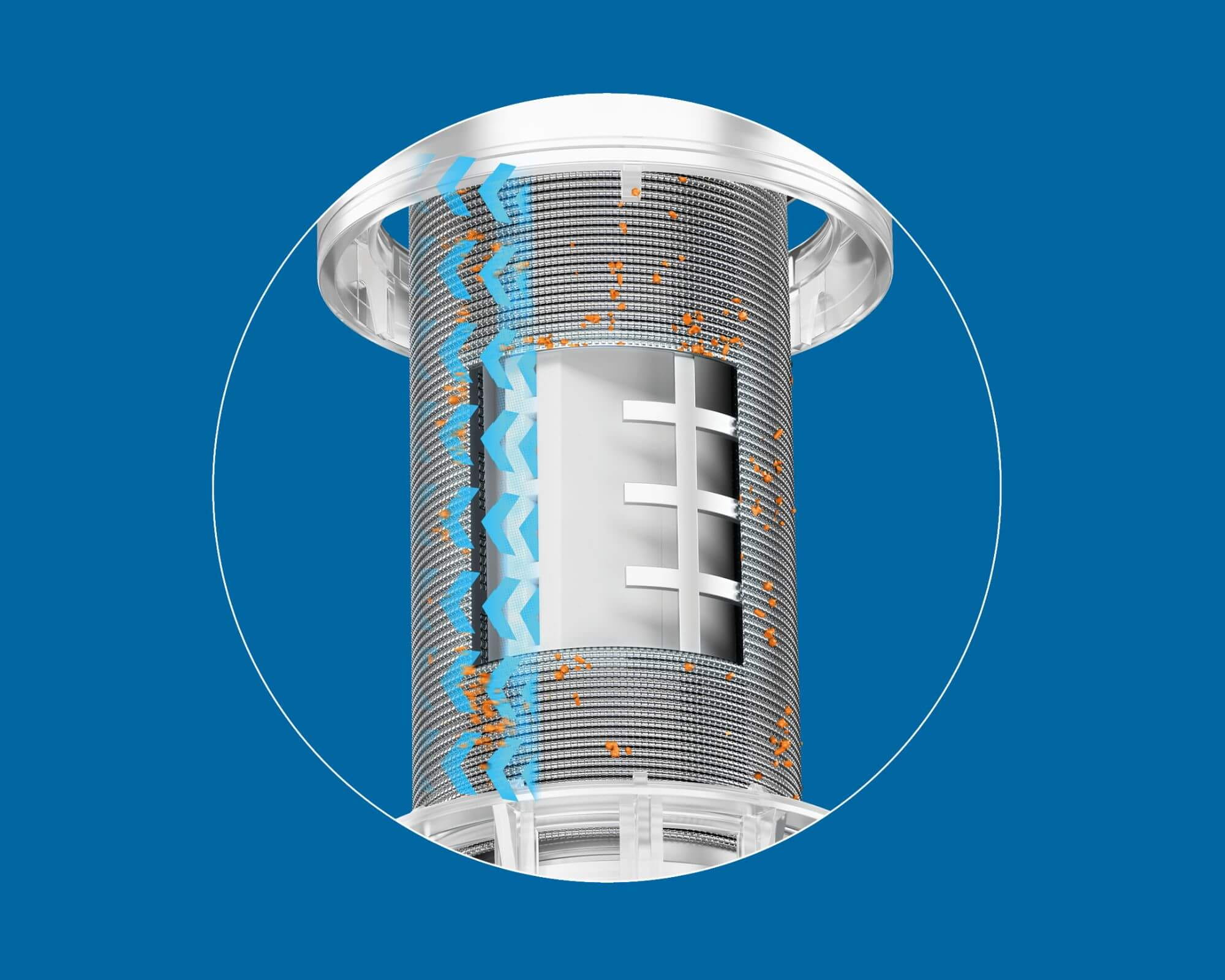

Rotary-pulse backwash technology for maximum cleaning efficiency

Particles filtered from the drinking water accumulate on the filter screen and must be regularly removed by backwashing to maintain optimal performance. Cleaning is recommended at least every two months.

Backwashing removes the accumulated particles, and discharges them into the wastewater. With rotary-pulse technology, a short backwashing sequence of just three 3-second cycles suffices. The filter screen is cleaned from the inside by a rotating, high-pressure water jet, achieving high efficiency with minimal backwashing water.

Automatic backwashing

Easy retrofitting of the automatic backwash system

The automatic backwash unit ensures maximum convenience and safety through regular, automated backwashing. Built-in battery ensures reliable closing even during a power outage. Retrofitting is simple and tool-free: remove the operating handle, fit the automatic backwash system, connect to the power supply, and select the required interval. Ten different time programs are available, with flushing intervals ranging from 2 hours up to 6 months.

FAQs for GF JRGURED Combi backwash filter

Unlike conventional backwash filters, where the filter screen is only flowed through from the inside to the outside, the rotational momentum technology concentrates the volume flow in rotating chambers. This results in a higher flow velocity and thus a significantly stronger cleaning effect.
The filter screen is cleaned more thoroughly, the flushing process takes less time, and water consumption is reduced. At 4 bar inlet pressure, only 15 liters of flushing water are required.
