2D Customer Drawings
75 B0000088043
Weldable elbows
Item details
1052098 / - / -
PRESSURE ELBOW 110X45 PN10 SDR17 PE100 LONG
1056655 / - / -
PRESSURE ELBOW 140X45 PN10 SDR17 PE100 LONG
1052099 / - / -
PRESSURE ELBOW 160X45 PN10 SDR17 PE100 LONG
1052101 / - / -
PRESSURE ELBOW 200X45 PN10 SDR17 PE100 LONG
1052102 / - / -
PRESSURE ELBOW 225X45 PN10 SDR17 PE100 LONG
1056652 / - / -
PRESSURE ELBOW 250X45 PN10 SDR17 PE100 LONG
1056653 / - / -
PRESSURE ELBOW 280X45 PN10 SDR17 PE100 LONG
1056654 / - / -
PRESSURE ELBOW 315X45 PN10 SDR17 PE100 LONG
1052144 / - / -
PRESSURE ELBOW 200X45 PN16 SDR11 PE100 LONG
1052145 / - / -

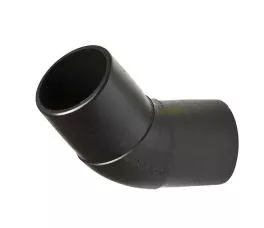

PRESSURE ELBOW 225X45 PN16 SDR11 PE100 LONG
1055693 / - / -

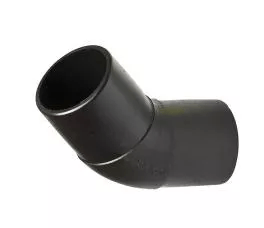

PRESSURE ELBOW 250X45 PN16 SDR11 PE100 LONG
1055694 / - / -

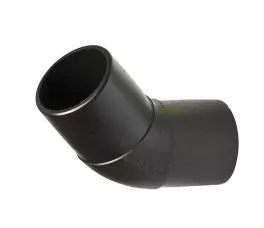

PRESSURE ELBOW 315X45 PN16 SDR11 PE100 LONG
1033653 / - / -
PRESSURE ELBOW 110X90 PN10 SDR17 PE100 LONG
1055674 / - / -
PRESSURE ELBOW 140X90 PN10 SDR17 PE100 LONG
1033654 / - / -
PRESSURE ELBOW 160X90 PN10 SDR17 PE100 LONG
1033655 / - / -
PRESSURE ELBOW 200X90 PN10 SDR17 PE100 LONG
1052096 / - / -
PRESSURE ELBOW 225X90 PN10 SDR17 PE100 LONG
1056650 / - / -
PRESSURE ELBOW 250X90 PN10 SDR17 PE100 LONG
1055675 / - / -

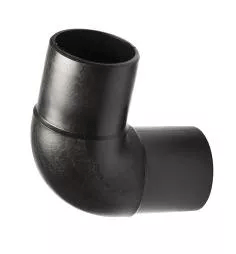

PRESSURE ELBOW 280X90 PN10 SDR17 PE100 LONG
1056651 / - / -

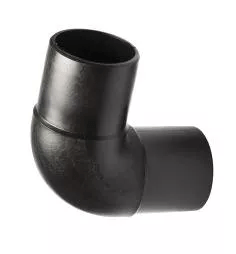

PRESSURE ELBOW 315X90 PN10 SDR17 PE100 LONG
1052135 / - / -
PRESSURE ELBOW 200X90 PN16 SDR11 PE100 LONG
1052136 / - / -
PRESSURE ELBOW 225X90 PN16 SDR11 PE100 LONG
1055691 / - / -

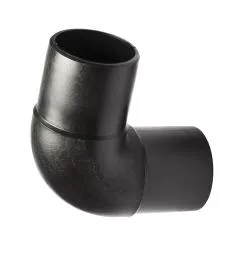

PRESSURE ELBOW 250X90 PN16 SDR11 PE100 LONG
1055692 / - / -
PRESSURE ELBOW 315X90 PN16 SDR11 PE100 LONG
1068414 / - / -
PRESSURE ELBOW 110X30 PN10 SDR17 PE100 LONG
Documents
Technical manuals
2D Customer Drawings
74 B0000088087
Mounting dimensions Pressure elbow 90 deg PN10 SDR17
2D Customer Drawings
75 B0000088065
Mounting dimensions Pressure elbow 45 deg PN16 SDR11
Product drawings
Rendered

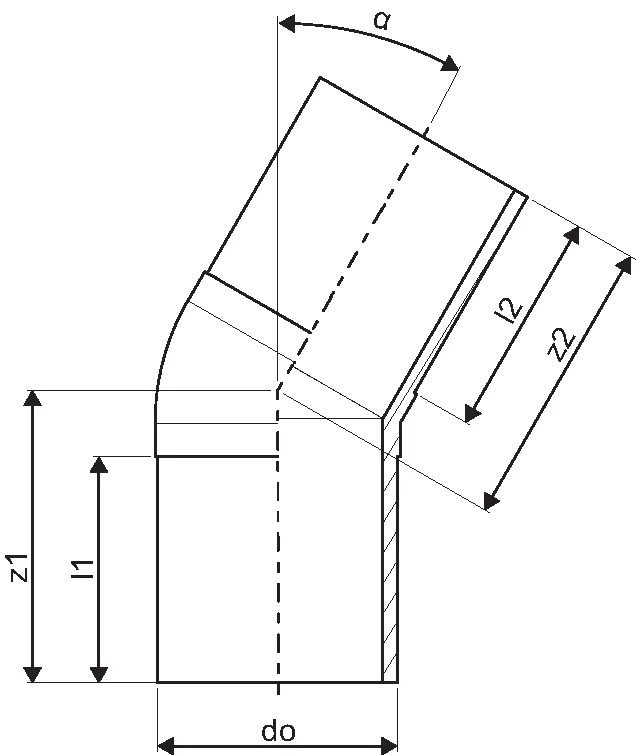

Z-drawing
