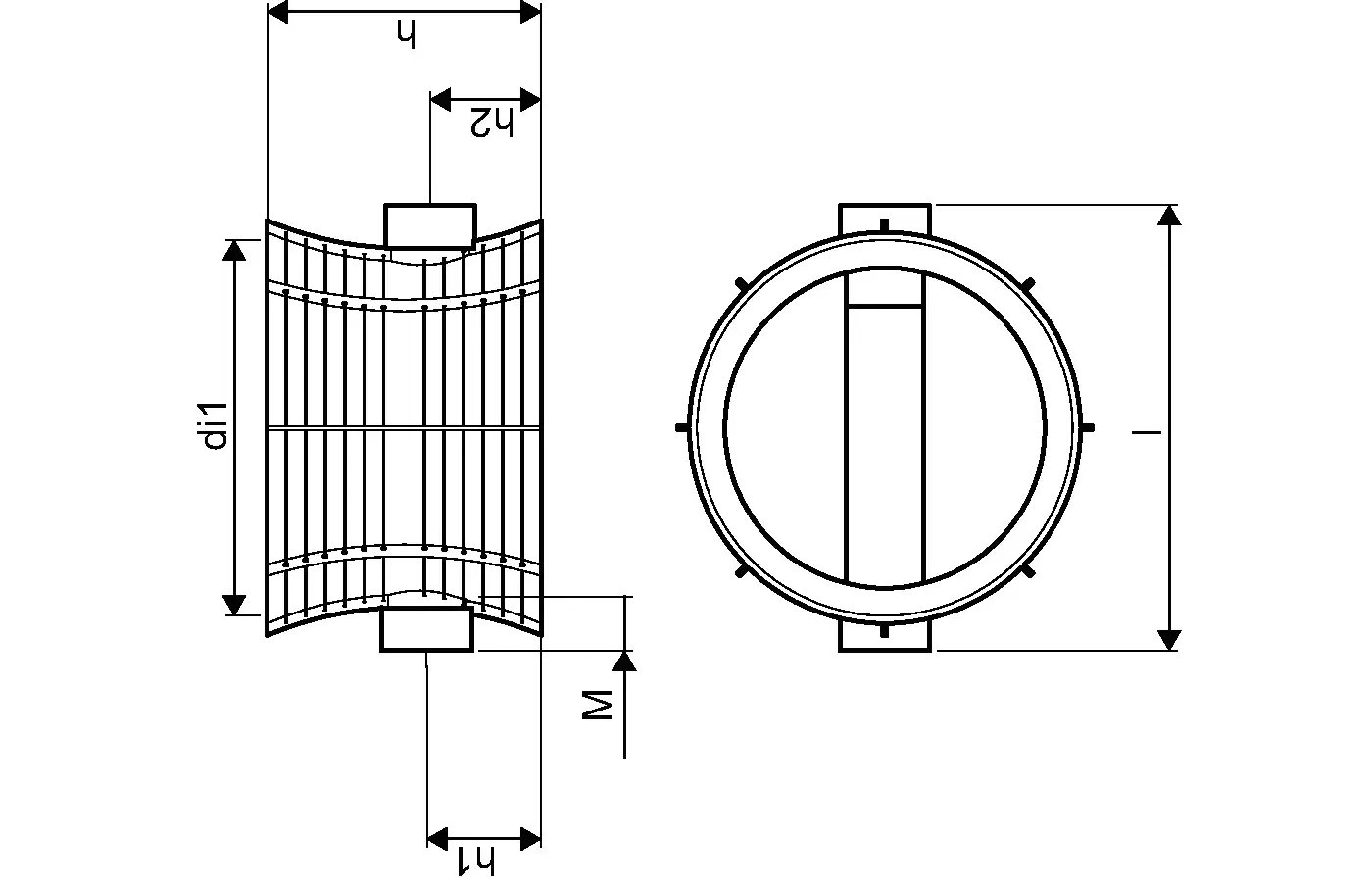

2D Customer Drawings
86 B0000086873
ACCESSO SEWER CHAMBER 1000/200 0-180 DEG T1 BLACK PP
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Inner_diameter_di1 | 1000 mm |
| Length (l) | 1255 mm |
| Z-measurement h | 700 mm |
| Z-measurement h1 | 292 mm |
| Z-measurement h2 | 284 mm |
| Z-measurement M | 110 mm |
Documents
Technical manuals
Sheets/Flyers
800 B0000086090
Uponor Accesso 1000 Inspection chamber Technical datasheet
Sheets/Flyers
260 B0000086136
