660 B0000090279

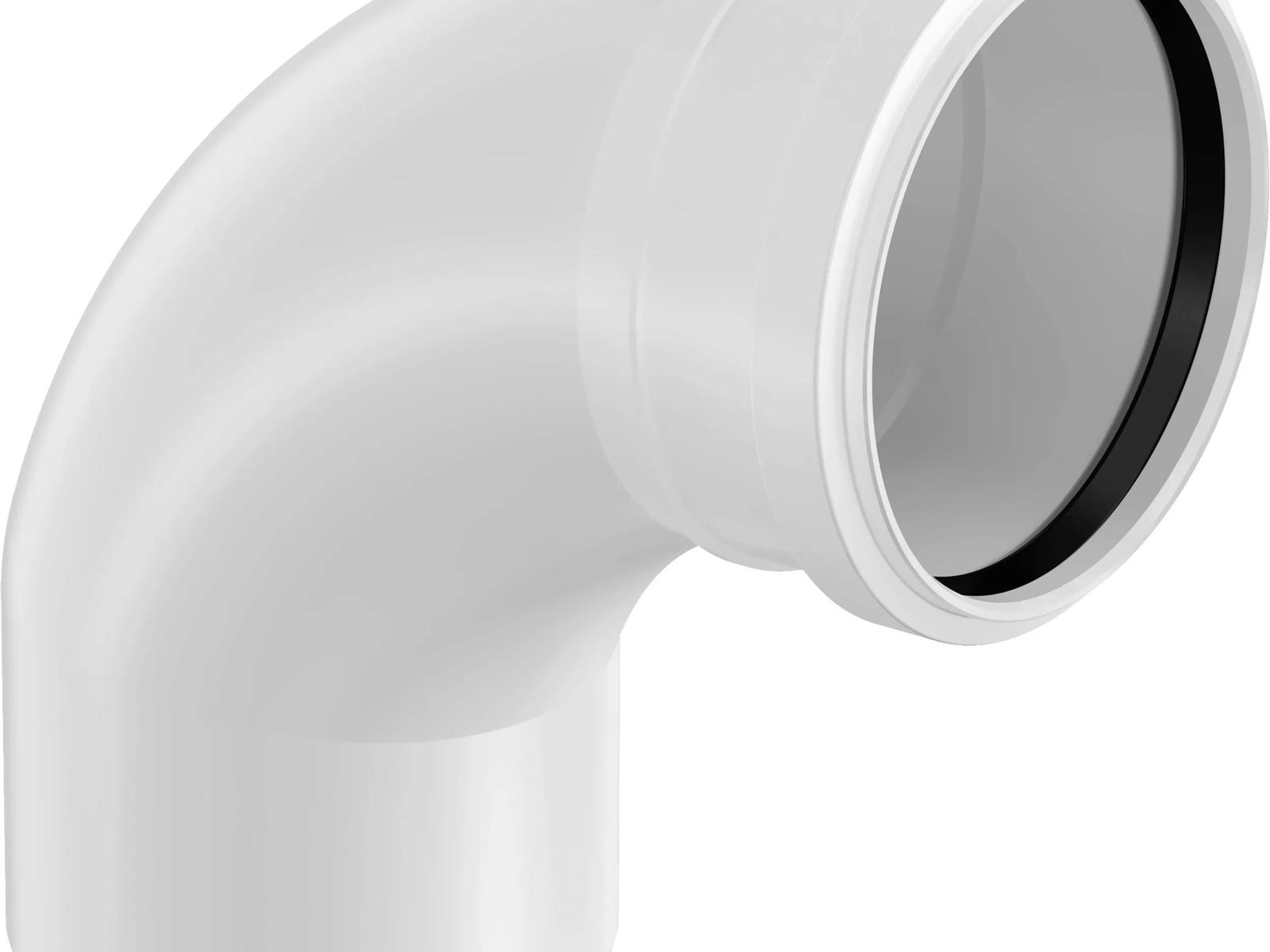

DECIBEL BEND 110 88,5 DEG SWEPT
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Z-measurement ALPHA | 88.5 ° |
| Z-measurement d | 110 mm |
| Z-measurement M | 59 mm |
| z1 | 104 mm |
| z2 | 105 mm |
Packaging
| Packaging Quantity 1 | 15 |
|---|---|
| Packaging Quantity 4 | 120 |
