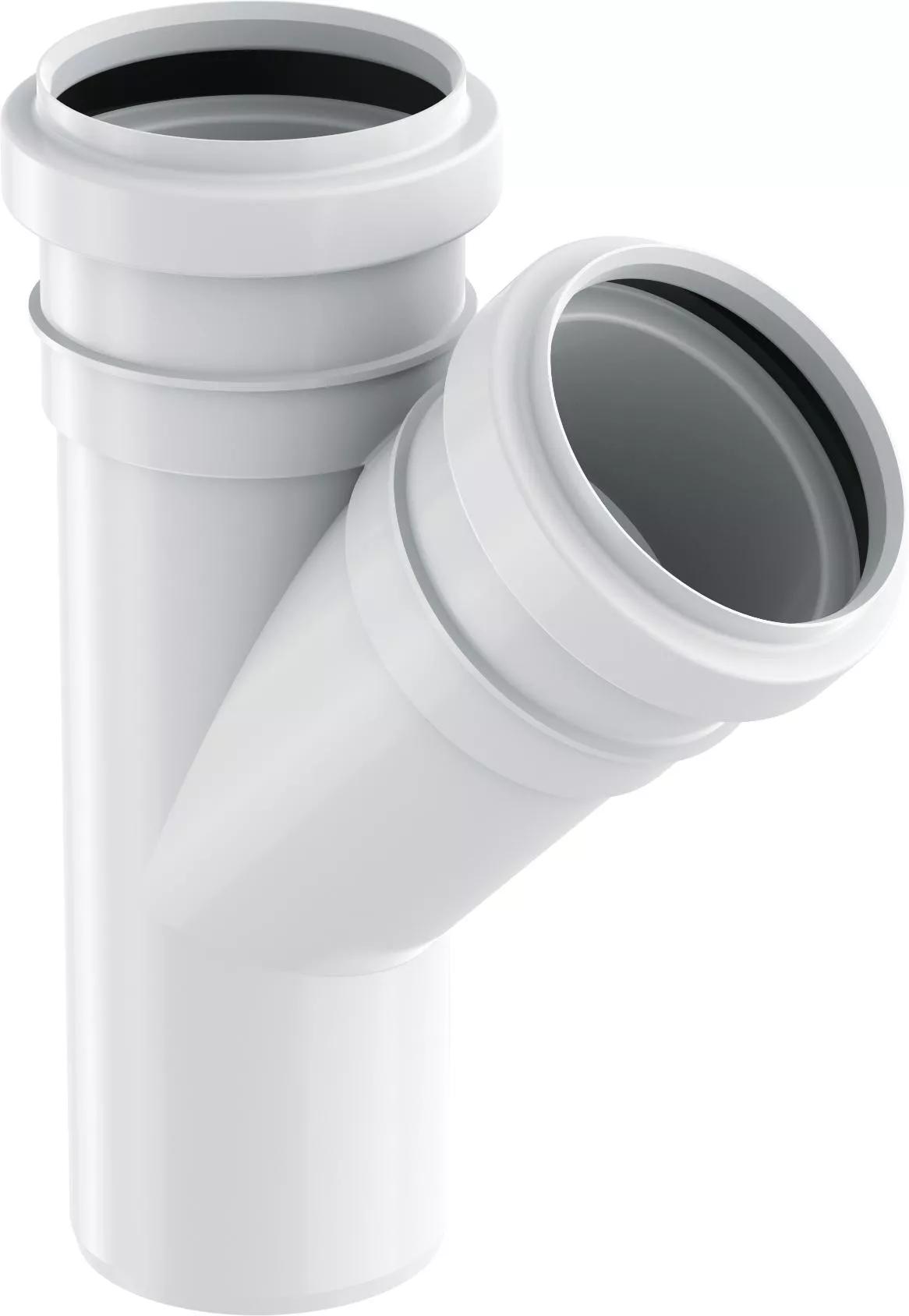

DECIBEL BRANCH 50/50-45 DEG

DECIBEL BRANCH 50/50-45 DEG

Part no.1000212

Product data sheet (pdf)

Item details

Technical data

Item UOM	Piece
Z-measurement ALPHA	45 °
Z-measurement d	50 mm
Z-measurement d1	50 mm
Z-measurement M	44 mm
Z-measurement M1	44 mm
z1	11 mm
z2	61 mm
z3	61 mm

Packaging

Packaging Quantity 1	10
Packaging Quantity 4	480

Documents

Technical manuals
Approval Certificate

2D Customer Drawings

1002 B0000090235

Type drawing. Decibel haarayhde 45 astetta

Manuals

5 KB0000123005

Kiinteistöviemäröinti: suunnittelu- ja asennusohje Uponor Decibel- ja HTP-kiinteistöviemärijärjestelmille (FI)

Approval Certificate

143 B0000087496

RISE certificate SC0091-16 (EN)

Approval Certificate

135 B0000089915

RISE certificate SC0091-16 (Estonian)

Approval Certificate

116 B0000087495

RISE certificate SC0091-16 (FI)
