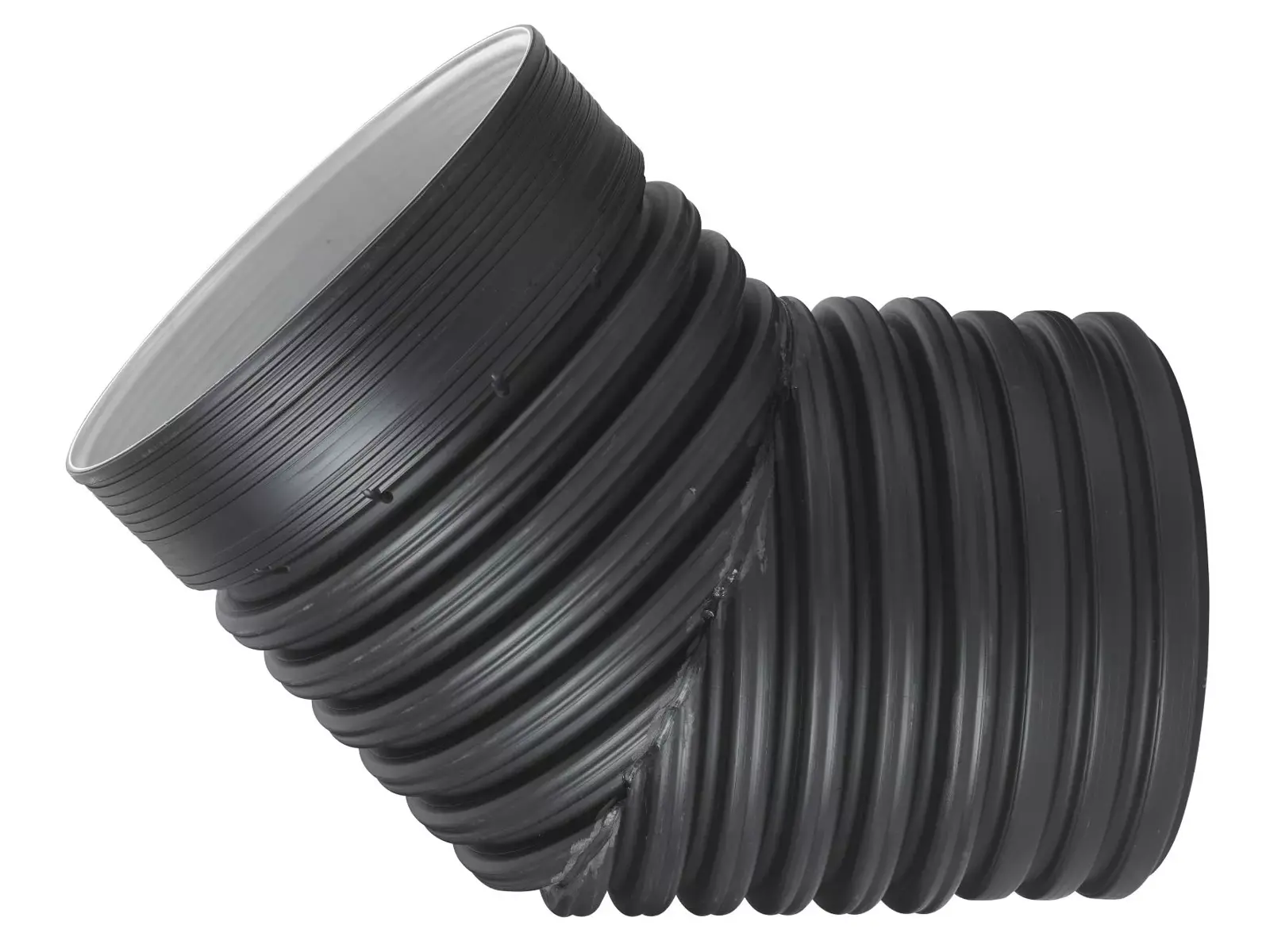

IQ STORM WATER BEND 800 45 DEG BLACK PP
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Inner_diameter_di | 800 mm |
| Outer Diameter_do1 | 864 mm |
| Outer Diameter_do2 | 896 mm |
| Outer Diameter_do3 | 902 mm |
| Z-measurement ALPHA | 45 ° |
| Z-measurement M | 260 mm |
| z1 | 1511 mm |
| z2 | 1285 mm |
Packaging
| Packaging Quantity 4 | 1 |
|---|
