2D Customer Drawings
202 B0000092226

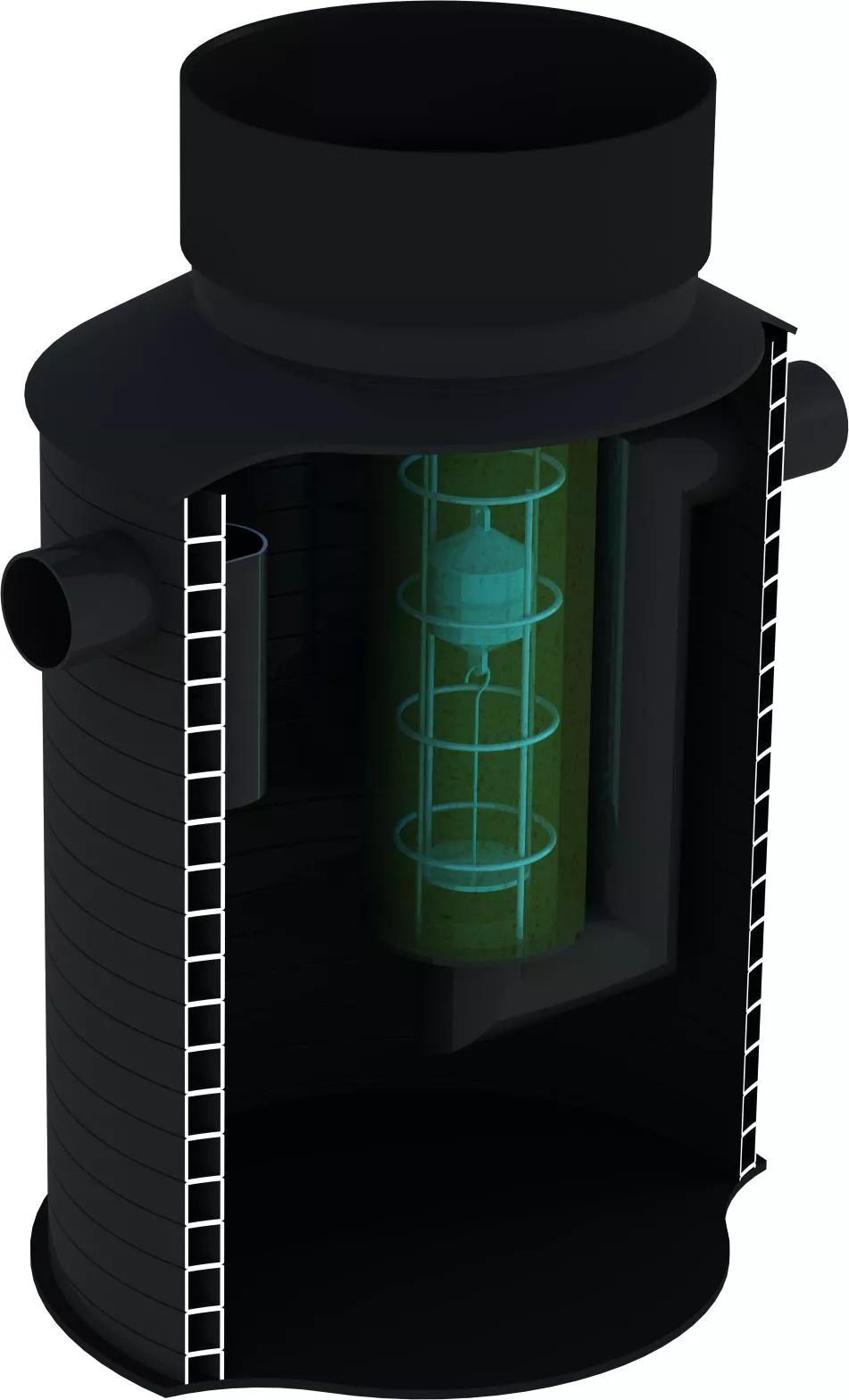

OIL SEPARATOR-PE- 20-2
Item details
Technical data
| Packaging Quantity 1 | 1 |
|---|---|
| Packaging Quantity 4 | 1 |
| Item UOM | Piece |
| Inner_diameter_di | 1400 mm |
| Outer Diameter_do | 1580 mm |
| Z-measurement h | 2635 mm |
| Z-measurement h1 | 1910 mm |
| Z-measurement h2 | 1880 mm |
Documents
Technical manuals
Declaration of Performance
CAD Drawings
Declaration of Performance
102 B0000089815
Declaration of Performance (DoP) for Uponor Oil Separators
Declaration of Performance
71 B0000089972
Declaration of Performance (DoP) for Uponor Oil Separators, in Finnish
Declaration of Performance
143 B0000090604
