76 B0000088121

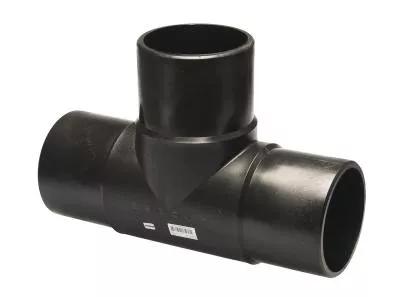

PRESSURE TEE 110/110X90 PN10 SDR17 PE100 LONG
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Length (l) | 91 mm |
| Outer Diameter_do1 | 110 mm |
| Outer Diameter_do2 | 110 mm |
| z | 169 mm |
| Z-measurement ALPHA | 90 ° |
| z1 | 169 mm |
| z2 | 169 mm |
Packaging
| Packaging Quantity 1 | 10 |
|---|
