72 B0000088132

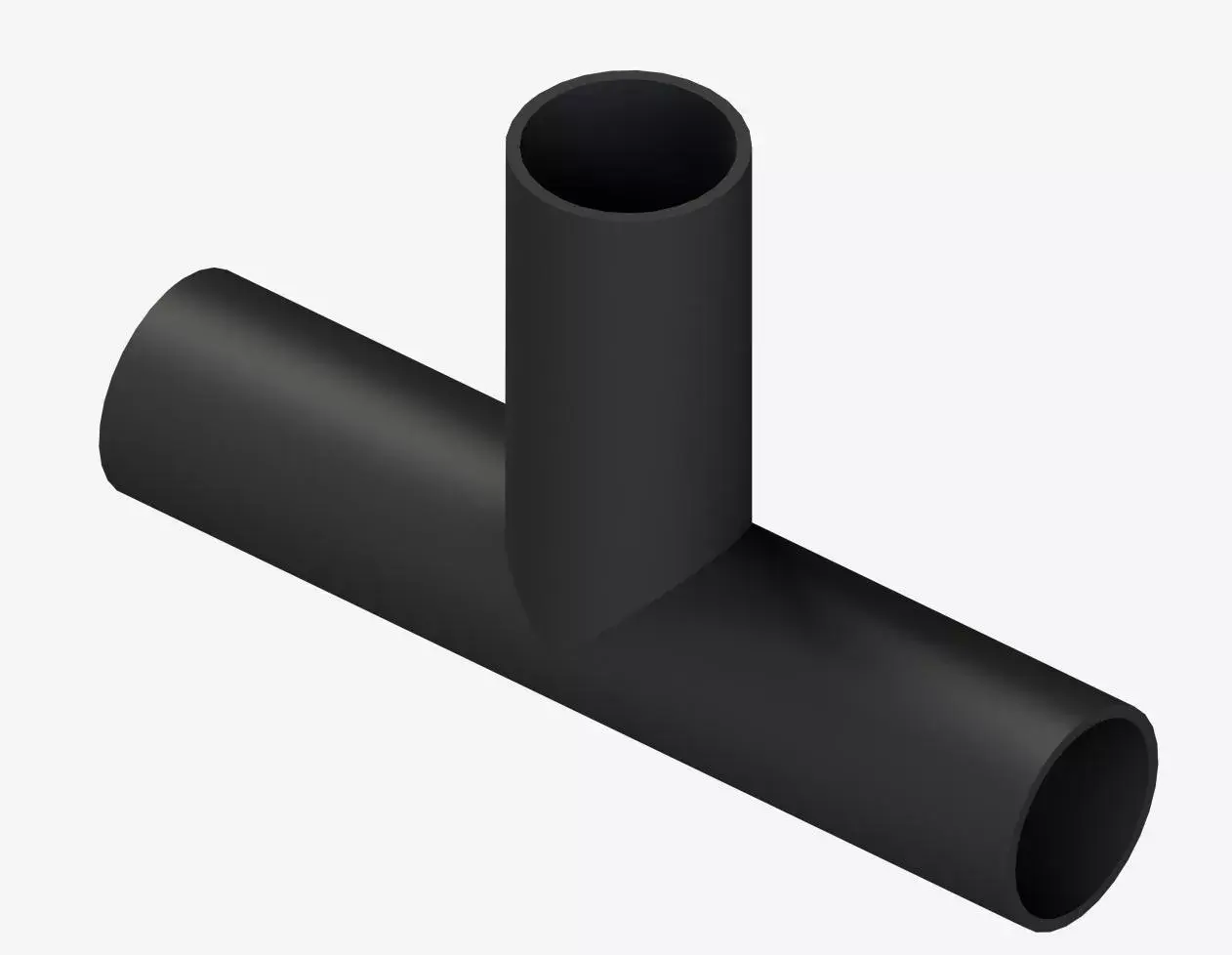

PRESSURE TEE 560/560X90 PN10 SDR17 PE100 SEGMENT WELDED
Item details
Technical data
| Packaging Quantity 4 | 1 |
|---|---|
| Item UOM | Piece |
| Outer Diameter_do | 560 mm |
| z1 | 1080 mm |
| z2 | 1080 mm |
| z3 | 1080 mm |
