2D Customer Drawings
76 B0000088121

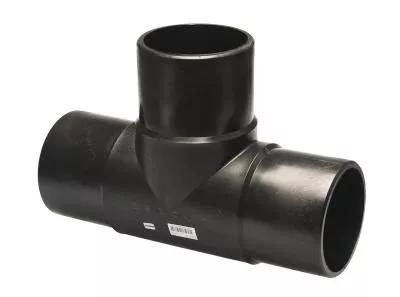

PRESSURE TEE 75/75X90 PN10 SDR17 PE100 LONG
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Length (l) | 73 mm |
| Outer Diameter_do1 | 75 mm |
| Outer Diameter_do2 | 75 mm |
| z | 129 mm |
| Z-measurement ALPHA | 90 ° |
| z1 | 129 mm |
| z2 | 129 mm |
Packaging
| Packaging Quantity 1 | 28 |
|---|
