2D Customer Drawings
138 B0000086930

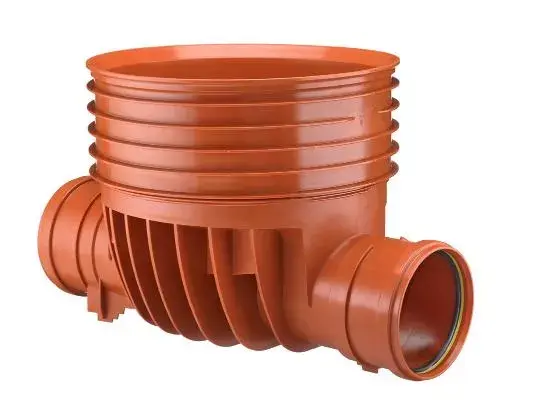

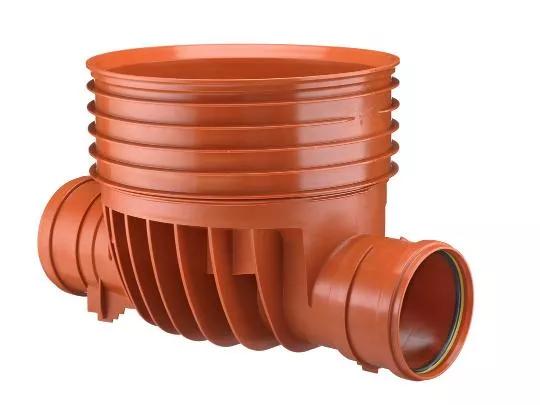

SEWER CHAMBER 400/200 T1 PP FOR CORRUGATED RISER
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Inner_diameter_di | 400 mm |
| Length (l) | 710 mm |
| Z-measurement h | 447 mm |
| Z-measurement h1 | 114 mm |
| Z-measurement h2 | 121 mm |
| Z-measurement M | 151 mm |
| Z-measurement M1 | 129 mm |
| z1 | 226 mm |
| z2 | 226 mm |
Packaging
| Packaging Quantity 4 | 8 |
|---|
