2D Customer Drawings
228 B0000086841

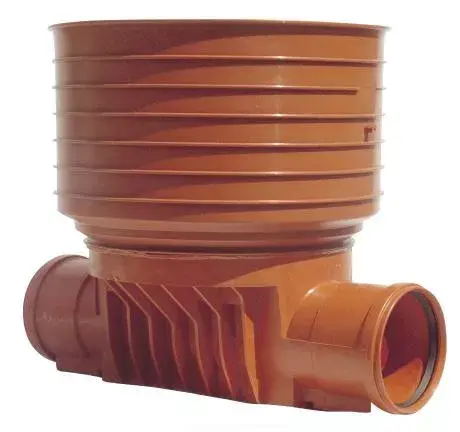

SEWER CHAMBER 425/160 T4 RIGHT PP
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Inner_diameter_di | 425 mm |
| Length (l) | 660 mm |
| Z-measurement h | 566 mm |
| Z-measurement h1 | 92 mm |
| Z-measurement h2 | 97 mm |
| Z-measurement h3 | 117 mm |
| Z-measurement M | 283 mm |
| Z-measurement M1 | 116 mm |
| z1 | 225 mm |
| z2 | 204 mm |
| z3 | 238 mm |
Packaging
| Packaging Quantity 4 | 8 |
|---|
Documents
Technical manuals
Environmental Product Declaration (EPD)
Sheets/Flyers
773 B0000086116
Inspection chambers 315 and 425mm Technical Datasheet
Sheets/Flyers
774 B0000086118
Rense- og inspektionsbrønd 315 og 425 mm, Teknisk datablad
Environmental Product Declaration (EPD)
640 B0000121889
