2D Customer Drawings
283 B0000086837

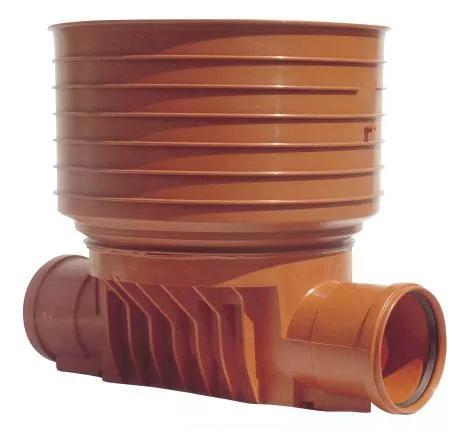

SEWER CHAMBER 425/315 T2 PP
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Inner_diameter_di | 425 mm |
| Length (l) | 1098 mm |
| Z-measurement h | 902 mm |
| Z-measurement h1 | 175 mm |
| Z-measurement h2 | 187 mm |
| Z-measurement h3 | 207 mm |
| Z-measurement M | 283 mm |
| Z-measurement M1 | 204 mm |
| Z-measurement M2 | 207 mm |
| z1 | 485 mm |
| z2 | 202 mm |
| z3 | 445 mm |
Packaging
| Packaging Quantity 4 | 2 |
|---|
Documents
Technical manuals
Environmental Product Declaration (EPD)
Sheets/Flyers
773 B0000086116
Inspection chambers 315 and 425mm Technical Datasheet
Sheets/Flyers
774 B0000086118
Rense- og inspektionsbrønd 315 og 425 mm, Teknisk datablad
Environmental Product Declaration (EPD)
640 B0000121889
