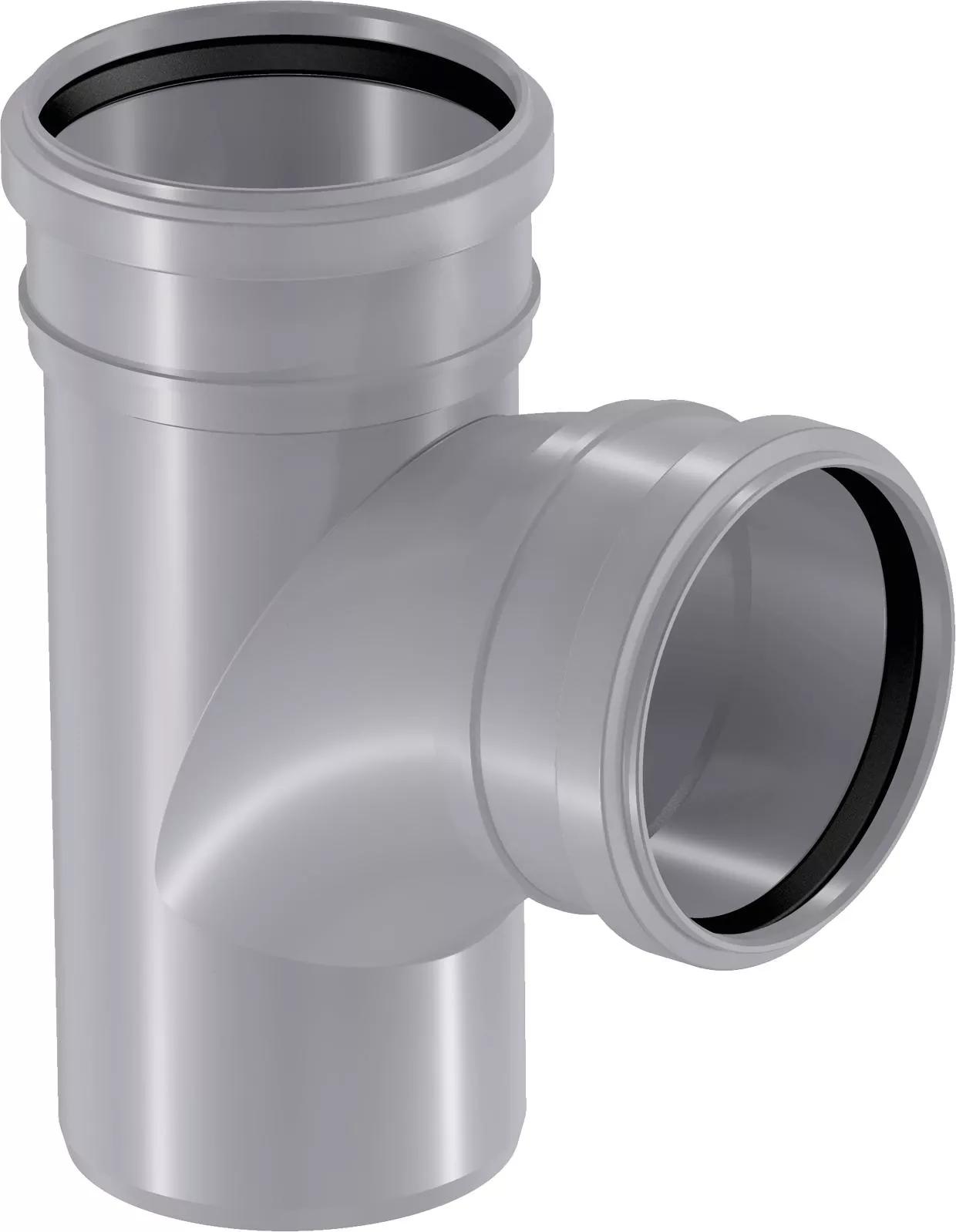

SOIL&WASTE BRANCH 75/75 88,5 DEG GREY SWEPT

SOIL&WASTE BRANCH 75/75 88,5 DEG GREY SWEPT

Part no.1051224

Product data sheet (pdf)

Item details

Technical data

Packaging Quantity 1	10
Packaging Quantity 4	240
Item UOM	Piece
Z-measurement ALPHA	89 °
Z-measurement d	75 mm
Z-measurement d1	75 mm
Z-measurement M	52 mm
Z-measurement M1	52 mm
z1	66 mm
z2	75 mm
z3	32 mm

Documents

Technical manuals
Approval Certificate

2D Customer Drawings

696 B0000090249

Type drawing. HTP haarayhde 88,5 astetta, pyöristetty

Approval Certificate

1 KB0000087401

Environmental Product Declaration (TEPPFA). This EPD includes generic industry average values, it is not explicit for Uponor. Uponor provides a verified company specific EPD when it is available.
