2D Customer Drawings
683 B0000090263

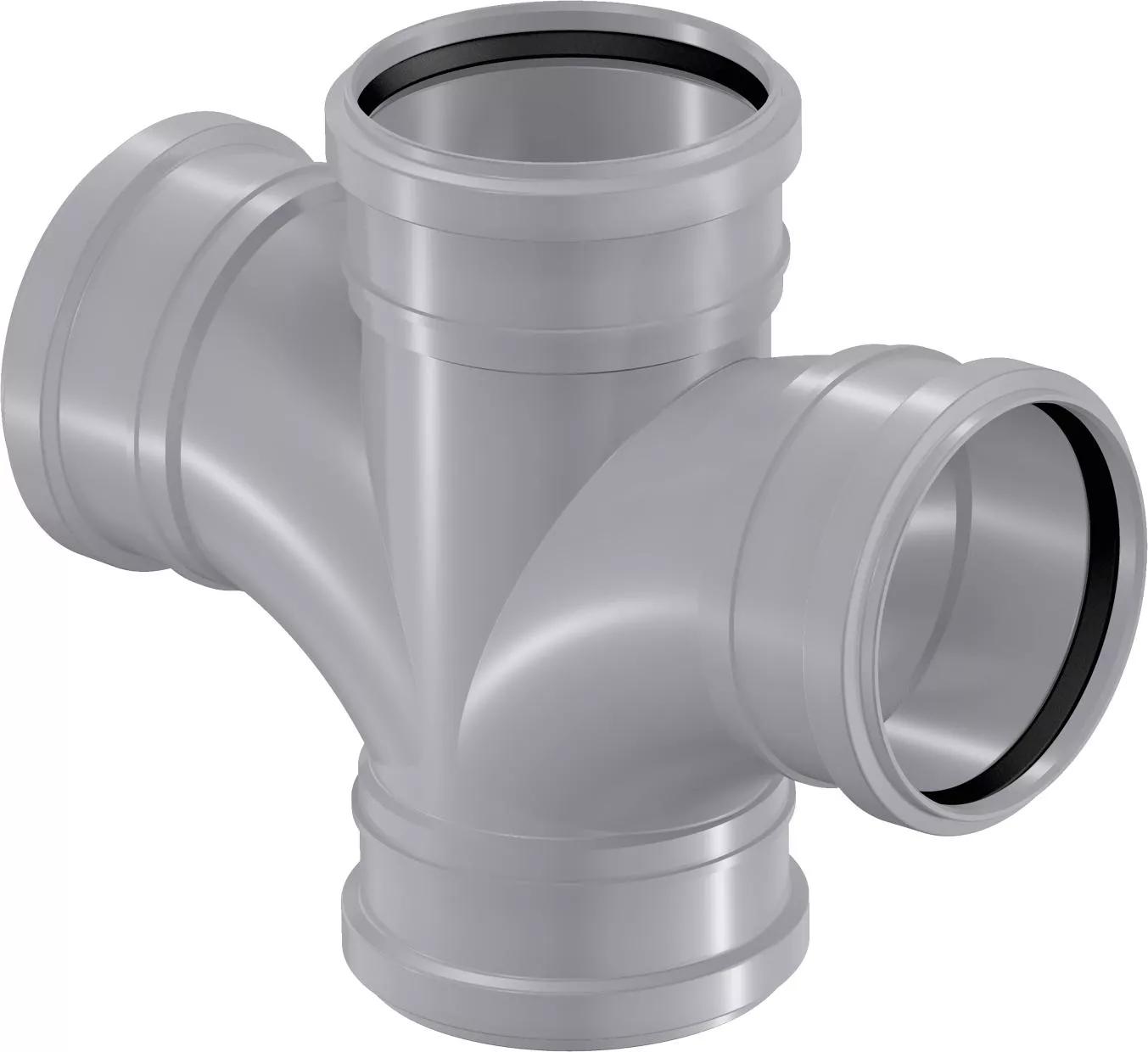

SOIL&WASTE SOCKET DOUBLE BRANCH 110/110 88,5 DEG GREY
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Z-measurement ALPHA | 88.5 ° |
| Z-measurement d | 110 mm |
| Z-measurement d1 | 110 mm |
| Z-measurement d2 | 110 mm |
| Z-measurement M | 59 mm |
| z1 | 84 mm |
| z2 | 94 mm |
| z3 | 57 mm |
Packaging
| Packaging Quantity 1 | 5 |
|---|---|
| Packaging Quantity 4 | 40 |
Documents
Technical manuals
Approval Certificate
Environmental Product Declaration (EPD)
Manuals
5 KB0000123005
Kiinteistöviemäröinti: suunnittelu- ja asennusohje Uponor Decibel- ja HTP-kiinteistöviemärijärjestelmille (FI)
Approval Certificate
1 KB0000087401
Environmental Product Declaration (TEPPFA). This EPD includes generic industry average values, it is not explicit for Uponor. Uponor provides a verified company specific EPD when it is available.
Environmental Product Declaration (EPD)
1 KB0000092809
