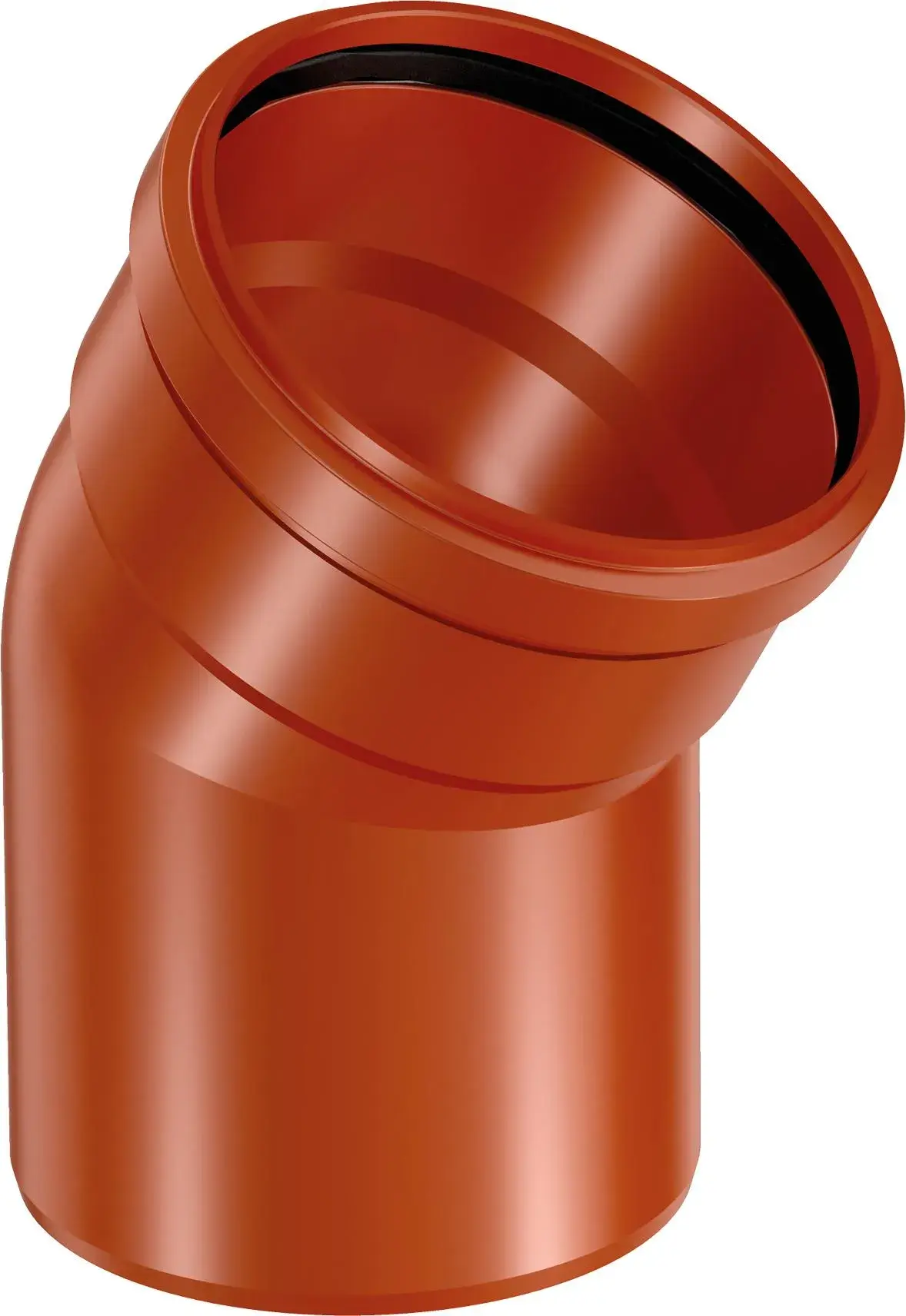

UNDERGROUND DRAINAGE BEND 160 30 DEG PP
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Z-measurement ALPHA | 30 ° |
| Z-measurement d | 160 mm |
| Z-measurement M | 81 mm |
| z1 | 21 mm |
| z2 | 37 mm |
Packaging
| Packaging Quantity 1 | 10 |
|---|---|
| Packaging Quantity 4 | 80 |
