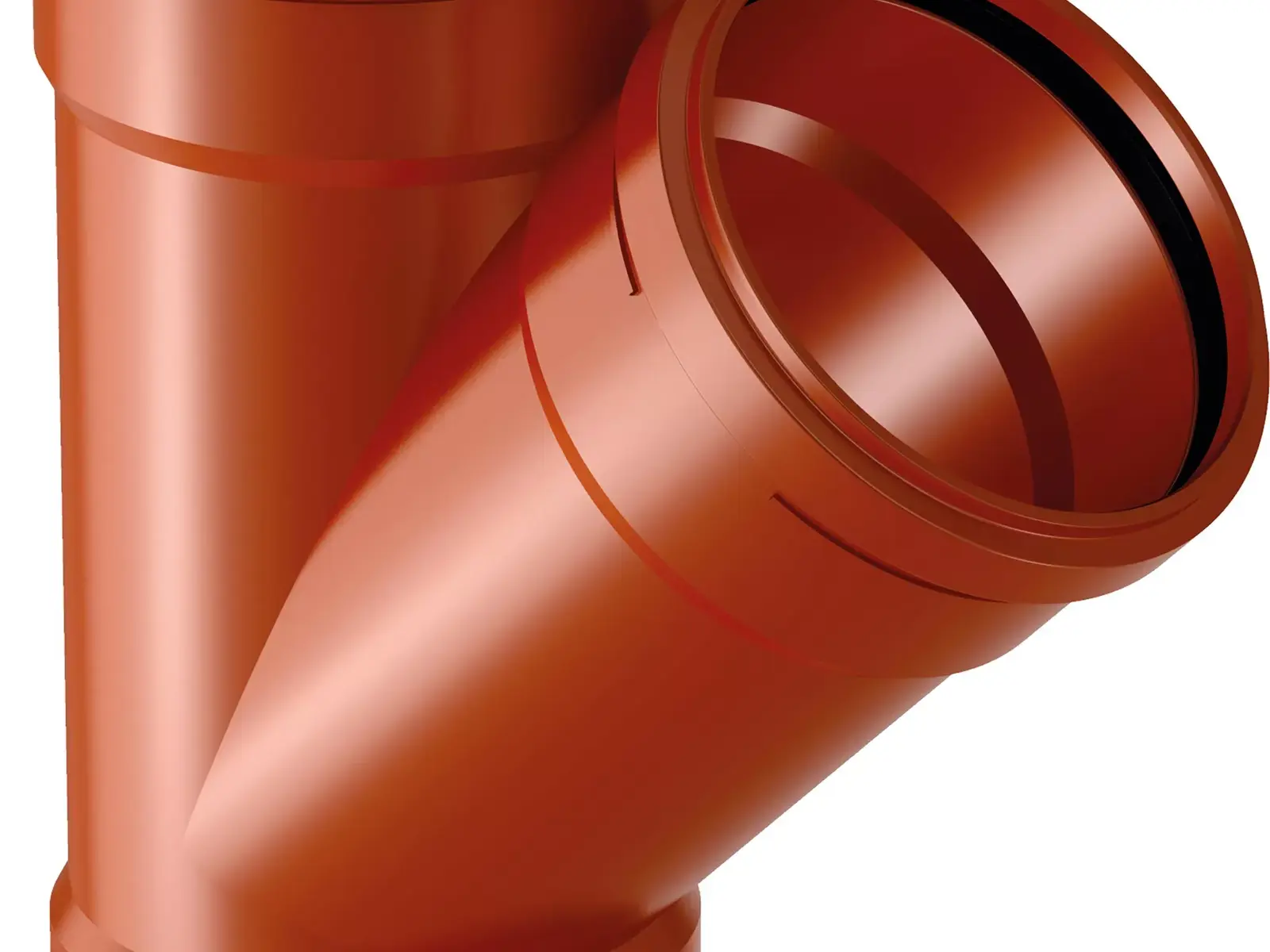

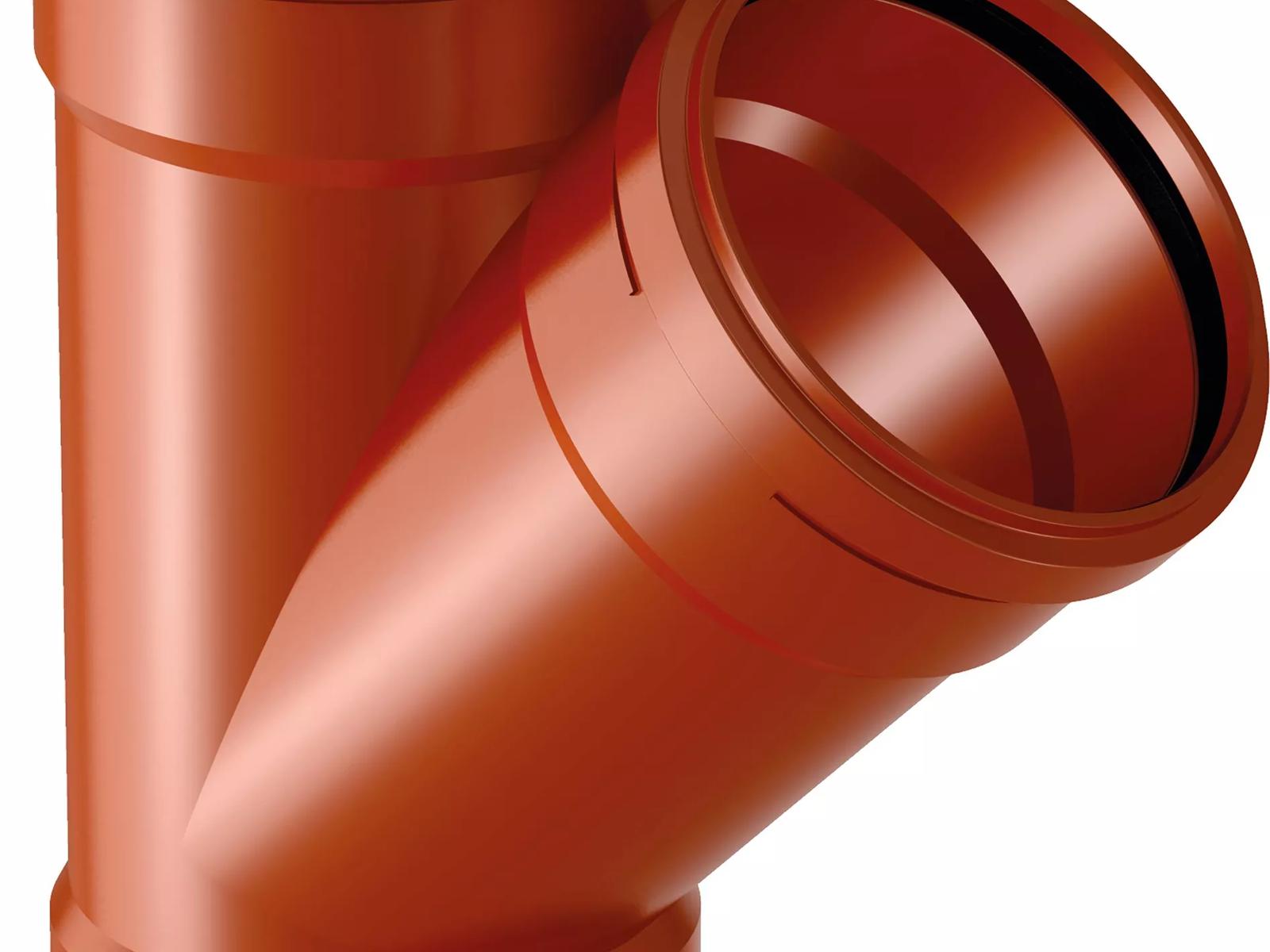

UNDERGROUND DRAINAGE SOCKET BRANCH 160/110 45 DEG PP
Item details
Technical data
| Item UOM | Piece |
|---|---|
| Z-measurement ALPHA | 45 ° |
| Z-measurement d | 160 mm |
| Z-measurement d1 | 110 mm |
| Z-measurement M | 81 mm |
| Z-measurement M1 | 64 mm |
| z1 | 40 mm |
| z2 | 173 mm |
| z3 | 196 mm |
Packaging
| Packaging Quantity 1 | 4 |
|---|---|
| Packaging Quantity 4 | 32 |
