Caso di studio

Perfect for property owners, Trosa, Sweden

Perfect for property owners

For the Trosalund project, four multi-family houses with 77 apartments, there was a requirement for all mechanical systems to be able to connect to a building management system, which Uponor´s Smatrix control system for underfloor heating is.
A building management system, also called building automation system, enables monitoring of the building's electrical and mechanical equipment. For example, you can control all ventilation, lighting, fire, security and heating systems remotely via your computer, which makes the property management of buildings much easier. All configurations and adjustments can also be made remotely without an on-site visit.

Dati del progetto

Trosa, Sweden
Palazzina residenziale
Ingegneria di controllo
Anno di completamento: 2019

Coinvolgimento Uponor

Project with 77 apartments with Smatrix Base PRO controllers in each apartment
Modbus RTU
Other solutions: Uponor Siccus underfloor heating system | Uni Pipe PLUS multilayer pipe for tap water | prefabricated manifold cabinets Ready Port

Building Management system (BMS) in multi-family houses

In 2019, four multi-family homes with 77 apartments in total were installed with Smatrix
Base Pro control centrals with Modbud RTU, along with thermostats in each room. In this video
you will get a closer look at how the system works and what benefits you as a property owner can
get from the system.

Installation

Uponor Smatrix Base PRO is a wired control system for underfloor heating and cooling. Comfort, usability and temperature control of each individual room are achieved through combinations of the various components. Smatrix Base PRO uses the Modbus or KNX protocols to integrate into a building management system. A property manager can then remotely monitor the heating in all apartments. Uponor Smatrix Base PRO contains auto balancing, which saves energy and makes the installation faster, as no adjustments are needed to the underfloor heating.

Södertälje ROT energi AB is a new partner to Uponor. They are experts in building management systems, such as control, regulation and monitoring systems for ventilation heating and cooling systems. Nicke Olsson, installer at Södertälje ROT energy, installed the system for the properties for the Trosalund project. He had never before worked with a supplier delivering the entire plumbing and heating system such as Uponor.

“The project went on smoothly with Uponor because of their commitment and service. Smatrix Base PRO was well suited to that project because other systems in the property, such as ventilation and heat pump, are also based on the Modbus protocol,” Nicke Olsson says.

In every apartment there’s a Smatrix Base PRO Controller installed. It is connected to the recessed Smatrix Base thermostats in each room. In the basement of each property there is a substation (DUC), which is the key in the building management system. The Smatrix Base PRO controller communicates with the DUC unit and enables the system to manage the heating remotely, together with other installations such as ventilation, heat pump, etc.

"A building management system is a very good solution for property managing, due to the reason that a big part of the maintenance can be done via a computer. Configuratations and adjustments can be made remotely, without the need of actually visiting the property, Nicke Olsson continues.

The solution that was of the biggest interest to this project was Uponor’s control system for underfloor heating, which is Smatrix Base PRO. It should also be noted that Uponor Siccus underfloor heating system was used for all apartments, Uponor Uni Pipe multilayer pipe for all tap water piping, and prefabricated manifold cabinets for the whole project. Sandbäckens AB was the installer for all HVAC-solutions for the properties at Trosalund.

“The project went on smoothly with Uponor because of their commitment and service. Smatrix Base PRO was well suited to that project because other systems in the property, such as ventilation and heat pump, are also based on the Modbus protocol,” - Nicke Olsson.

Perfect for property owners

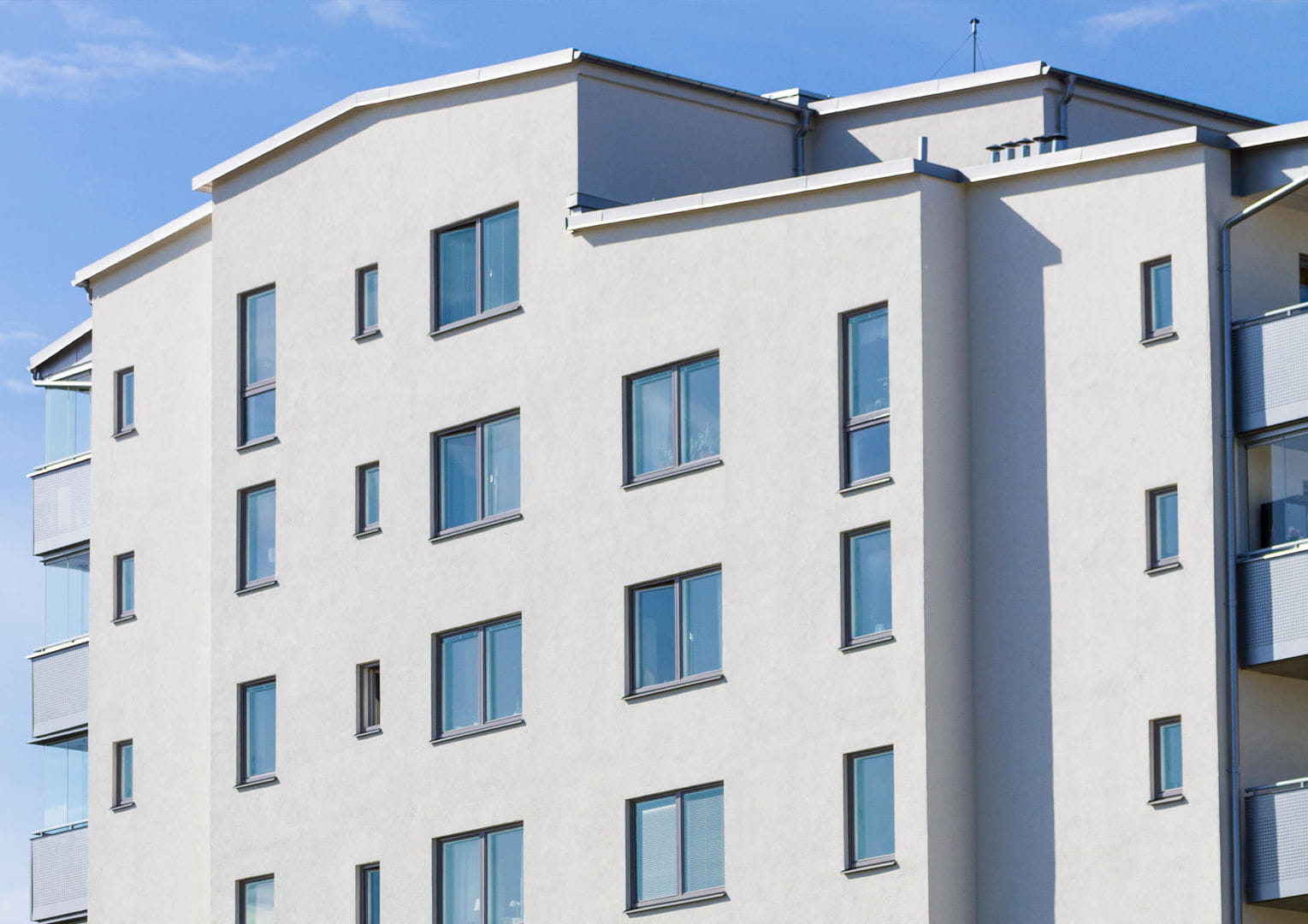

trosalund close up related media desktop 2220x1568

Scheda lavori

Scheda lavori

Nazione
Sweden
Anno di completamento
2019
Tipologia progetto
Nuovo edificio
Tipologia di edifico
Palazzina residenziale
Sistema utilizzato
Siccus 20, Smatrix Base PRO

Partners

Partners

Installer, UFH:Södertälje ROT energi AB
www.rotenergi.se

Installer, drinking water delivery: Sandbäckens AB
www.sandbackens.se
