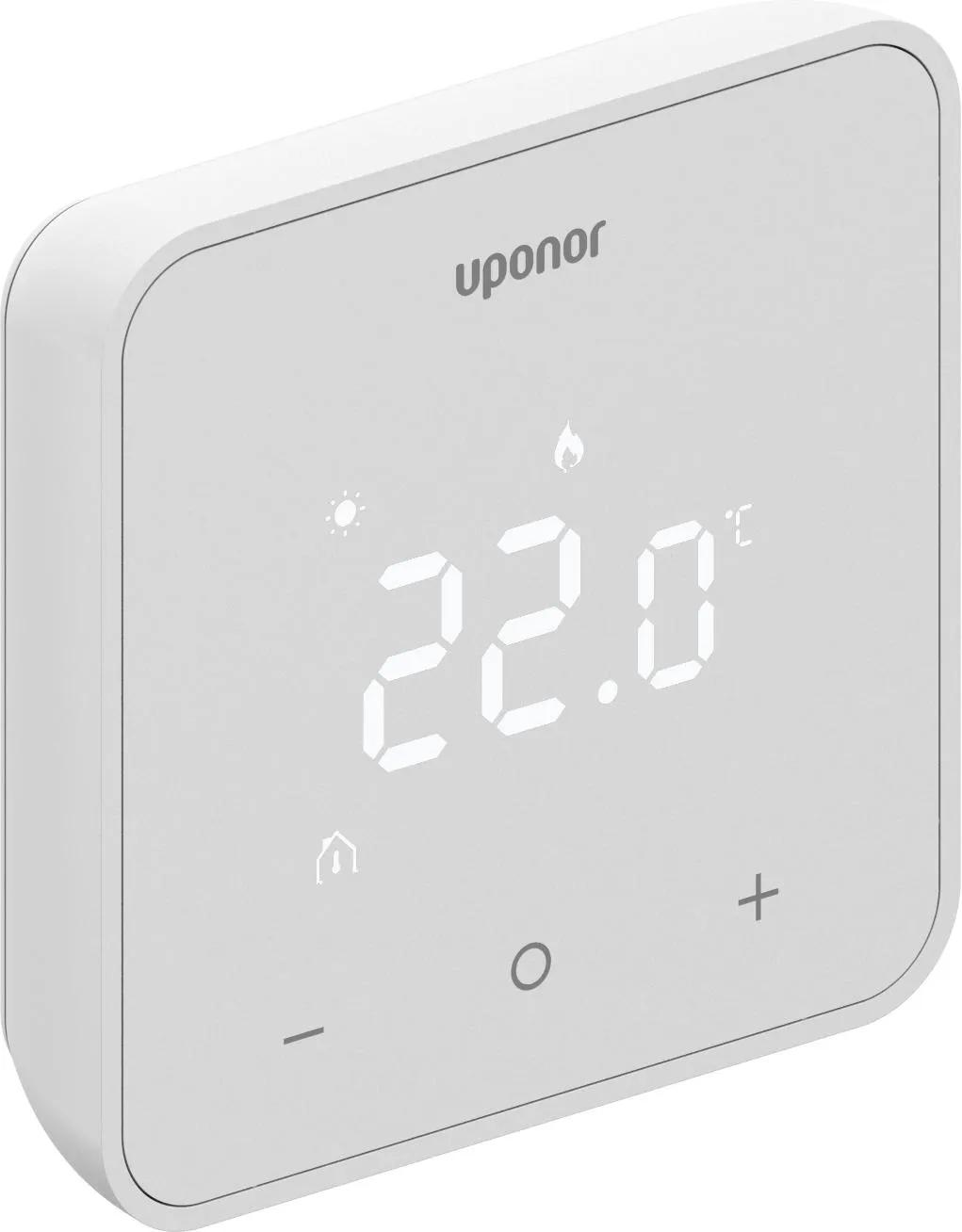

Uponor Smatrix Wave thermostat D+RH T-267
- Measures and displays the room temperature and relative humidity- Compatible with controllers Smatrix Wave Pulse (X-265) and Smatrix Wave (X-165)- Color: white RAL9016- Functions:- Capacitive keys on the front- Heating or cooling demand indication- RH measured value- Comfort / ECO indication- ECO setback modification- Cooling allowed function (room by room)- Displays celsius or fahrenheit- Operating modes: room temperature (RT), internal with floor max/min (RFT), remote sensor (RS), remote outdoor (RO)- Low battery indication- Room Temperature calibration- Optional: floor, remote or outdoor sensor can be connected- Consisting of:- Uponor Smatrix Wave thermostat D+RH T-267- 2x AAA batteries- Thermometer stand- Mounting material
Item details
Documents
Technical manuals
EU declaration of conformity
Operation Manual
455 B1145578
Operation Manual Smatrix Wave thermostat D+RH T-267 (1145578)
Application information
Specification
- modular system includes controller, expansion module, com module with app for mobile devices, relay modules, thermostats and sensors- wireless connections with Smatrix Wave thermostats- up tp 8 room thermostats and 10 actuators (24V) per controller- up to 14 room thermostats and 16 actuators (24V) per controller with expansion module- up to 4 controllers in one system, wireless connected- pump and boiler relays (output) with every controller- 4 outputs in total for systems with relay module M-161, configurable via app- heating/cooling switch input- heating/cooling change with thermostat T-267- relative humidity control with thermostats and sensors- combines underfloor heating/cooling and ceiling cooling control- app for mobile devices with installation wizard and intuitive user interface- on-site access with Bluetooth BLE for commissioning and service- generating installation configurations for repeated use in the app- remote access via app for internet connected systems- Smatrix AI for energy savings in installations with heat pumps- schedule settings, via app or programmable thermostat T-168- comfort settings- shut-off function for the seasonal transitional period- valve and pump exercise- fast automatic software updates- supply diagnostics for internet connected systems- color LEDs on controller providing status information- operating voltage of controller 230V- low voltage actuators: 24VAC /0.2A (0.4A peak)
Application
- wireless room temperature control for radiant heating and cooling- set point range: +5°C ... +35°C
Certification
- CE, UKCA
