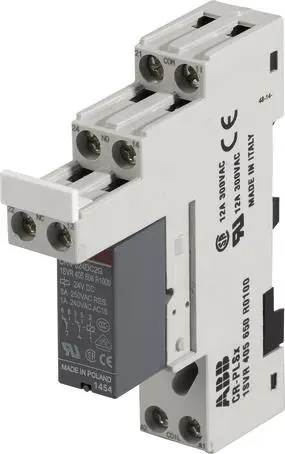

Uponor Smatrix relay module H/C M-1XX

- interface to a heating/cooling source
- switch over H/C between Uponor Smatrix and H/C source
- incl. socket for DIN rail mounting, manual, mounting material, wall box
- contact: 2 change-over (CO)
- Ucoil: 230VAC
- test voltage: 5kV
- protection class: IP40
- switching voltage: 380VAC, 125VDC
- switching current: 5A@250VAC, 5A@30VDC
- contact material: Ag+Au plated
- temperature range: -40°C...+70°C

Item details

1083577 / - / -

Uponor Smatrix relay module H/C M-1XX 230V

Documents

Technical manuals
EU declaration of conformity

Product Information

564 B1068132

Product Information Smatrix actuator compatibility (1068132)

Product Information

2 KB1087488

Product Information Smatrix regulatory conformance (1087488)

Technical information

12 KB1116265

Technical Information Smatrix (1116265)

EU declaration of conformity

1 KB1132746

Uponor DoC SMATRIX 1071651 INT (1132746)

Application information

Specification

- Pulse com module R-208 is compatible with Base controller Pulse X-245 and Wave controller Pulse X-265
- functions of the Smatrix Pulse system with Pulse com module R-208 are , e.g. up to 4 controllers in one system, relative humidity control, ceiling cooling control, app for mobile devices with installation wizard and intuitive user interface, on-site access for commissioning and service, remote access via app for internet connected systems *, Smatrix AI for energy savings in installations with heat pumps *
, timer programming with app *, comfort settings, automatic software updates * (* function requires internet connected system)

- Relay module H/C (variants 230 VAC / 24 VDC) is compatible with Smatrix Pulse and Smatrix Base Pro.

Application

- Room temperature control for radiant heating and
cooling

- App for mobile devices and cloud connectivity for Smatrix Pulse systems. Enables multi-controller installations, comfort settings, Smatrix AI, and many more
- Device interface to the heating/cooling source for changeover control
