GF JRGUMAT thermostatic mixing valve 3400 40°C
- Temperature: max. 90°C- Nominal pressure: PN10- Factory setting: 40°C (30-45°C)- Material: gunmetal- Connection: male thread
Item details
1149509 / - / -
GF JRGUMAT thermostatic mixing valve 3400 40°C DN15
1149503 / - / -
GF JRGUMAT thermostatic mixing valve 3400 40°C DN20
1149492 / - / -
GF JRGUMAT thermostatic mixing valve 3400 40°C DN25
1149482 / - / -
GF JRGUMAT thermostatic mixing valve 3400 40°C DN32
1149472 / - / -
GF JRGUMAT thermostatic mixing valve 3400 40°C DN40
Application information
Specification
- Dimension range DN15 – DN80- Different temperature ranges (20-80°C) and factory settings (e.g. 25, 40, 55 and 70°C)
Application
- Potable water systems with requirements for constant mixed water temperature - Central and decentralized hot water mixing for single- and multi-family homes, hospitality buildings and sports facilities- Excess-temperature protection in systems using alternative forms of energy such as solar systems

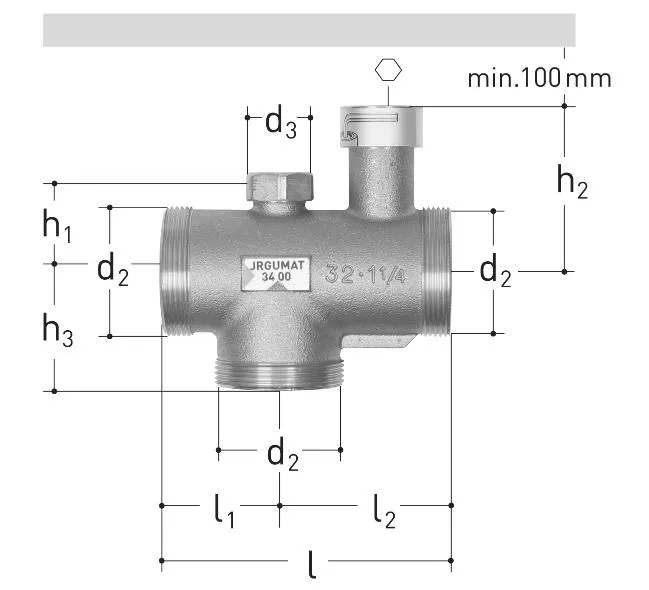

Product drawings
