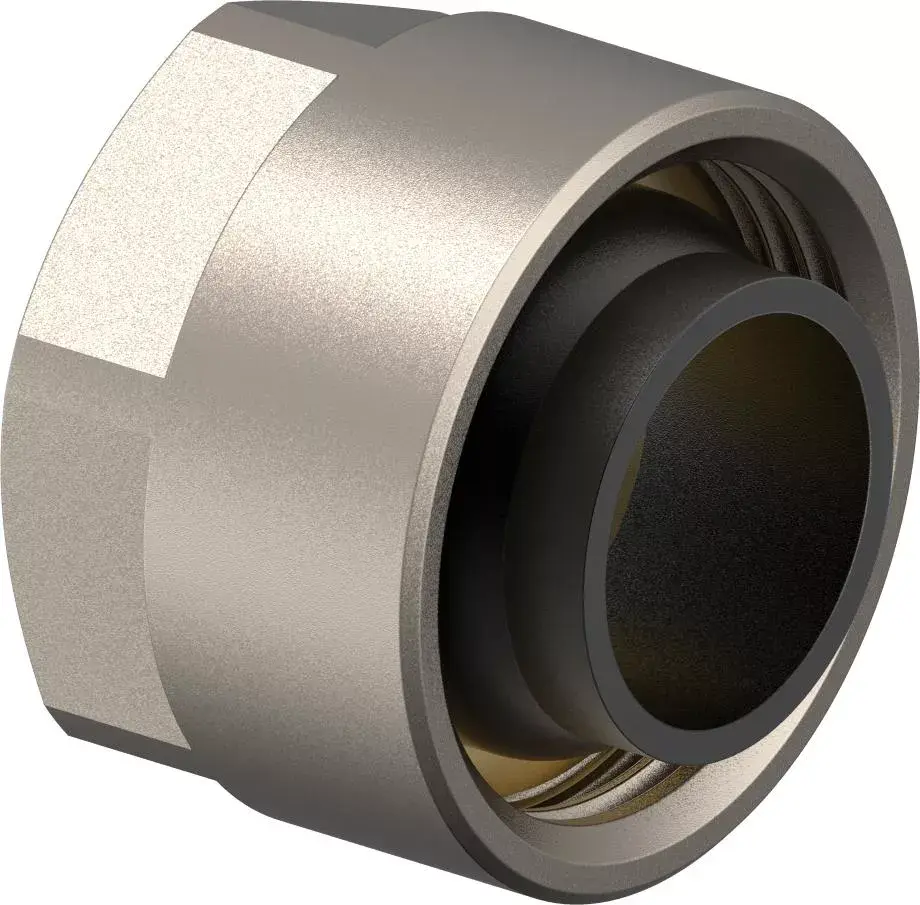

Uponor Smart Radi adapter

- With 3/4FT eurocone, elastically sealing, for the connection of the coated copper pipe 15 x 1 mm of the Uponor press connection elbow, Uponor press connection tee to the tap battery, radiator or Uponor radiator connection adapter with 3/4FT eurocone.
- Coated brass union nut, brass clamp ring blank and sealing cone made of EPDM.
- Ribbed union nut with wrench size 27.

Item details

1013830 / - / -

Uponor Smart Radi adapter 15CU-3/4" Euro

Documents

Technical manuals

Installation Report

116 B1120119

Installation Report MLC leak test report TW water (1120119)

Installation Report

127 B1120120

Installation Report MLC flushing protocol TW water (1120120)

Installation Report

110 B1120118

Installation Report MLC leak test report TW air-gas (1120118)

Application information

Specification

- Suitable for coated copper pipes (15 × 1 mm), MLCP 16 × 2 mm, PE‑Xa and MLC connection lines
- Components made of tin‑plated brass, coated brass, coated copper, polystyrene, and PP
- Compatible with S‑Press, Q&E, clamp compression adapters and Eurocone interfaces

If not different mentionned:
- Fire‑rated cover plates (e.g., EN 13501‑1 classes B2 or E depending on model)
- Q&E rings must be ordered separately if not different mentioned

Application

- Connecting radiators to Uponor MLCP or Uni Pipe PLUS heating circuits
- Providing stable, aligned flow and return lines using dedicated adapters and connection boxes
- Interfacing with radiator valves via system‑specific compression sets (Danfoss, Heimeier, Oventrop)
- Protecting and guiding pipes at wall or floor penetrations with cover plates and protective sleeves
