Uponor Aqua Pipe white opaque

- Material: PE-Xa
- Watermark approved
- Operating pressure 10 bar
- In coils

Uponor Aqua Pipe white opaque

Item details

Uponor Aqua Pipe white opaque 16x2,2mm 100m
Uponor Aqua Pipe white opaque 20x2,8mm 100m
Uponor Aqua Pipe white opaque 25x3,5mm 100m

Documents

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)

DGNB Declaration
316 B1141480

UPONOR DGNB AQUA PeX-a Rohre (1141480)

Application information

Specification

- Pipes manufactured from peroxide cross-linked polyethylene (PE-Xa) in accordance with EN ISO 15875
- Application class 2 – hot water supply
- Fire classification E according to DIN EN 13501-1
- Operating pressure up to 6 bar (PN6), depending on variant
- Available as plain pipe or pipe in protective conduit

Application

- Tap water installations for hot and cold water distribution
- Permanent operating temperature from 0 °C to 70 °C
- Short-term malfunction temperature up to 95 °C for a total of 100 hours over the service life

Product drawings

1126786_ZMD
1126786
160 B

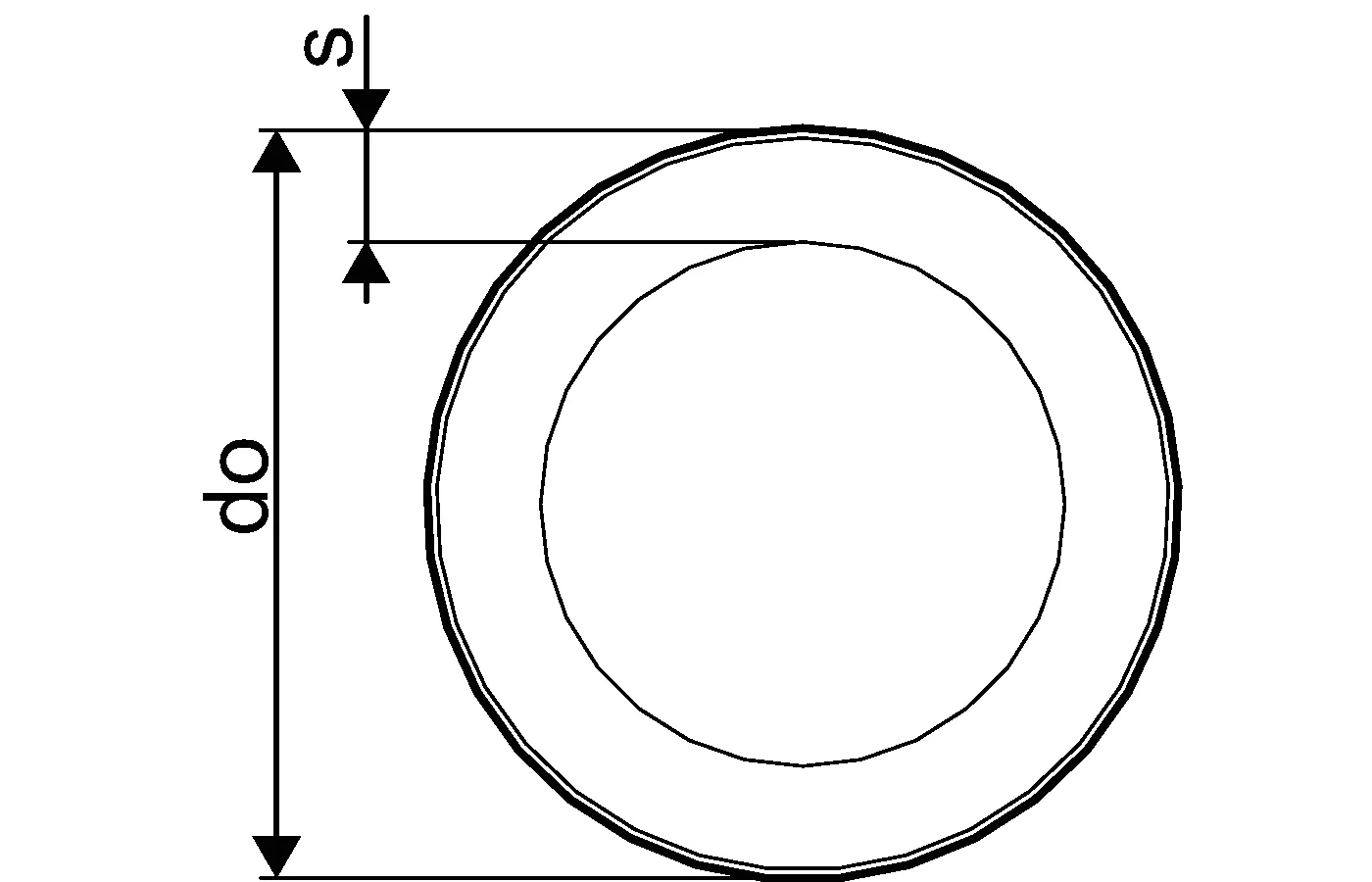

1126787_ZMD
1126787
160 B
1126788_ZMD
1126788
160 B

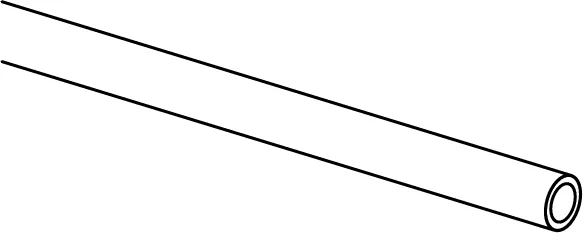

1126786_LAB
1126786
27 B
1126787_LAB
1126787
27 B
1126788_LAB
1126788
27 B

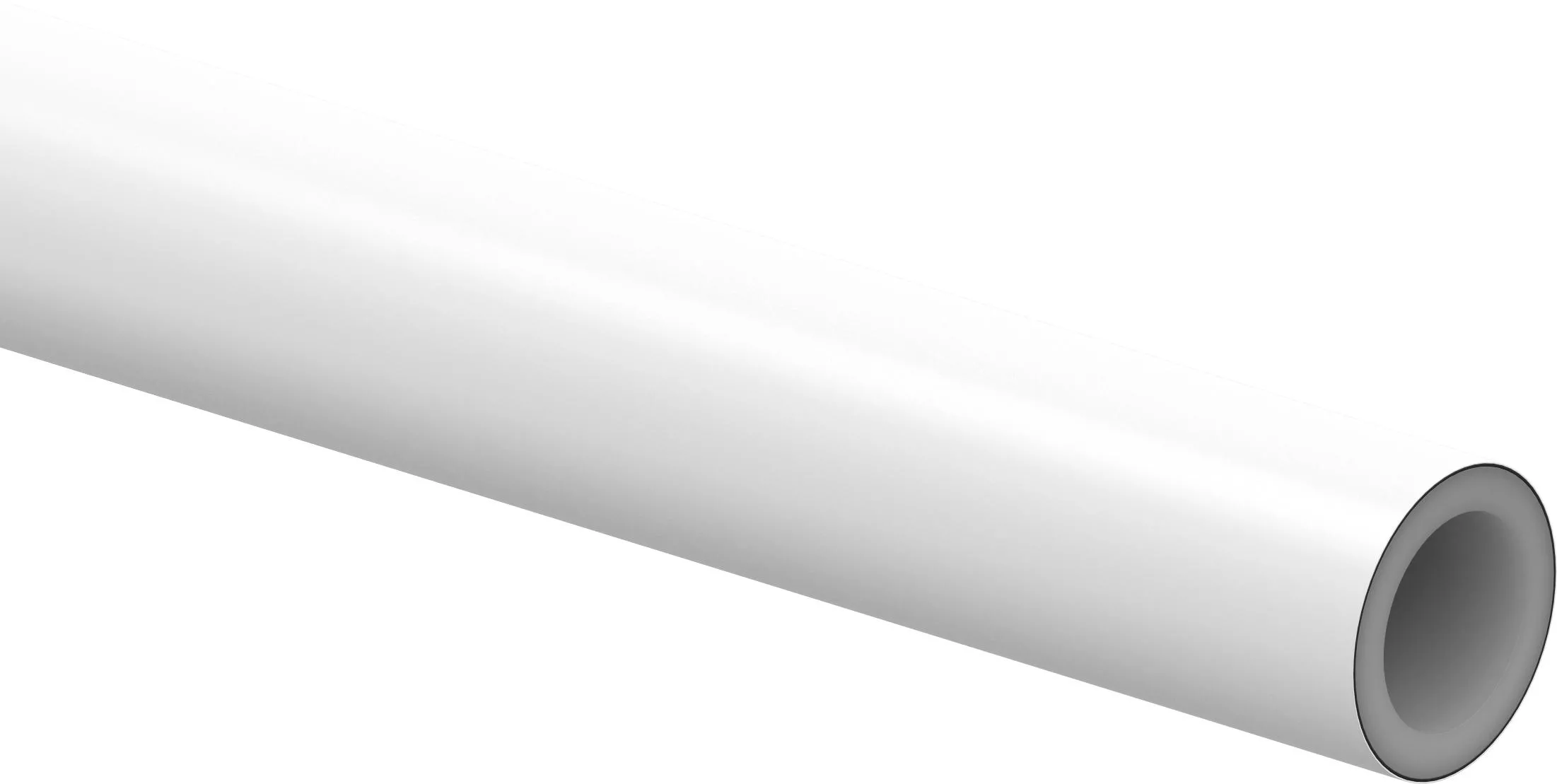

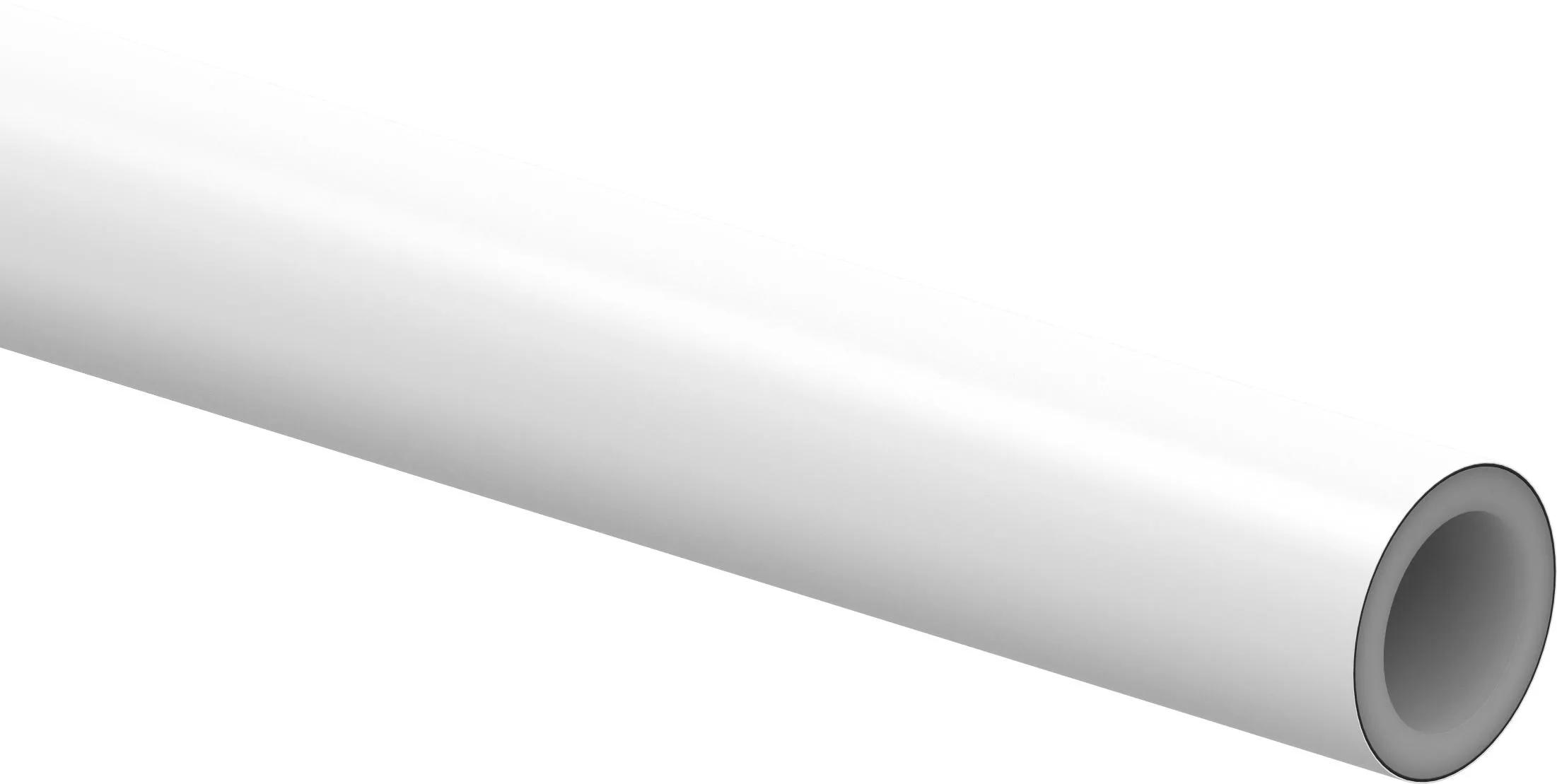

1126786_REN
1126786
62 B
1126787_REN
1126787
62 B
1126788_REN
1126788
62 B
