GF Silenta premium elbow 67,5deg

Light gray, PP-material with inorganic filler, according to EN 1451

GF Silenta premium elbow 67,5deg

Item details

GF Silenta premium elbow 67,5deg 58mm
GF Silenta premium elbow 67,5deg 78mm
GF Silenta premium elbow 67,5deg 90mm
GF Silenta premium elbow 67,5deg 110mm

Documents

Technical information
7 KB1187135

GF BFS TI Silenta premium - Silenta 3A - HT-PP (1187135)

Installation Manual
3 KB1187772

IM Silenta INT 1187772 v1

Application information

Specification

- Three-layer polypropylene pipe system manufactured according to EN 1451
- Sound-insulated construction with enhanced mechanical strength
- Pipe diameter range: DN 58 to DN 200
- High chemical and temperature resistance
- Complete system including pipes, fittings and accessories

Application

- Residential buildings and apartment complexes
- Hotels, hospitals, schools and office buildings
- Sustainable and green buildings
- Industrial facilities (short and long-term wastewater use)
- Domestic sewage systems
- Wastewater from kitchens, bathrooms, laundry rooms and sanitary areas

Product drawings

1146278_ZMD
1146278
31 B
1146287_ZMD
1146287
31 B
1146297_ZMD
1146297
31 B

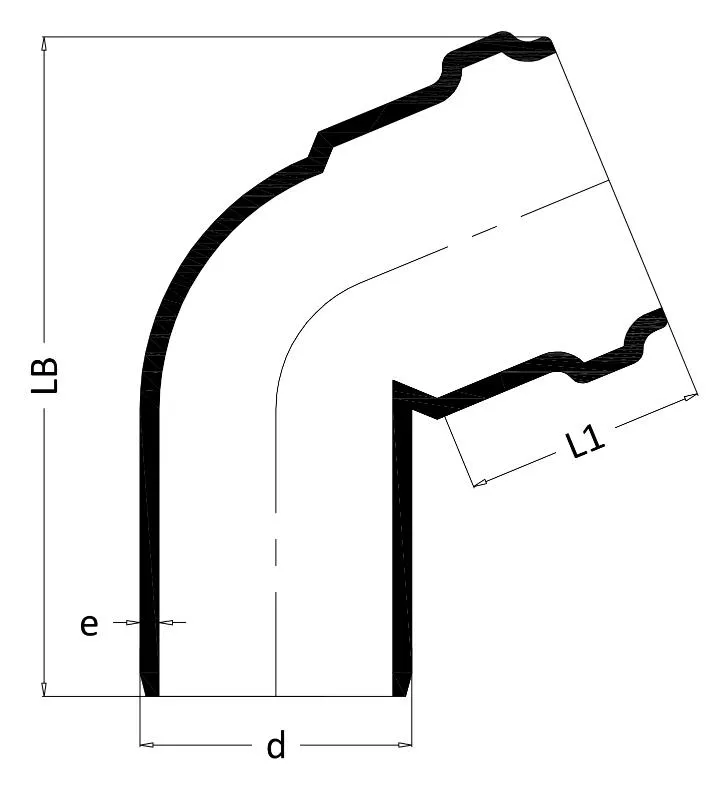

1146307_ZMD
1146307
31 B

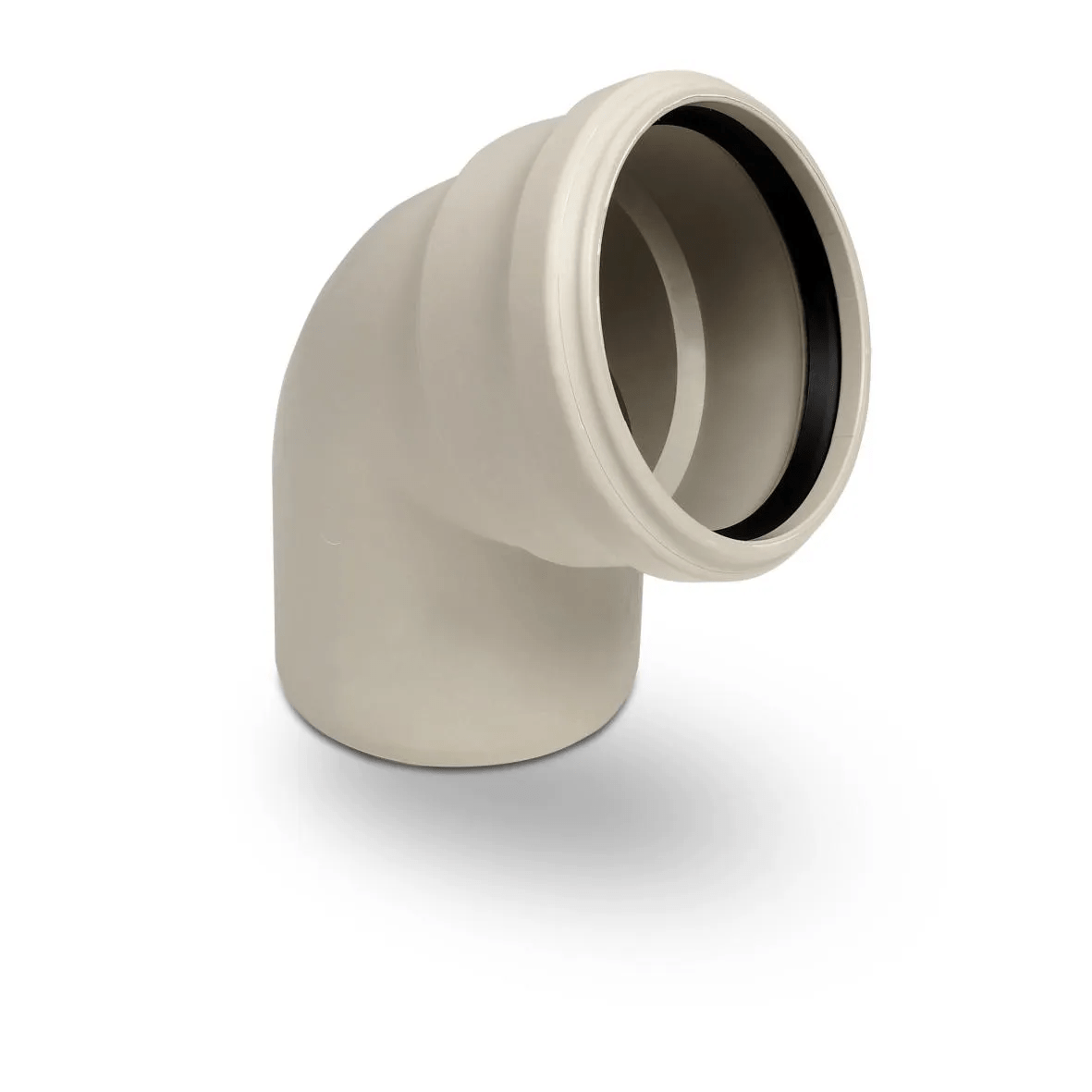

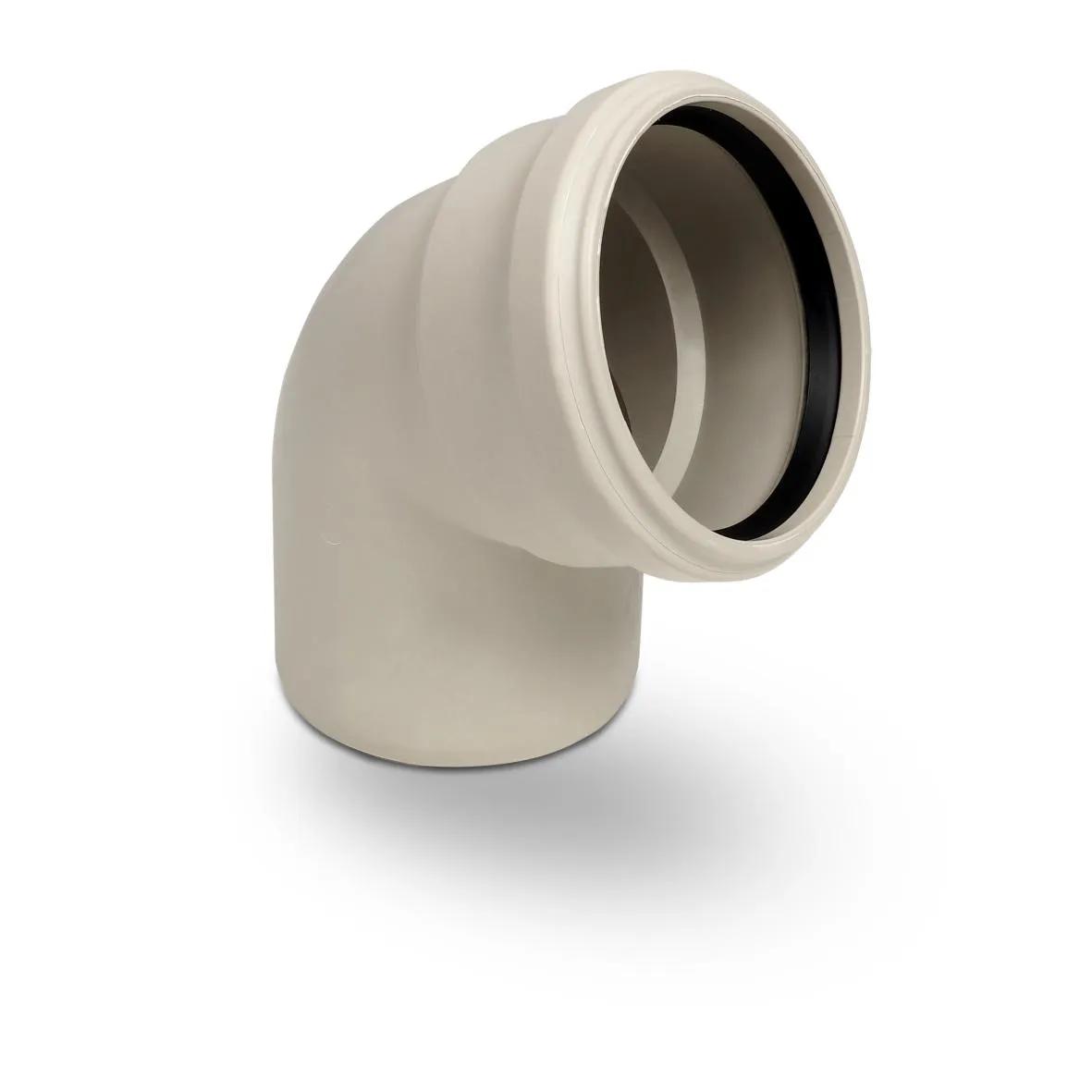

1146278_PHO
1146278_PHO
41 B
1146287_PHO
1146287_PHO
41 B
1146297_PHO
1146297_PHO
41 B

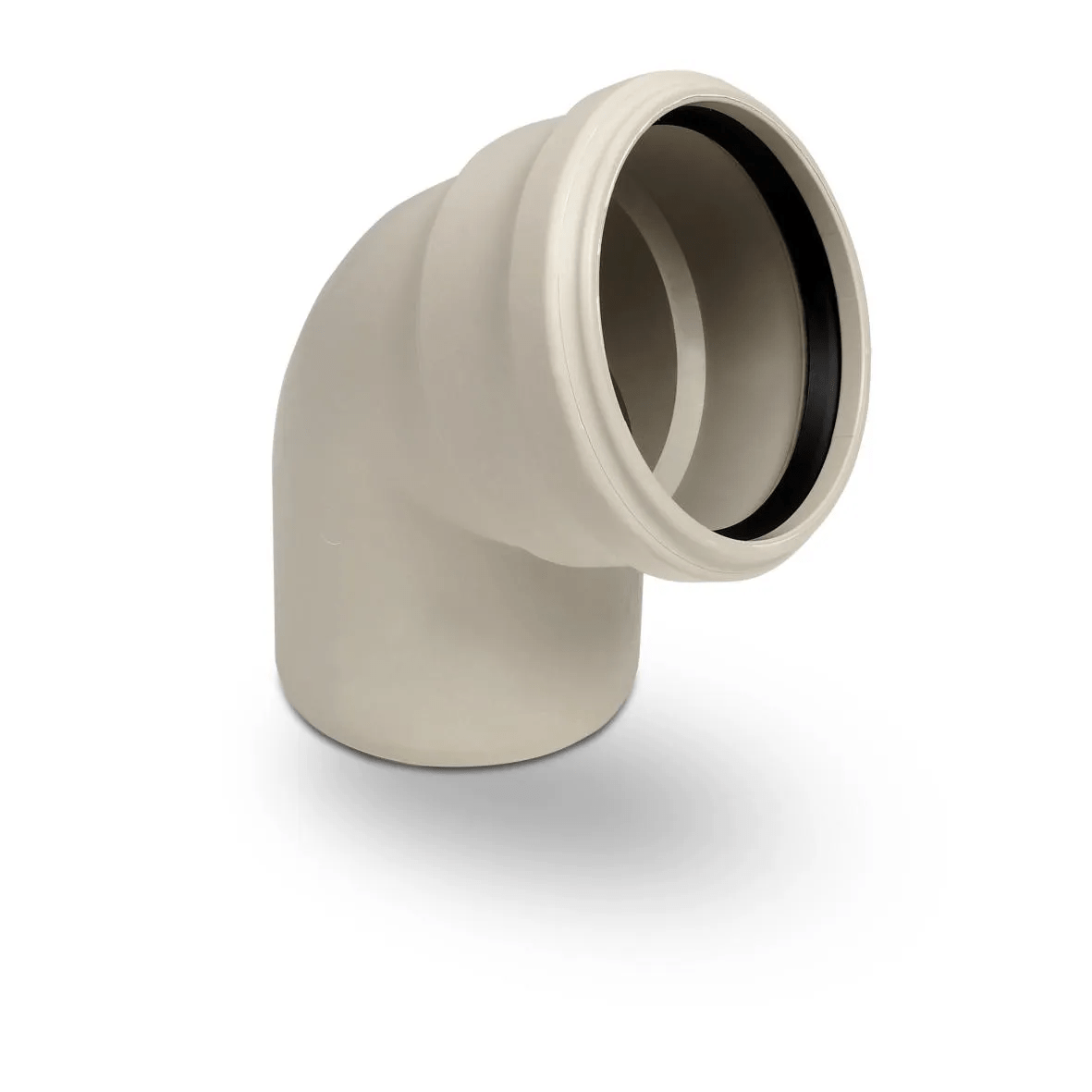

1146307_PHO
