Drinking water delivery

Multilayer pipe system

Drinking water installation with Uni Pipe PLUS

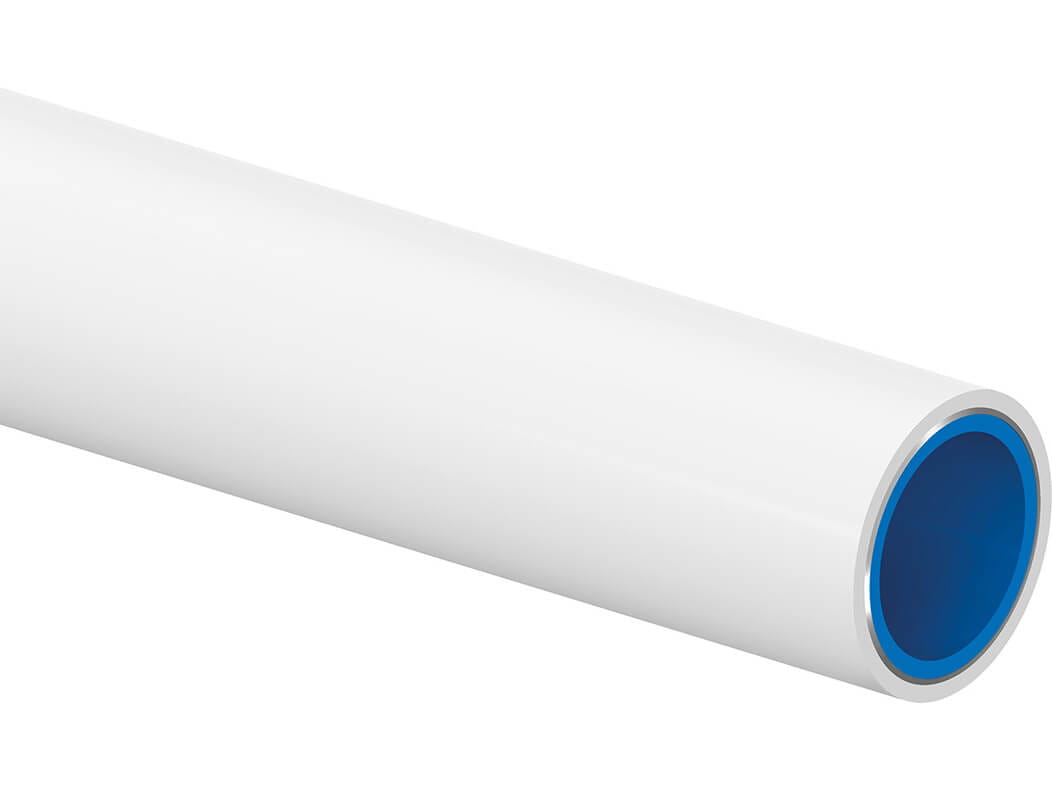

With our innovative SACP (seamless aluminium composite pipe) technology, we have created a completely new product group for tap water solutions; the world's first composite pipe with a seamlessly extruded aluminium layer - called Uni Pipe PLUS.

Uni Pipe PLUS does not have a weld joint. This drinking water multilayer pipe (Uponor MLCP) will support your construction project with fast and efficient installations. The Uponor multilayer pipe system has always the right pipe and fittings solution.
Enhanced performance and safety

  • Uni Pipe PLUS as straight lengths and coils
  • More flexible and bendable than current multilayer pipes
  • Saves time during installation
  • Less installation components reduce costs
  • Uni pipe PLUS straight lengths feature a special aluminium layer that is more rigid than conventional multilayer composite pipes
  • Provides a visually attractive, on-wall mounting solution

New products Uponor S-Press PLUS sliding coupling 16 - 40 mm



Application areas:

Tap water installation

Radiator connection

Specification:

Multilayer Pipes

  • Uni Pipe PLUS 16 - 32 mm
  • MLC 40 - 110 mm
Fittings:

  • S-Press PLUS 16 - 32 mm
  • RTM 16 - 32 mm
  • S-Press 40 - 75 mm
  • Modular riser fittings 63 - 110 mm

Uponor multilayer pipe system

multilayer pipe portfolio

A composite pipe in both small and large dimensions

  • Available in dimension 16 - 110 mm
  • 100 % oxygen diffusion tight multilayer pipe and corrosion resistant
  • Easy handling
  • Low weight
  • High inherent stability and bend flexibility
  • Low linear expansion
  • Excellent hydrostatic stress performance
  • Low pressure drop in the pipes due to large internal dimensions

Uni Pipe PLUS - for fast installations

  • Up to 40 % narrower bending radius compared to conventional multilayer pipes
  • 0 % adjustments - the pipe retains the shape perfectly after bending
  • Up to 15 % less fittings thanks to the higher bending ability
  • 100 % backward compatible with Uponor's MLC pipes and S-Press connectors
  • Hygienic pipes that meet drinking water requirements and guidelines
uponor uni pipe plus

Uponor Metallic Pipe PLUS – for fast and clean installations

Metallic Pipe Column 33 66 image Desktop.jpg
  • Metallic feel and appearance
  • Hygienic
  • Maximum form stability and bending flexibility
  • Low weight - easy to handle
  • 100 % oxygen and corrosion resistant
  • Highest level of safety without welding joint
Uni Pipe Plus Multilayer pipe
  • Check out this video for an introduction to Uponor Uni Pipe Plus
Creating connections in drywall
  • Shows connections in drywall with the Uponor Smart Aqua wall duct S-Press
  • Example of wooden and plasterboard construction

Uponor S-Press fittings

Uponor pipe fittings related to the MLCP system

Look up or download brochures for the multilayer pipe system

Uponor plumbing systems and hygiene installation

Uponor plumbing systems and hygiene installation

Salesfolder

PDF 19 MB
Uponor S Press PLUS sales folder

Uponor S Press PLUS sales folder

Build on Uponor with S-Press PLUS

PDF 680 KB
Uponor S Press PLUS Technical data sheet

Uponor S Press PLUS Technical data sheet

Features, mounting instructions, portfolio, applications, zeta values, pressure loss diagramm

PDF 821 KB
Uponor S Press PLUS composite fittings dimensions 63 and 75 mm

Uponor S Press PLUS composite fittings dimensions 63 and 75 mm

Salesfolder

PDF 19 MB
Uponor S Press composite 63-75 PPSU

Uponor S Press composite 63-75 PPSU

Product information

PDF 840 KB
Uponor metallic pipe plus 16-20 mm

Uponor metallic pipe plus 16-20 mm

Installation manual

PDF 583 KB

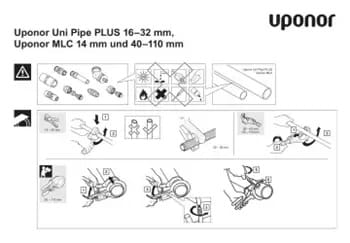

Uponor installation manual

Uponor installation manual

Uni Pipe PLUS 16 till 32 mm and MLC 14 mm and 40 till 110 mm

PDF 1 MB
Uponor S-Press PLUS sliding coupling dimension 16 till 40 mm

Uponor S-Press PLUS sliding coupling dimension 16 till 40 mm

Product information

PDF 1 MB

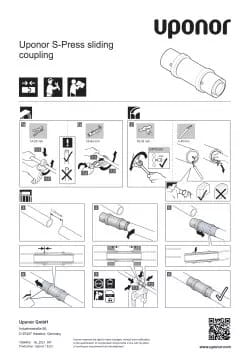

Uponor S-Press sliding coupling

Uponor S-Press sliding coupling

Installation manual

PDF 378 KB
Uponor installation manual

Uponor installation manual

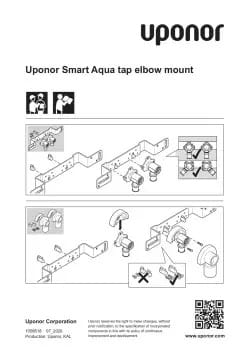

Smart Aqua Tap elbow mount

PDF 181 KB

Multilayer pipe system

Uni Pipe PLUS

Seamless aluminium composite pipe.

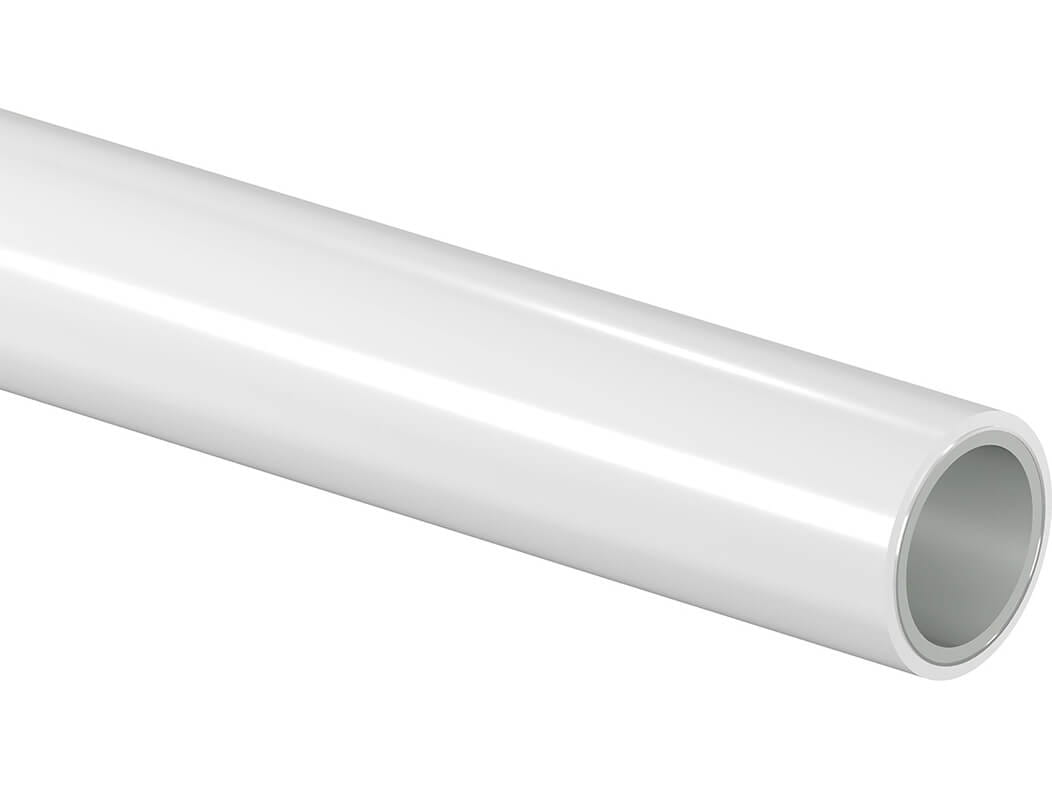

MLCP pipe

Standard multilayer composite pipe.

S-Press PLUS

The latest press fitting generation.

Uponor S-Press PLUS composite fittings

The latest press fitting generation for composite fittings.

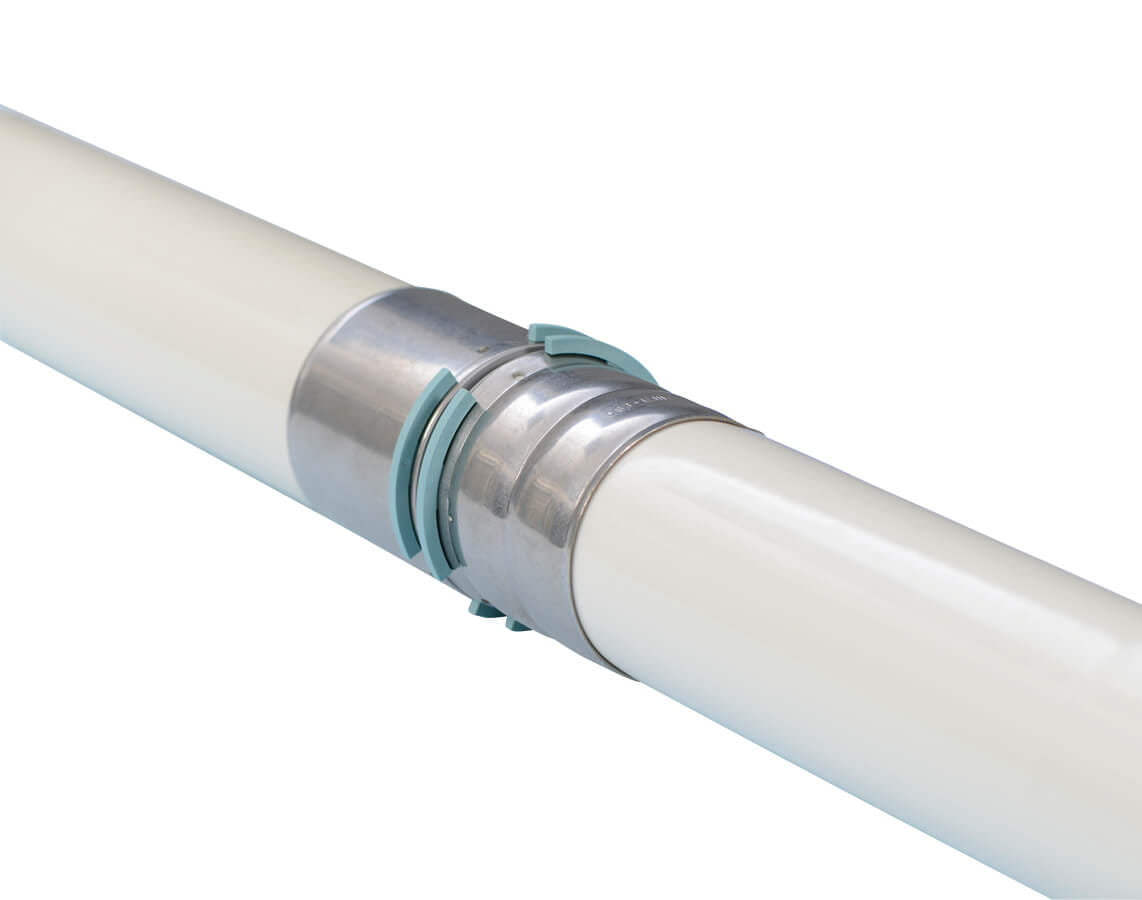

S-Press 40 - 75

Composite fittings for bigger dimensions.

S Press sliding coupling 16 - 40

Connect fixed Uponor MLC pipes, adjustable distance by up to 50 mm

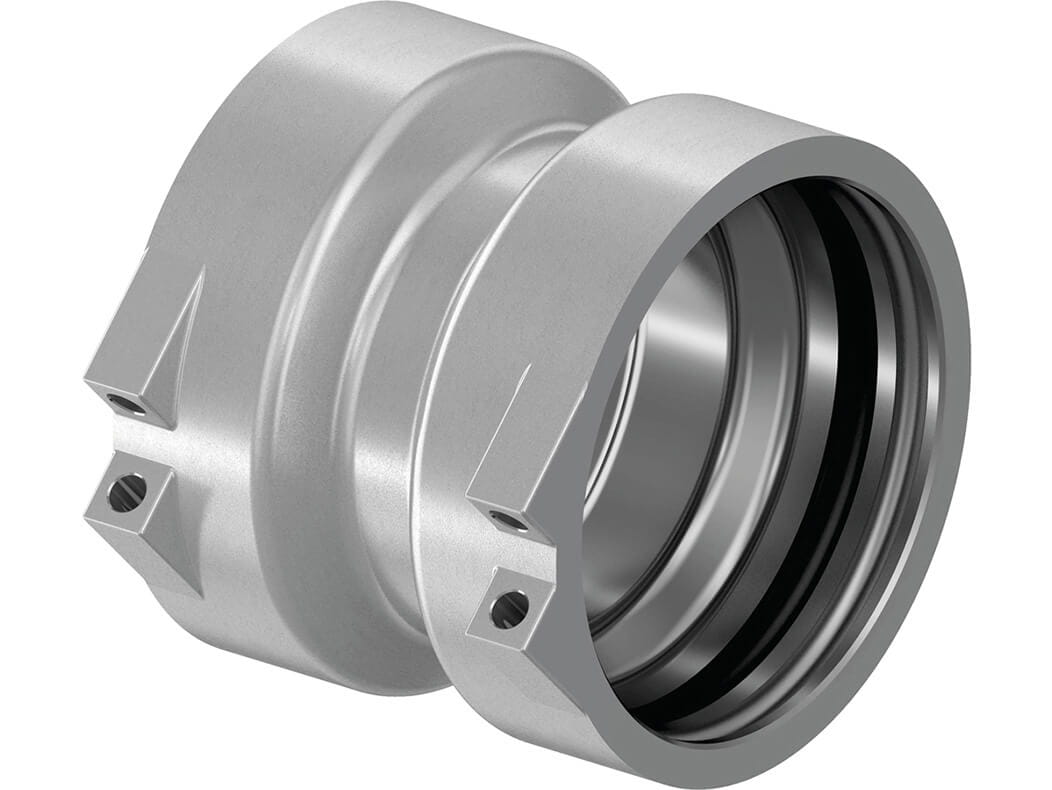

Uponor RS

Mosular riser fittings for dimension 63 - 110 mm.

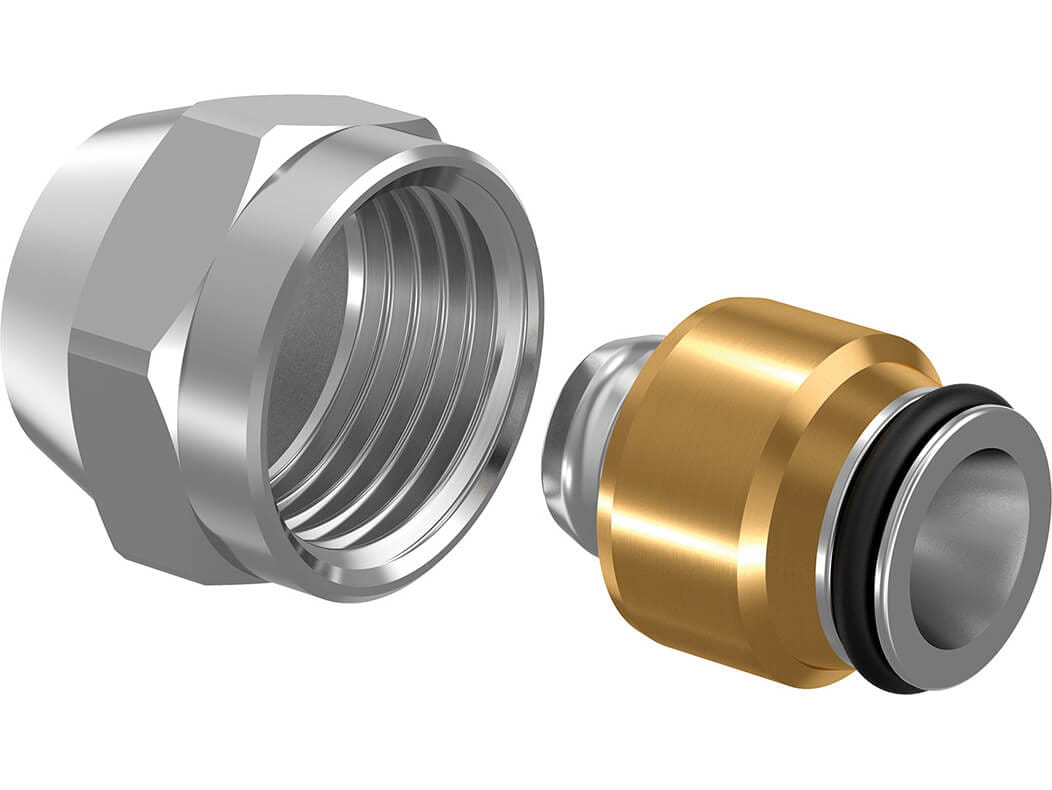

Uni C & X screw connection

Compression fittings for connection of Uni Pipe PLUS and MLC pipes.

RTM fittings

Tool free fittings.
