Drinking water delivery

PEX pipe system with Q&E




Faster and more reliable installations

Uponor Q&E Rapid Seal Heads and Q&E expander tool M12 Fuel






We have succeeded in making Q&E (Quick & Easy) installation technique even better. Once again we combined our plumbing knowledge and experience as the world’s largest PEX producer with the expertise of Milwaukee, an industry-recognised manufacturer of portable power tools. Together, we developed a new set of Rapid Seal Heads and a new M12 Fuel expander.

>> More information

Uponor PEX pipe – The world’s first, best and most widely used

Entirely designed to make the installation work as easy as possible, the flexible Uponor PEX pipe system is the ideal solution for installation tasks for safe drinking water and heating installation systems.

Uponor PEX pipes are plastic plumbing pipes of high quality and meet all requirements for hygienic installation. They do not give off taste, odour, heavy metals or hazardous substances to the drinking water. The thermal memory of the pipes gives you the opportunity to use the unique coupling technology Uponor Q&E (Quick & Easy). For quick and easy with the world's safest connection technology!

Application areas:

  • Tap water connections
  • Radiator connections
  • Ideal for new builds and renovations

Specification:

Dimensions:

  • Aqua pipe: 15-110 mm
  • Radi pipe: 16-110 mm
  • Combi pipe: 12-63 mm

Not sure what you need? See how our products stack up to each other

Uponor Aqua pipe

Uponor Radi pipe

Uponor Combi Pipe

1

2

3

Usage for drinking water

Usage for radiator connection/fancoils

Usage for radiant heating and cooling

Available in coils

Available in straight bars

Pressure rating PN 6

Pressure rating PN 10

Max. permanent operating temperature

70 °C

70°C

70°C

Max. operating pressure

10 bar

10 bar

Tap water: 10 bar Heating: 6 bar

Dimensions in mm

15 - 110

16 - 110

13 - 63

Insulated pipes in dimension (in mm)

16, 20, 25

16, 20, 25

Pipe in pipe as 16, 20, 25

PEX plastic plumbing pipes for flexible installations

Uponor PEX pipe installation system with unique Quick & Easy jointing technology

Push Q&E fitting onto pex pipe
The Uponor Q&E fitting is a jointing concept that relies on the unique elastic features of Uponor PEX-pipe to create a joint that is stronger than the pipe itself. The unique shape memory of Uponor PEX-piping forms a tight seal around the fitting creating a strong reliable connection within seconds.

  • Available in a range of high performance PPSU and threaded brass fittings for pipe dimensions up to 75 mm
  • Uponor PEX-pipe may also be used with Uponor’s range of compression fittings
  • Low pressure loss and corrosion resistant

Quick & Easy system

More details in the product catalogue

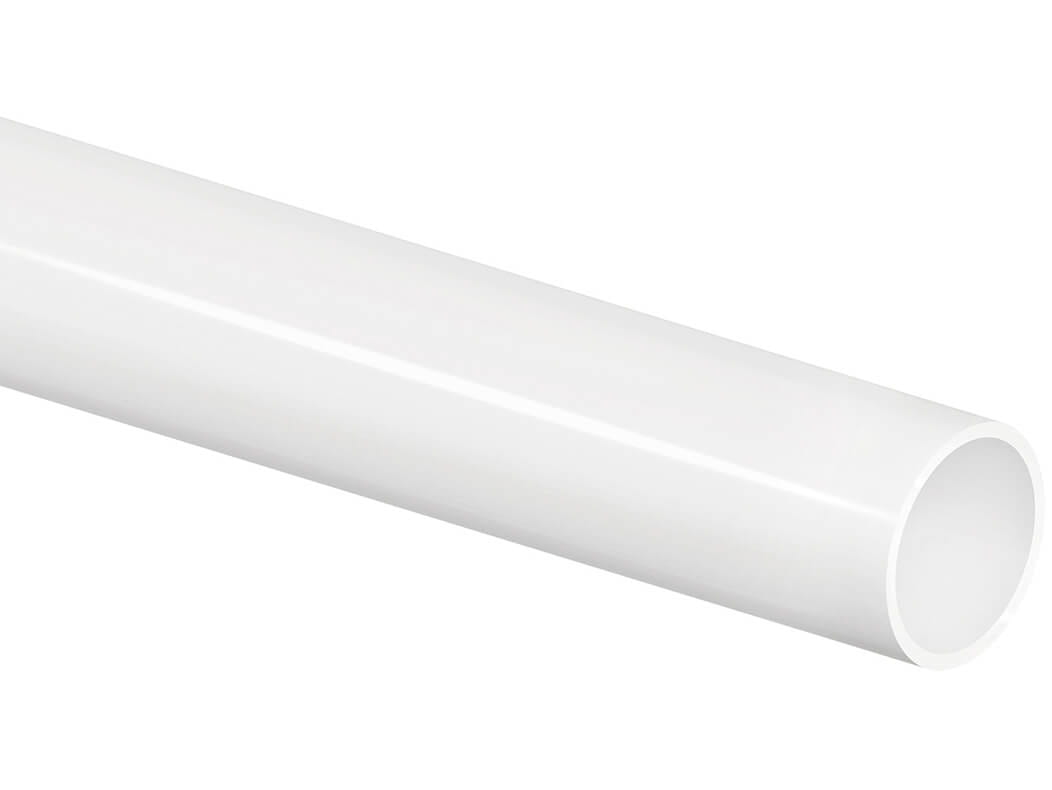

Aqua pipe

The intelligent flushing station

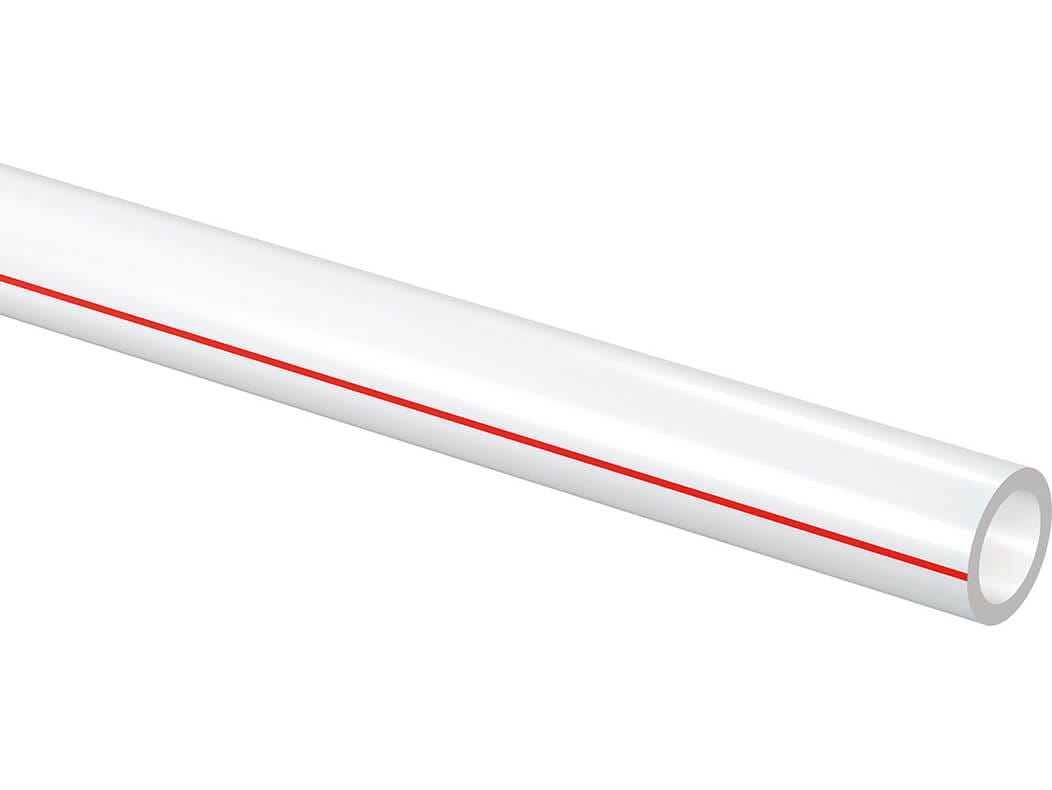

Radi pipe

For heating with radiators or cooling with fan-coils

Combi pipe

One pipe for drinking water and heating

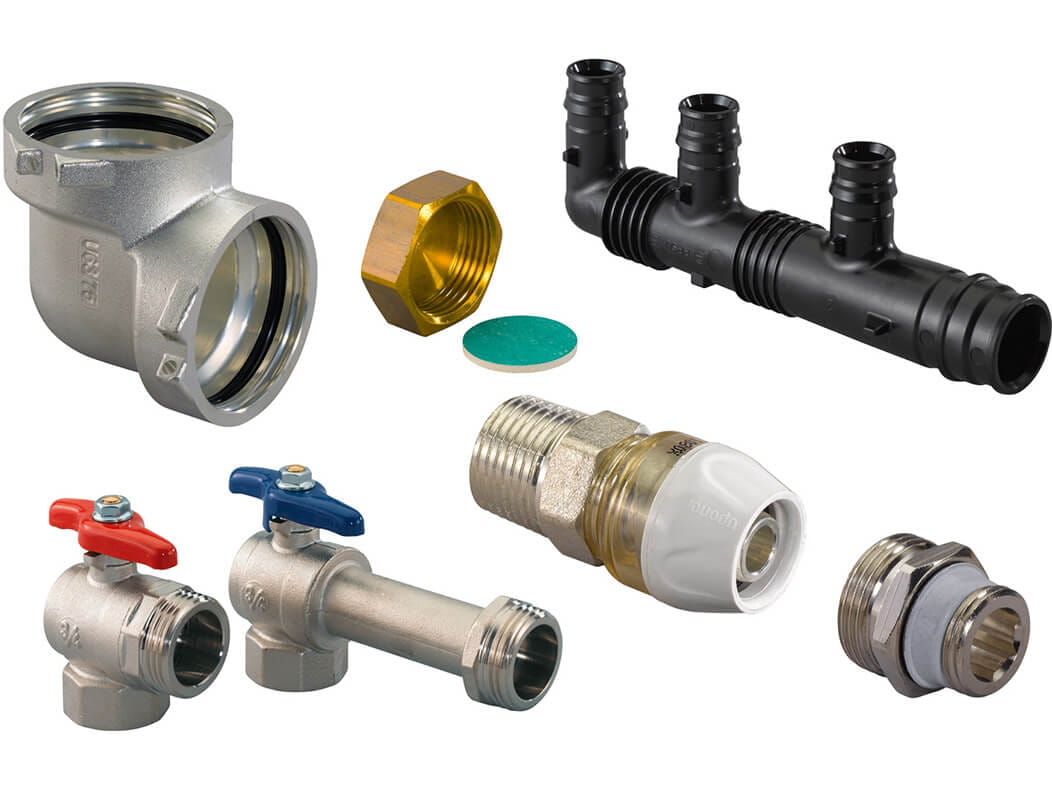

PPSU fittings

High performance PPSU fittings up to 75 mm

Brass fittings

Mettal fittings

Manifiolds

Manifolds and accessories

Expansion tool

Milwaukee expansion tools

Look up or download brochures for PEX Pipe System

Uponor plumbing systems and hygiene installation

Uponor plumbing systems and hygiene installation

Salesfolder

PDF 19 MB
Uponor Q&E Rapid Seal Heads and Q&E expander tool M12 Fuel

Uponor Q&E Rapid Seal Heads and Q&E expander tool M12 Fuel

Salesfolder

PDF 1 MB
Uponor Q&E 9.9-50 mm

Uponor Q&E 9.9-50 mm

Installation manual

PDF 1 MB
Quick & Easy jointing technology

Quick & Easy jointing technology

Salesfolder

PDF 882 KB
Flexible modular plastic plumbing manifold system

Flexible modular plastic plumbing manifold system

Salesfolder

PDF 508 KB
Uponor PEX piping systems

Uponor PEX piping systems

Technical information

PDF 1 MB
Aqua PLUS Waterguard

Aqua PLUS Waterguard

Salesfolder

PDF 3 MB
Uponor Aqua PLUS manifold PPM

Uponor Aqua PLUS manifold PPM

Technical information

PDF 6 MB
Aqua PLUS membrane frame door

Aqua PLUS membrane frame door

Product information english

PDF 128 KB
Aqua PLUS membrane frame

Aqua PLUS membrane frame

Installation manual, international

PDF 1002 KB
Aqua PLUS membrane door

Aqua PLUS membrane door

Installation manual, International

PDF 583 KB

Products for drinking water delivery

Overview for products with Uponor pipes and Uponor fittings

Multilayer pipe system

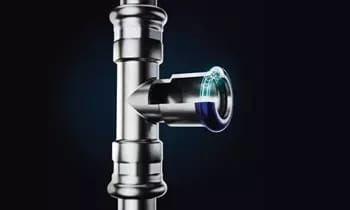

Uponor INOX
