Fill the BIM cart from the product catalogue
AQUASYSTEM

PP-R and PP-RCT Pipe Systems

AQUASYSTEM

Designed to delivery

Get an offer

Aquasystem is a reliable, high‑quality PP‑R system

Engineered for all demands: AQUASYSTEM is the lightweight pipe system for residential and commercial buildings as well as healthcare facilities and marine suitable for hot and cold water applications. Made of PP-R and PP-RCT, the pipe system features high temperature and pressure resistance, is hygienically safe, and eligible for use in drinking water supply systems. Thanks to its chemical resistance behavior, the system is also the long-lasting choice for transferring or discharging chemical media.

Key facts of Aquasystem PPR and PP RCT pipe system

Built on Quality. Driven by Service

Monolayer PP-R

Multilayer PP-R Fiberglass Reinforced Pipes

Multilayer PP-RCT Fiberglass Reinforced Pipes

1

2

3

Property/Feature

(SDR6 PN20, SDR7.4 PN16, SDR11 PN10)*

(SDR6 PN20, SDR7.4, SDR11 PN10)*

(PN 25- SDR7,4, PN20-SDR9)*

Material Type

PP-R (Polypropylene Random Copolymer)

PP-R with middle glass fiber layer

PP-RCT (Type 4) with glass fiber layer

Application Range

Cold and moderate hot water

Hot water, heating

Hot and cold water, district heating, industrial

Thermal Expansion Coefficient [mm/m-k]

0.15

0.035

0.035

Installation Type

Domestic cold water systems

Hot water distribution, heating risers, medium sized buildings

High rise buildings, district heating, industrial systems

Advantages

Low cost, easy to weld, widely available

Lower expansion, good mechanical stability

Highest pressure and temperature resistance, minimal expansion

Limitations

High expansion, lower temperature resistance

Optimised for hot water and heating, limited benefit in cold water only systems

Limited benefit in low temperature, low pressure applications

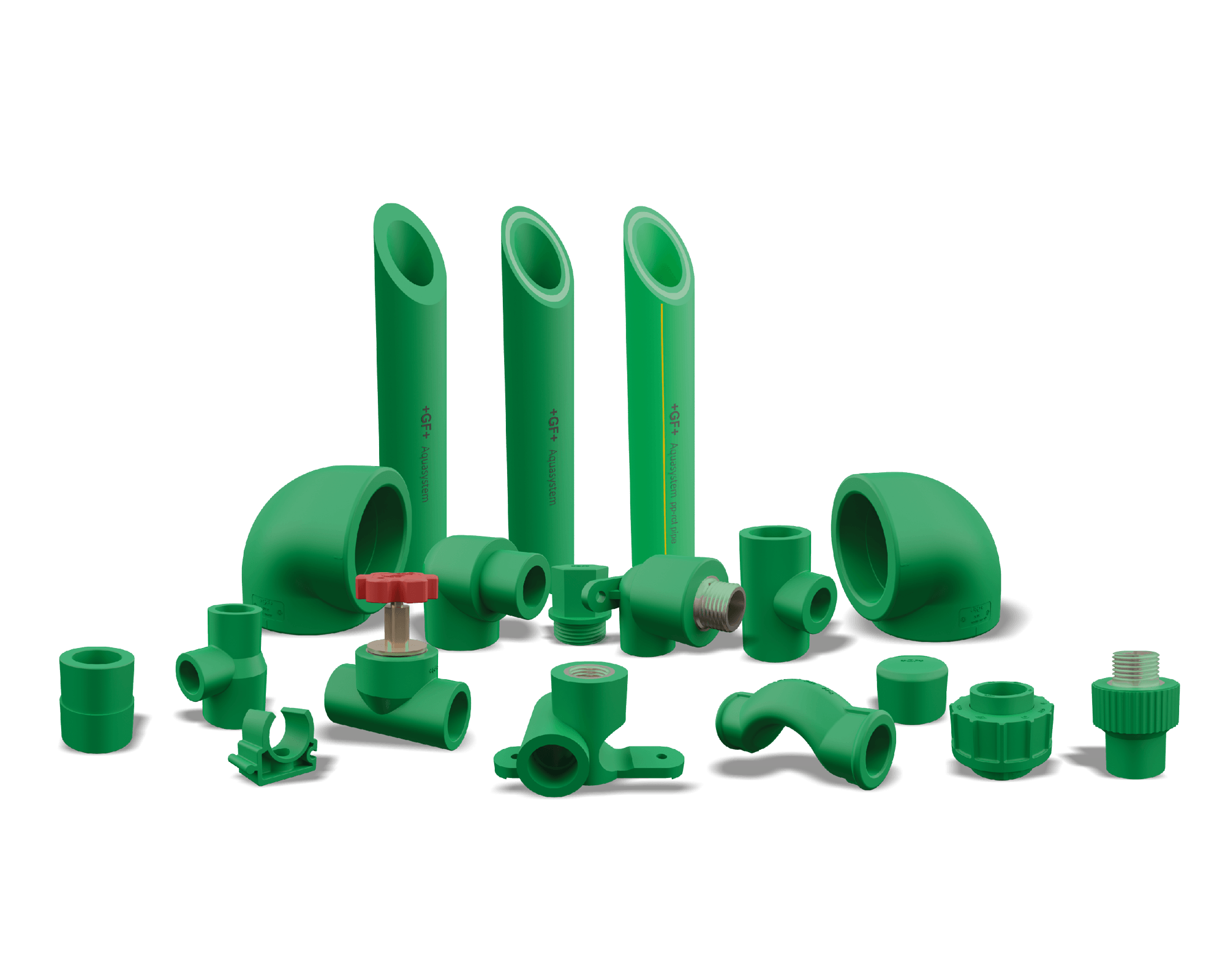

The product rage of Aquasystem


AQUASYSTEM consists of three PP-R piping systems for different performance requirements based on temperature, pressure, and application.
  • PP-R monolayer for cold water and basic hot water installations in residential and non residential buildings.
  • PP-R glass fiber reinforced for hot water and heating applications with reduced thermal expansion.
  • PP RCT glass fiber reinforced for high temperatures, high pressures, and demanding industrial and high rise applications.

All systems cover dimensions from d20 to d160, comply with EN 15874 and DIN 8077, and are suitable for drinking water. A uniform jointing technology ensures safe and efficient installation across all product lines.

Types of PP-R Systems and their applications

Types of PP-R Systems
  • Standard (PN10-PN20)
  • Glass Fiber Reinforced (PN20-PN25)
  • UV-Resistant (PN20-PN25)

PP-RCT Innovation
  • PP-RCT, with β-nucleation, handles higher pressures, temperatures, and chlorine resistance.
  • Glass-Fiber Reinforced: PN20 (SDR9), PN25 (SDR7.4)

Applications
  • Central heating, hot/cold water, drinking water
  • Industrial piping (chemicals)
  • Air conditioning, solar collector

Pipe variations of GF Aquasystem

Green Pipe

Green Pipe

Grey pipe

Grey pipe

White pipe

White pipe

1

2

3

Colors

Green

Grey

White

Segment

Building Technology and Marine

Building Technology

Building Technology

Dimensions

d20-d160 mm

d20-d160 mm

d20-d160 mm

Pipe Material

PPR / PPR-FG / PP-RCT

PPR / PPR-FG

PPR / PPR-FG

Fittings

Socket Fusion, Electrofusion fittings, saddles

Socket Fusion

Socket Fusion

Reliability starts here

At GF, quality is more than a promise

uality at GF is a commitment embedded in every step we take. From carefully selected raw materials to precise manufacturing and reliable delivery, we ensure that every product meets the highest expectations. With decades of expertise and an unwavering focus on consistency, GF stands as a partner you can trust – today and for the long run.

Swiss Quality ensured

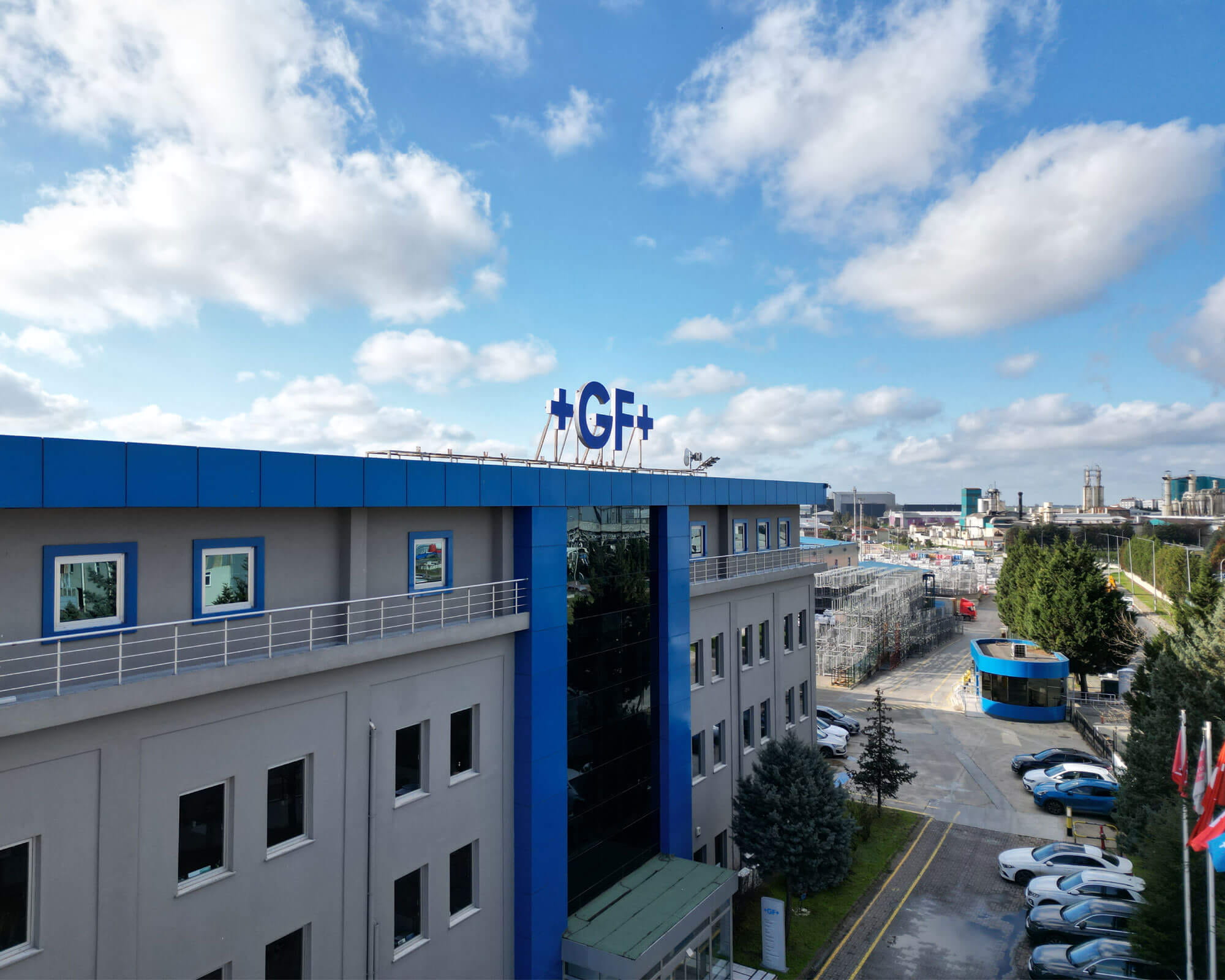

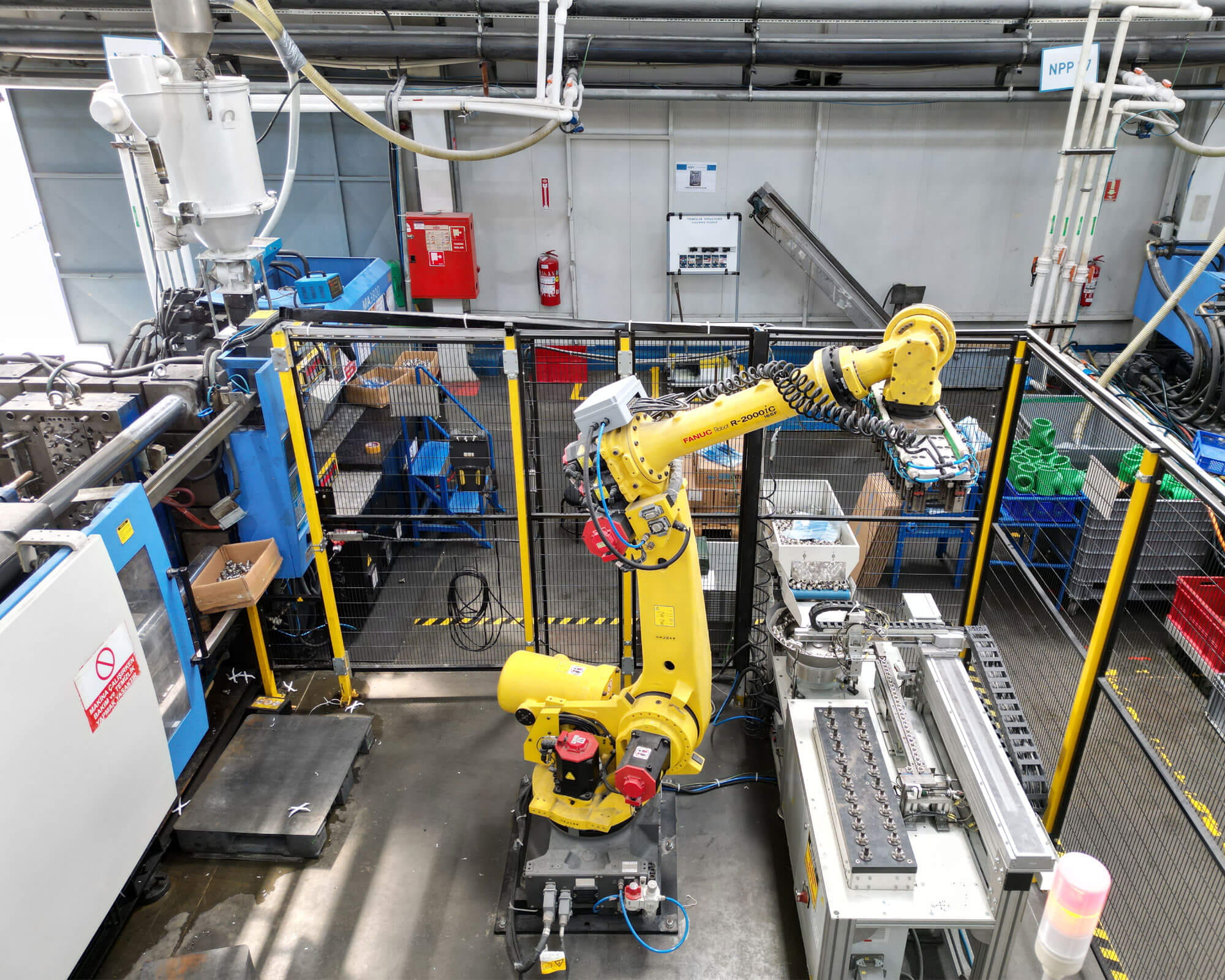

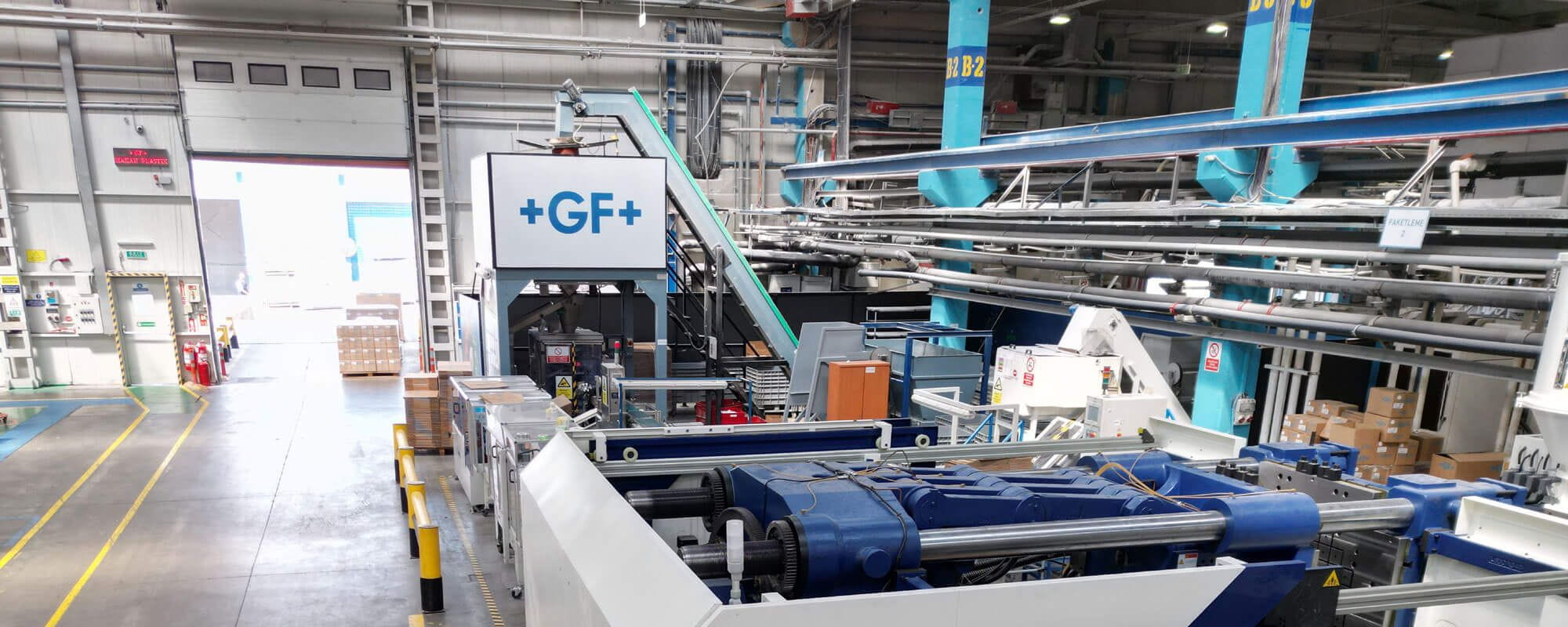

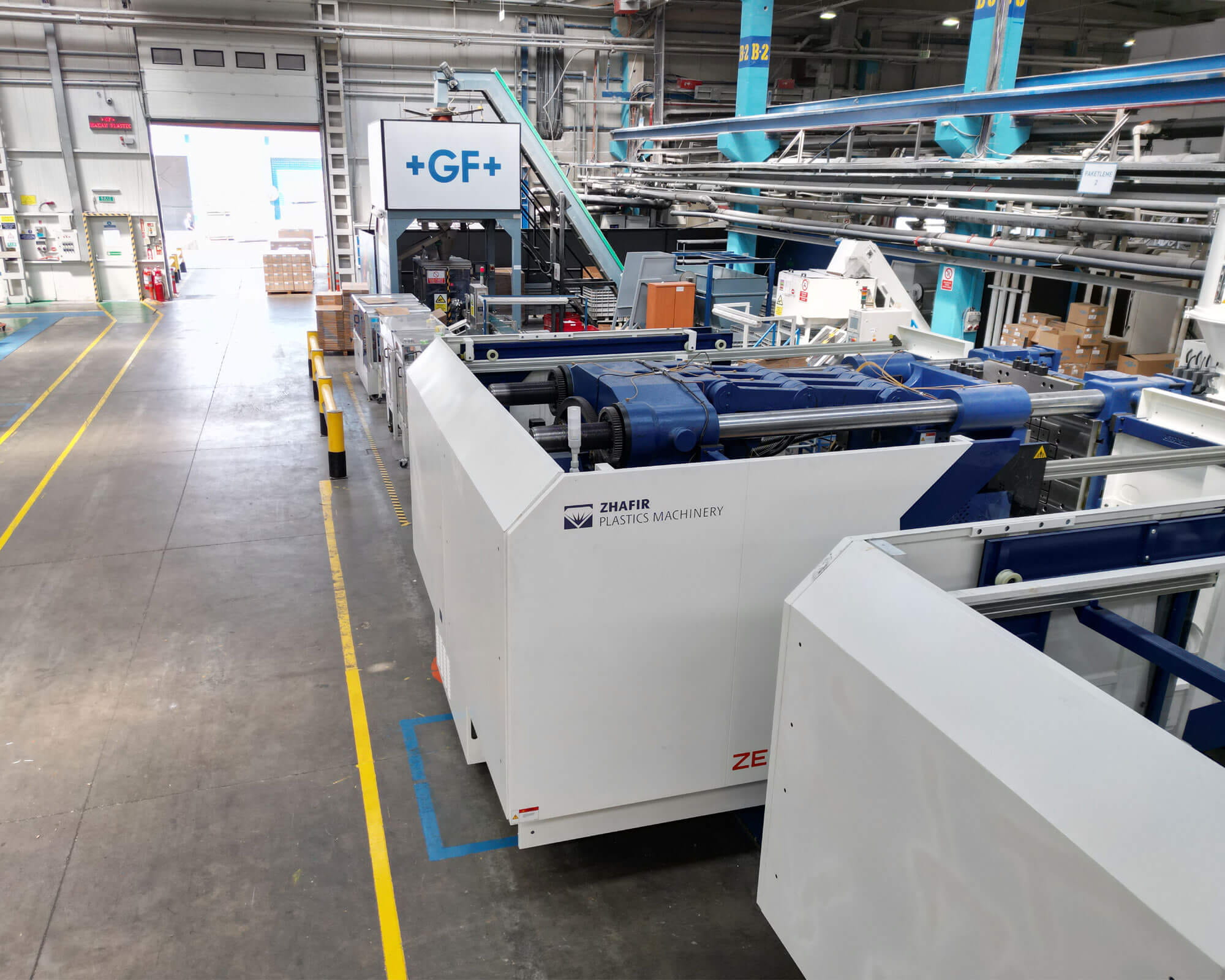

A key example is the production site in Çerkezköy, Turkey, where GF AQUASYSTEM is manufactured based on Swiss GF standards. This facility achieved carbon neutral operations in 2025, reducing emissions by 95% compared to the 2019 baseline and cutting waste by 36% through circular economy practices. As part of GF’s Carbon Neutral Operations concept, these achievements not only minimize our environmental footprint – they also elevate our research, development, and manufacturing capabilities into true centers of excellence. This strengthens GF’s position as a global leader in sustainable Flow solutions and ensures that every AQUASYSTEM product embodies both quality and responsibility

Reference case: Luxera Towers, Istanbul

Made for all conditions

Luxera Towers is a distinctive project, standing out with its modern architectural approach, high-quality material selection, and privileged living concept. Built on an area of 17,000 m² it consists of two towers, each with 26 floors, and includes 369 residential units and dozens of commercial units. As a high-rise development, Luxera Towers offers all the privileges of life in a single project, supported by GF’s AQUASYSTEM PP-R pipe systems that ensure not only comfort, but also hygiene and safe living conditions.

For the developers of the Luxera Towers, plumbing systems belong to the most important components in the building. Especially clean water lines are defined as a critical infrastructural element in terms of quality of life and building safety.
