Technical information
7 KB1187135
GF HT-PP branch 45° 110-50mm
Item details
Dimensions
| Item Unit Height | 202 |
|---|---|
| Item_UOM | pce |
| Item Unit Width | 190 |
| Item Unit Length | 130 |
| Item Unit Weight | 0,41 |

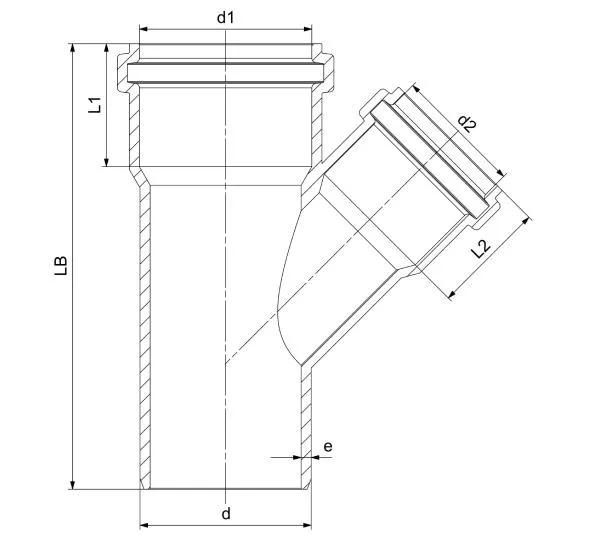

Measurements
| Z Measurement d | 110 |
|---|---|
| z1 | 71,6 |
| Z Measurement d3 | 50,5 |
| Z Measurement b1 | 5 |
| Z Measurement e | 3,4 |
| Z Measurement d3 | 50,5 |
| Length (l2) | 48,9 |
| Z Measurement d1 | 110 |
| Z2 | 50,6 |
| Z Measurement d4 | 59,6 |
| Wall thickness_s | 16 |
| Z Measurement d2 | 121,2 |
| Z Measurement L1 | 65,4 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900555319 | 06414900231268 | 06414900104654 |
| Height | 202 | 400 | 1200 |
| Length | 130 | 800 | 1200 |
| Quantity | 1 | 40 | 240 |
| Type | Piece | Medium_Box | Pallet |
| Volume | 0,0049894 | 0,192 | 1,44 |
| Weight | 0,41 | 16,4 | 123,4 |
| Width | 190 | 600 | 1000 |
Product code
| Item no VVS | 186381106 |
|---|---|
| Item no GF | 4901211004021 |
| Item no GTIN | 08698652032009 |
| Item no EAN | 8698652032009 |
Status
| Item Available From date | 2026-02-01 |
|---|
