Technical information
7 KB1187135
GF HT-PP branch 67,5° 110-110mm
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Width | 235 |
| Item Unit Weight | 0,415 |
| Item Unit Height | 245 |
| Item Unit Length | 130 |

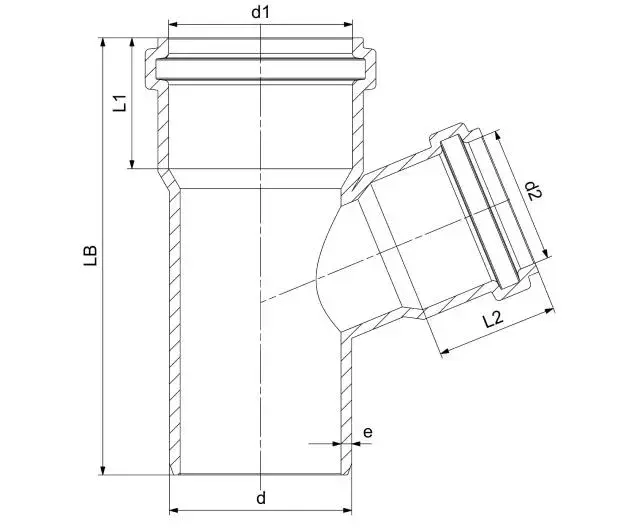

Measurements
| Z Measurement b1 | 6 |
|---|---|
| Z Measurement e | 3,4 |
| Z Measurement d3 | 110,5 |
| Wall thickness_s | 16 |
| Z Measurement d2 | 121,2 |
| Z Measurement L1 | 74 |
| Z Measurement d | 110 |
| z1 | 119 |
| Z Measurement d3 | 110,5 |
| Length (l2) | 74 |
| Z Measurement d1 | 110 |
| Z2 | 46 |
| Z Measurement d4 | 121,2 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900554671 | 06414900231374 | 06414900104869 |
| Height | 245 | 400 | 1200 |
| Length | 130 | 800 | 1200 |
| Quantity | 1 | 25 | 150 |
| Type | Piece | Medium_Box | Pallet |
| Volume | 0,00748475 | 0,192 | 1,44 |
| Weight | 0,415 | 10,375 | 87,25 |
| Width | 235 | 600 | 1000 |
Product code
| Item no EAN | 8698652055237 |
|---|---|
| Item no VVS | 186341110 |
| Item no GF | 4901211041221 |
| Item no GTIN | 08698652055237 |
Status
| Item Available From date | 2026-02-01 |
|---|
Documents
Technical manuals
