Technical information
7 KB1187135
GF HT-PP branch 87,5° 125-125mm
Item details
Dimensions
| Item Unit Weight | 0,735 |
|---|---|
| Item Unit Length | 145 |
| Item_UOM | pce |
| Item Unit Width | 216 |
| Item Unit Height | 280 |

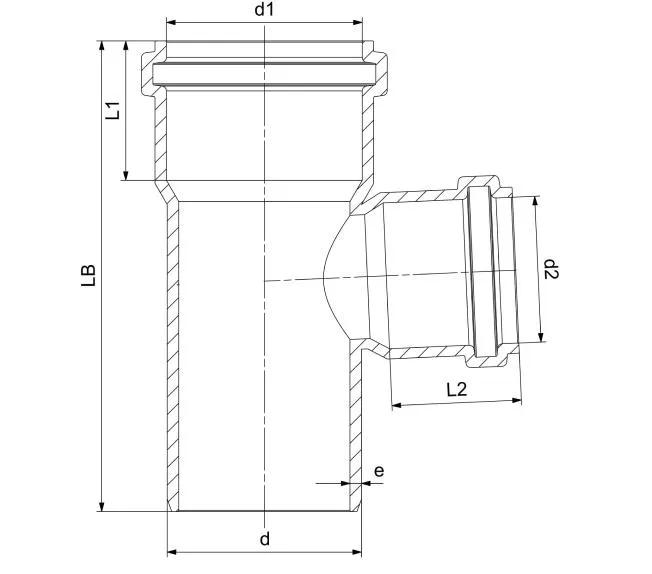

Measurements
| Wall thickness_s | 20 |
|---|---|
| Z Measurement d2 | 138,5 |
| Z Measurement L1 | 74,3 |
| Length (l2) | 74,5 |
| Z Measurement d1 | 125 |
| z1 | 129,2 |
| Z Measurement d4 | 138,5 |
| Z Measurement b1 | 7 |
| Z Measurement e | 3,9 |
| Z Measurement d3 | 125,5 |
| Z Measurement d | 125 |
| Z Measurement h | 143,3 |
| Z Measurement d3 | 125,5 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900554411 | 06414900231428 | 06414900104944 |
| Height | 280 | 400 | 1200 |
| Length | 145 | 800 | 1200 |
| Quantity | 1 | 20 | 120 |
| Type | Piece | Medium_Box | Pallet |
| Volume | 0,0087696 | 0,192 | 1,44 |
| Weight | 0,735 | 14,7 | 113,2 |
| Width | 216 | 600 | 1000 |
Product code
| Item no EAN | 8698652046860 |
|---|---|
| Item no GTIN | 08698652046860 |
| Item no VVS | 186301125 |
| Item no GF | 4901212510321 |
Status
| Item Available From date | 2026-02-01 |
|---|
