Technical information
7 KB1187135
GF HT-PP double branch 45° 160-110mm
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Weight | 1,522 |
| Item Unit Width | 250 |
| Item Unit Height | 325 |
| Item Unit Length | 185 |

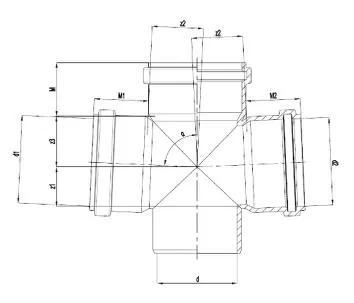

Measurements
| Z Measurement b1 | 6 |
|---|---|
| Z Measurement d2 | 175,2 |
| Z measurement m2 | 64,4 |
| Z Measurement d5 | 110,5 |
| Z Measurement b2 | 6 |
| Z Measurement e | 4,9 |
| z1 | 156,6 |
| Z Measurement d3 | 110,5 |
| Z Measurement d6 | 121,2 |
| Length (l2) | 64,4 |
| Z Measurement d | 160 |
| Z measurement m | 80,5 |
| Z2 | 111 |
| Z Measurement d3 | 110,5 |
| Z Measurement L1 | 80,5 |
| Z Measurement ALPHA | 45 |
| Z Measurement d1 | 160,6 |
| Z measurement m1 | 64,4 |
| Z3 | 156 |
| Z Measurement d4 | 121,2 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900602136 | 06414900234177 | 06414900105033 |
| Height | 325 | 400 | 1300 |
| Length | 185 | 800 | 1300 |
| Quantity | 1 | 8 | 48 |
| Type | Piece | Medium_Box | Pallet |
| Volume | 0,01503125 | 0,192 | 1,859 |
| Weight | 1,522 | 12,176 | 98,056 |
| Width | 250 | 600 | 1100 |
Product code
| Item no VVS | 186416157 |
|---|---|
| Item no GTIN | 08698652058009 |
| Item no GF | 4901216042021 |
| Item no EAN | 8698652058009 |
Status
| Item Available From date | 2026-02-01 |
|---|
