Technical information
7 KB1187135
GF HT-PP reducer eccentric 50-32
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Length | 55 |
| Item Unit Weight | 0,03 |
| Item Unit Width | 55 |
| Item Unit Height | 111 |

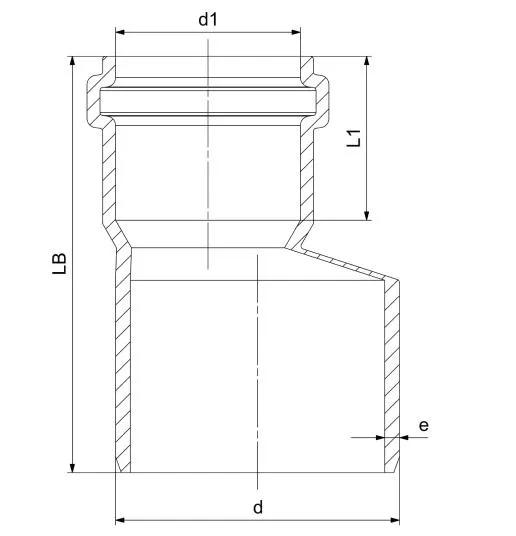

Measurements
| Z Measurement d1 | 39,8 |
|---|---|
| z1 | 10,1 |
| Z Measurement LB | 88 |
| Z Measurement d2 | 39,8 |
| Wall thickness_s | 16 |
| Z Measurement e | 1,8 |
| Z Measurement L1 | 46 |
| Z Measurement d | 50 |
| Z Measurement h | 8,8 |
| Z Measurement L | 42 |
Packaging
| GTIN | 06414900601597 | 06414900231480 | 06414900106764 |
|---|---|---|---|
| Height | 111 | 400 | 1200 |
| Length | 55 | 800 | 1200 |
| Quantity | 1 | 500 | 3000 |
| Type | Piece | Medium_Box | Pallet |
| Volume | 0,000335775 | 0,192 | 1,44 |
| Weight | 0,03 | 15 | 115 |
| Width | 55 | 600 | 1000 |
Product code
| Item no VVS | 186511048 |
|---|---|
| Item no GTIN | 08698652097336 |
| Item no EAN | 8698652097336 |
| Item no GF | 4901405016521 |
Status
| Item Available From date | 2026-02-01 |
|---|
Documents
Technical manuals
