GF JRGUMAT thermostatic mixing valve 3400, 55°C DN20
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Width | 42 |
| Item Unit Weight | 0,701 |
| Item Unit Length | 100 |
| Item Unit Height | 89 |

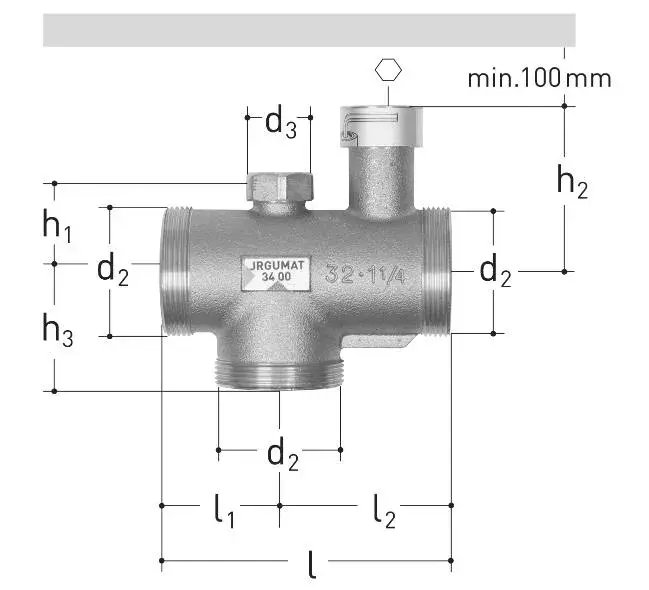

Measurements
| Length (l1) | 40 |
|---|---|
| Z Measurement h1 | 32 |
| Z Measurement d3 | G1/2" |
| Z Measurement d2 | G1 1/4" |
| LENGTH_L | 100 |
| Z Measurement h3 | 40 |
| Length (l2) | 60 |
| Z Measurement h2 | 49 |
| Z Measurement d3 | G1/2" |
Packaging
| GTIN | 06414900169509 |
|---|---|
| Height | 81 |
| Length | 190 |
| Quantity | 1 |
| Type | Base_Box |
| Volume | 0,00232389 |
| Weight | 0,831 |
| Width | 151 |
Product code
| Item no EAN | 7613263098993 |
|---|---|
| Item no GTIN | 07613263098993 |
| Item no RSK | 4927911 |
| Item no GF | 350760413 |
