Technical information
7 KB1187135
GF Silenta 3A access pipe rectangular 160mm
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Width | 210 |
| Item Unit Height | 413 |
| Item Unit Weight | 4,17 |
| Item Unit Length | 210 |

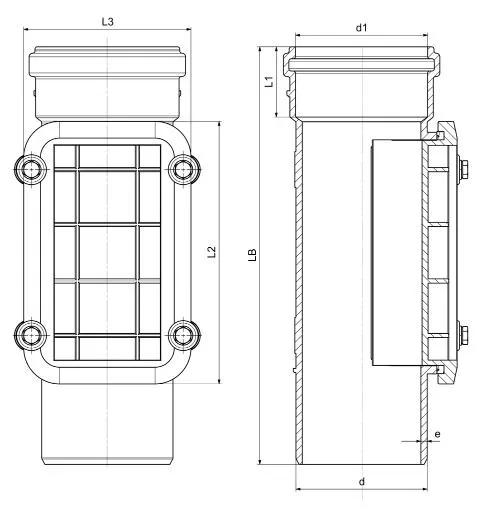

Measurements
| Z Measurement d | 160 |
|---|---|
| Length (l2) | 275 |
| Z Measurement d1 | 160 |
| Z Measurement L1 | 73 |
| Wall thickness_s | 16 |
| Length (l3) | 195 |
| Z Measurement e | 4,9 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900601993 | 06414900612883 | 06414900612890 |
| Height | 413 | 400 | 944 |
| Length | 210 | 800 | 1200 |
| Quantity | 1 | 8 | 32 |
| Type | Piece | Box | Pallet |
| Volume | 0,0182133 | 0,192 | 0,90624 |
| Weight | 4,17 | 34,92 | 164,68 |
| Width | 210 | 600 | 800 |
Product code
| Item no RSK | 2831995 |
|---|---|
| Item no VVS | 186746360 |
| Item no NOBB | 60823871 |
| Item no NRF | 1486202 |
| Item no EAN | 8698652046839 |
| Item no GTIN | 08698652046839 |
| Item no GF | 4704316000221 |
Status
| Item Available From date | 2026-02-01 |
|---|
