Technical information
7 KB1187135
GF Silenta 3A branch 87,5° 110-110mm
Item details
Dimensions
| Item Unit Length | 130 |
|---|---|
| Item Unit Height | 245 |
| Item_UOM | pce |
| Item Unit Width | 190 |
| Item Unit Weight | 0,613 |

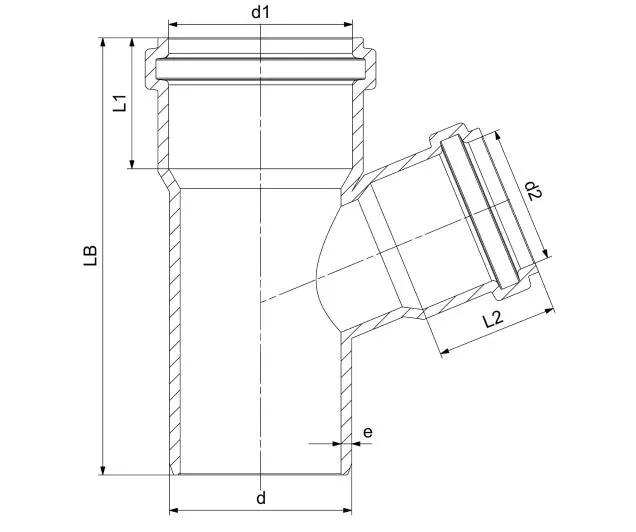

Measurements
| Wall thickness_s | 16 |
|---|---|
| Z Measurement e | 3,4 |
| Length (l2) | 58 |
| Z Measurement d2 | 110 |
| Z Measurement L1 | 58 |
| Z Measurement d1 | 110 |
| Z Measurement d | 110-110 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900553162 | 06414900566667 | 06414900566674 |
| Height | 245 | 360 | 924 |
| Length | 130 | 590 | 1200 |
| Quantity | 1 | 10 | 80 |
| Type | Piece | Box | Pallet |
| Volume | 0,0060515 | 0,082836 | 0,88704 |
| Weight | 0,613 | 7,17 | 82,36 |
| Width | 190 | 390 | 800 |
Product code
| Item no GTIN | 08698652001241 |
|---|---|
| Item no GF | 4704211002321 |
| Item no VVS | 186731110 |
| Item no NOBB | 60823852 |
| Item no RSK | 2832052 |
| Item no NRF | 1486183 |
| Item no EAN | 8698652001241 |
Status
| Item Available From date | 2026-02-01 |
|---|
