Technical information
7 KB1187135
GF Silenta 3A branch 87,5deg 160-110mm
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Height | 325 |
| Item Unit Length | 185 |
| Item Unit Width | 250 |
| Item Unit Weight | 1,19 |

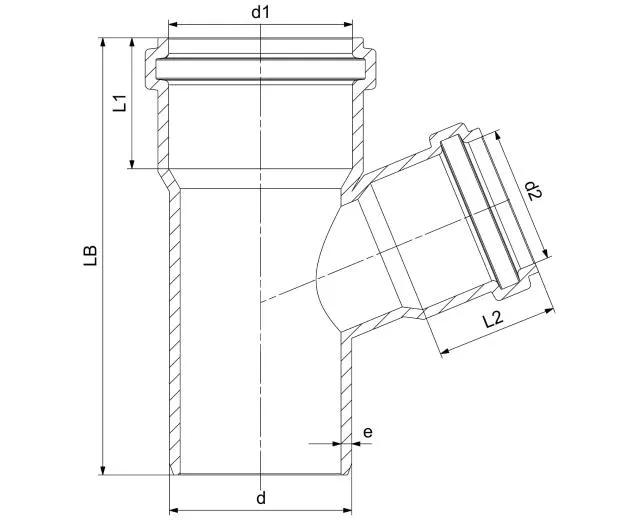

Measurements
| Z Measurement d2 | 110 |
|---|---|
| Z Measurement e | 4,9 |
| Wall thickness_s | 16 |
| Length (l2) | 58 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900553711 | 06414900566902 | 06414900566919 |
| Height | 325 | 400 | 944 |
| Length | 185 | 800 | 1200 |
| Quantity | 1 | 14 | 56 |
| Type | Piece | Box | Pallet |
| Volume | 0,01503125 | 0,192 | 0,90624 |
| Weight | 1,19 | 18,22 | 97,88 |
| Width | 250 | 600 | 800 |
Product code
| Item no RSK | 2832057 |
|---|---|
| Item no NOBB | 60823864 |
| Item no VVS | 186731157 |
| Item no GF | 4704216002621 |
| Item no NRF | 1486195 |
| Item no EAN | 8698652131641 |
| Item no GTIN | 08698652131641 |
Status
| Item Available From date | 2026-02-01 |
|---|
Documents
Technical manuals
