Technical information
7 KB1187135
GF Silenta 3A branch 87,5deg 75-50mm
Item details
Dimensions
| Item Unit Weight | 0,22 |
|---|---|
| Item Unit Length | 90 |
| Item Unit Width | 135 |
| Item_UOM | pce |
| Item Unit Height | 180 |

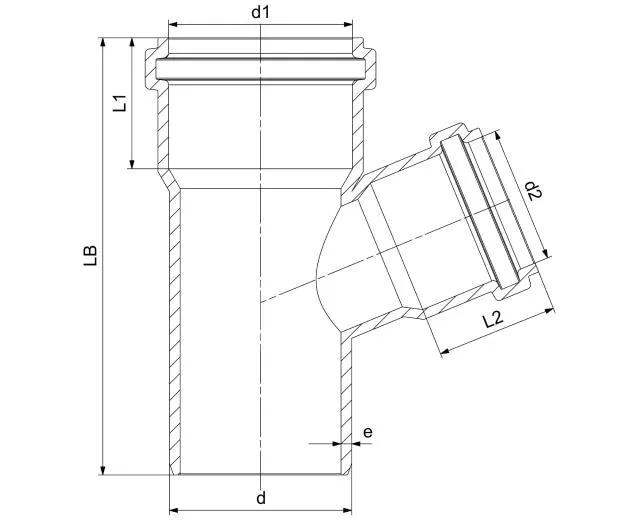

Measurements
| Length (l2) | 46 |
|---|---|
| Z Measurement e | 2,3 |
| Wall thickness_s | 16 |
| Z Measurement d2 | 50 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900553155 | 06414900566506 | 06414900566513 |
| Height | 180 | 243 | 1135 |
| Length | 90 | 415 | 1200 |
| Quantity | 1 | 10 | 300 |
| Type | Piece | Box | Pallet |
| Volume | 0,002187 | 0,02541294 | 1,0896 |
| Weight | 0,22 | 2,68 | 105,4 |
| Width | 135 | 252 | 800 |
Product code
| Item no GTIN | 08698652043241 |
|---|---|
| Item no VVS | 186731073 |
| Item no GF | 4704207501921 |
| Item no NRF | 1486175 |
| Item no EAN | 8698652043241 |
| Item no RSK | 2832048 |
| Item no NOBB | 60823844 |
Status
| Item Available From date | 2026-02-01 |
|---|
Documents
Technical manuals
