Technical information
7 KB1187135
GF Silenta 3A double branch 45° 160-110mm
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Width | 428 |
| Item Unit Height | 320 |
| Item Unit Weight | 1,66 |
| Item Unit Length | 185 |

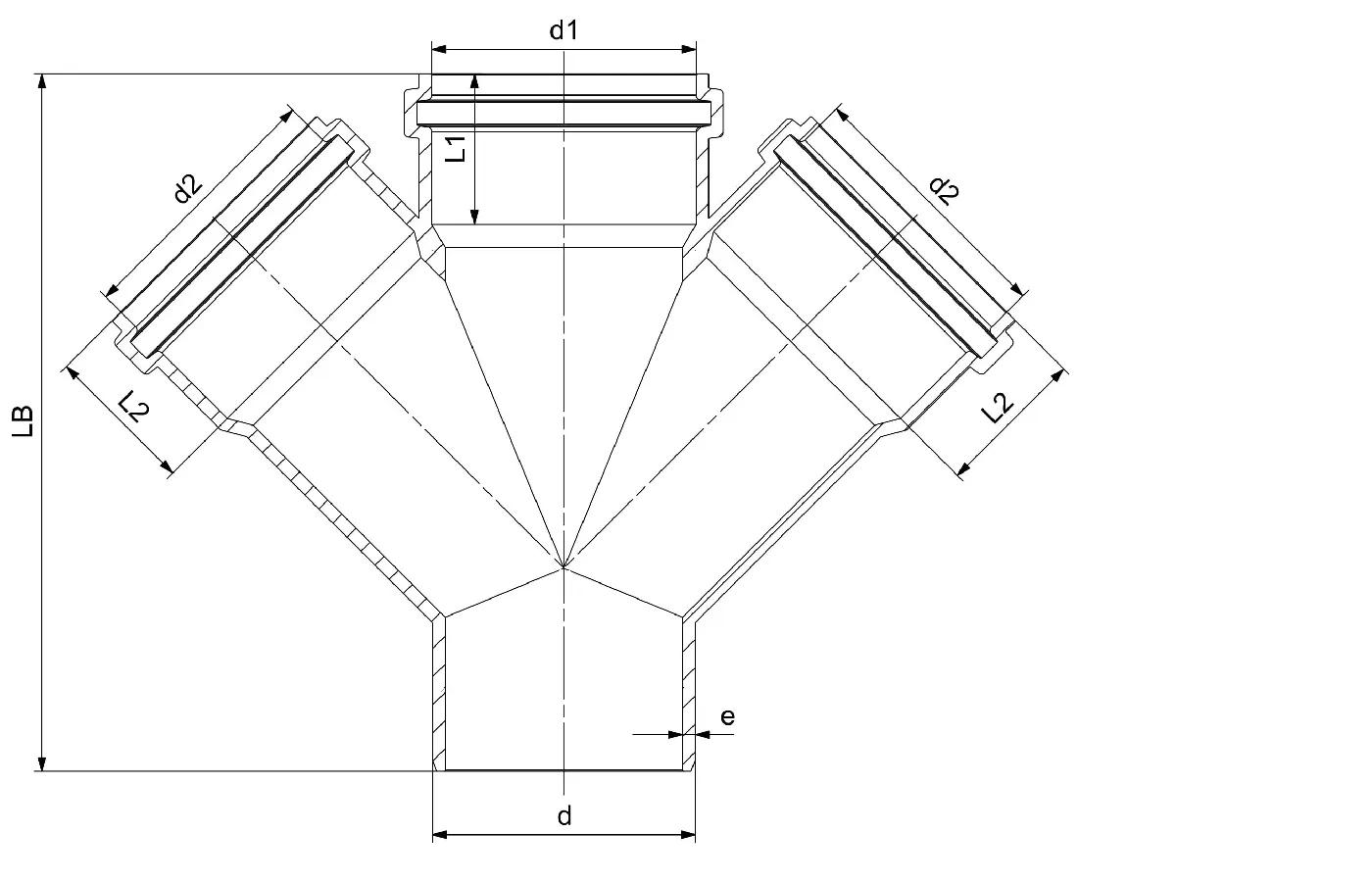

Measurements
| Z Measurement d1 | 160 |
|---|---|
| Length (l2) | 58 |
| Z Measurement d2 | 110 |
| Z Measurement L1 | 73 |
| Z Measurement d | 160-110 |
| Wall thickness_s | 20 |
| Z Measurement e | 3,1 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900601979 | 06414900566926 | 06414900566933 |
| Height | 320 | 400 | 944 |
| Length | 185 | 800 | 1200 |
| Quantity | 1 | 8 | 32 |
| Type | Piece | Box | Pallet |
| Volume | 0,0253376 | 0,192 | 0,90624 |
| Weight | 1,66 | 14,84 | 84,36 |
| Width | 428 | 600 | 800 |
Product code
| Item no RSK | 2832102 |
|---|---|
| Item no VVS | 186738157 |
| Item no NOBB | 60823865 |
| Item no NRF | 1486196 |
| Item no EAN | 8698652051246 |
| Item no GTIN | 08698652051246 |
| Item no GF | 4704216003621 |
Status
| Item Available From date | 2026-02-01 |
|---|
