Technical information
7 KB1187135
GF Silenta 3A double branch 45° 50-50mm
Item details
Dimensions
| Item Unit Height | 175 |
|---|---|
| Item Unit Weight | 0,117 |
| Item Unit Length | 65 |
| Item_UOM | pce |
| Item Unit Width | 195 |

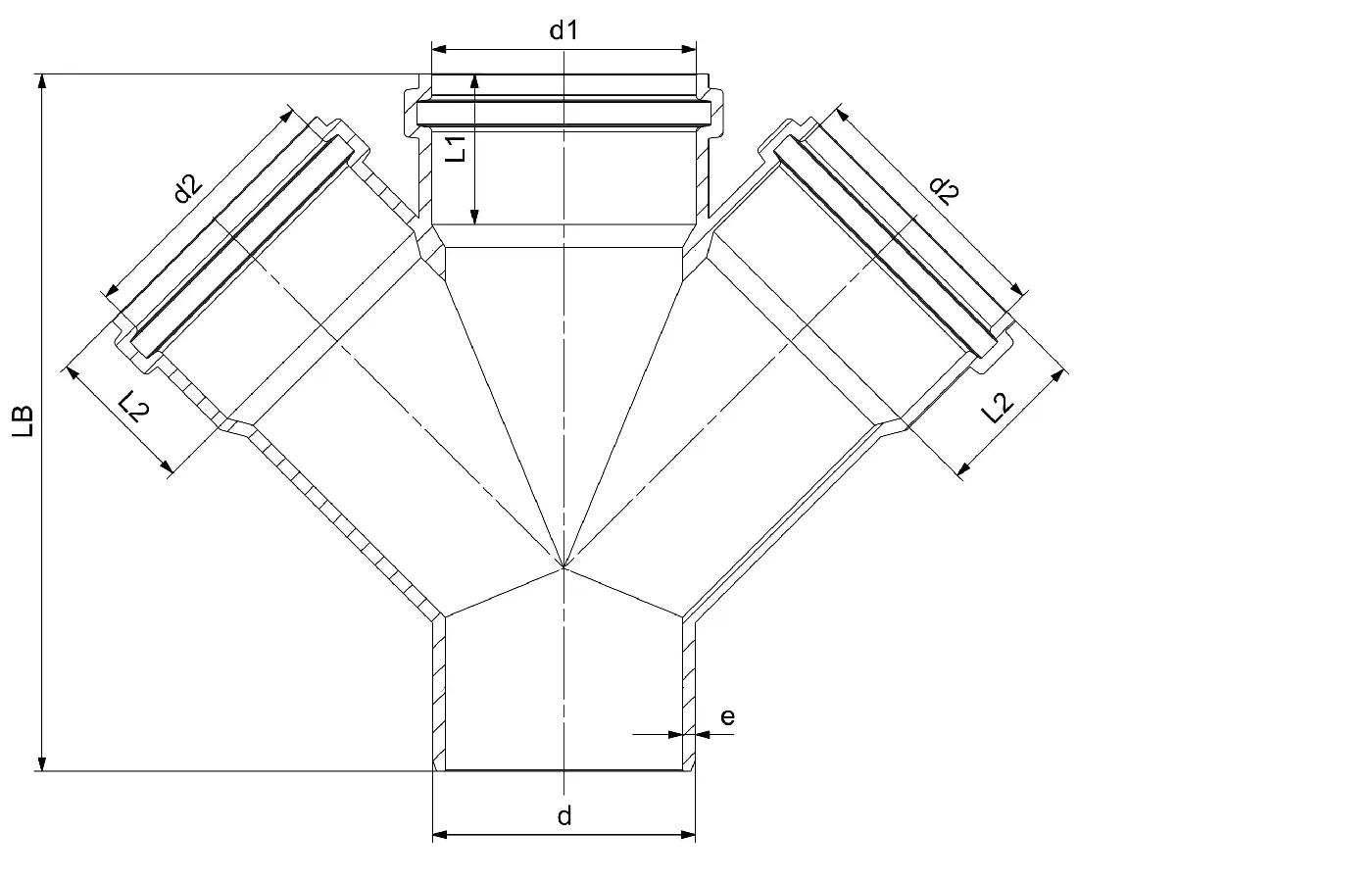

Measurements
| Length (l2) | 46 |
|---|---|
| Z Measurement d2 | 50 |
| Z Measurement L1 | 46 |
| Z Measurement d | 50-50 |
| Wall thickness_s | 16 |
| Z Measurement e | 1,8 |
| Z Measurement d1 | 50 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900553803 | 06414900566445 | 06414900566452 |
| Height | 175 | 243 | 1135 |
| Length | 65 | 415 | 1200 |
| Quantity | 1 | 15 | 450 |
| Type | Piece | Box | Pallet |
| Volume | 0,002218125 | 0,02541294 | 1,0896 |
| Weight | 0,117 | 2,235 | 92,05 |
| Width | 195 | 252 | 800 |
Product code
| Item no VVS | 186738050 |
|---|---|
| Item no NOBB | 60823841 |
| Item no NRF | 1486172 |
| Item no EAN | 8698652042534 |
| Item no GTIN | 08698652042534 |
| Item no GF | 4704205003021 |
| Item no RSK | 2832087 |
Status
| Item Available From date | 2026-02-01 |
|---|
Documents
Technical manuals
