Technical information
7 KB1187135
GF Silenta Premium double branch radius 87,5° 90-90mm
Item details
Dimensions
| Item Unit Length | 110.4 |
|---|---|
| Item Unit Height | 236 |
| Item_UOM | pce |
| Item Unit Width | 261 |
| Item Unit Weight | 0,94239 |

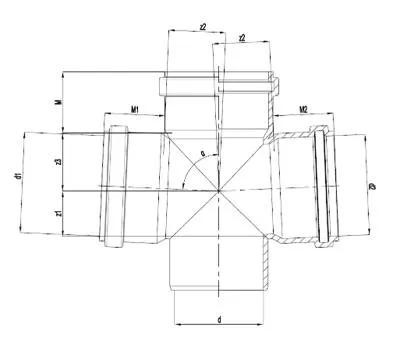

Measurements
| Z Measurement d | 80,6 |
|---|---|
| Z measurement m1 | 69,9 |
| Z3 | 52,4 |
| Z Measurement ALPHA | 87,5 |
| Z measurement m | 68,7 |
| Z2 | 50 |
| Z Measurement d2 | 90,6 |
| z1 | 38,6 |
| Z Measurement d1 | 90,6 |
| Z measurement m2 | 69,9 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900602082 | 06414900092913 | 06414900547673 |
| Height | 236 | 590 | 1200 |
| Length | 110.4 | 390 | 1200 |
| Quantity | 1 | 8 | 96 |
| Type | Piece | Medium_Box | PALLET |
| Volume | 0,0068001984 | 0,082836 | 1,152 |
| Weight | 0,94239 | 9,896 | 137,752 |
| Width | 261 | 360 | 800 |
Product code
| Item no GTIN | 08698652183459 |
|---|---|
| Item no VVS | 186846014 |
| Item no GF | 4501109007021 |
| Item no EAN | 8698652183459 |
Status
| Item Available From date | 2026-02-01 |
|---|
