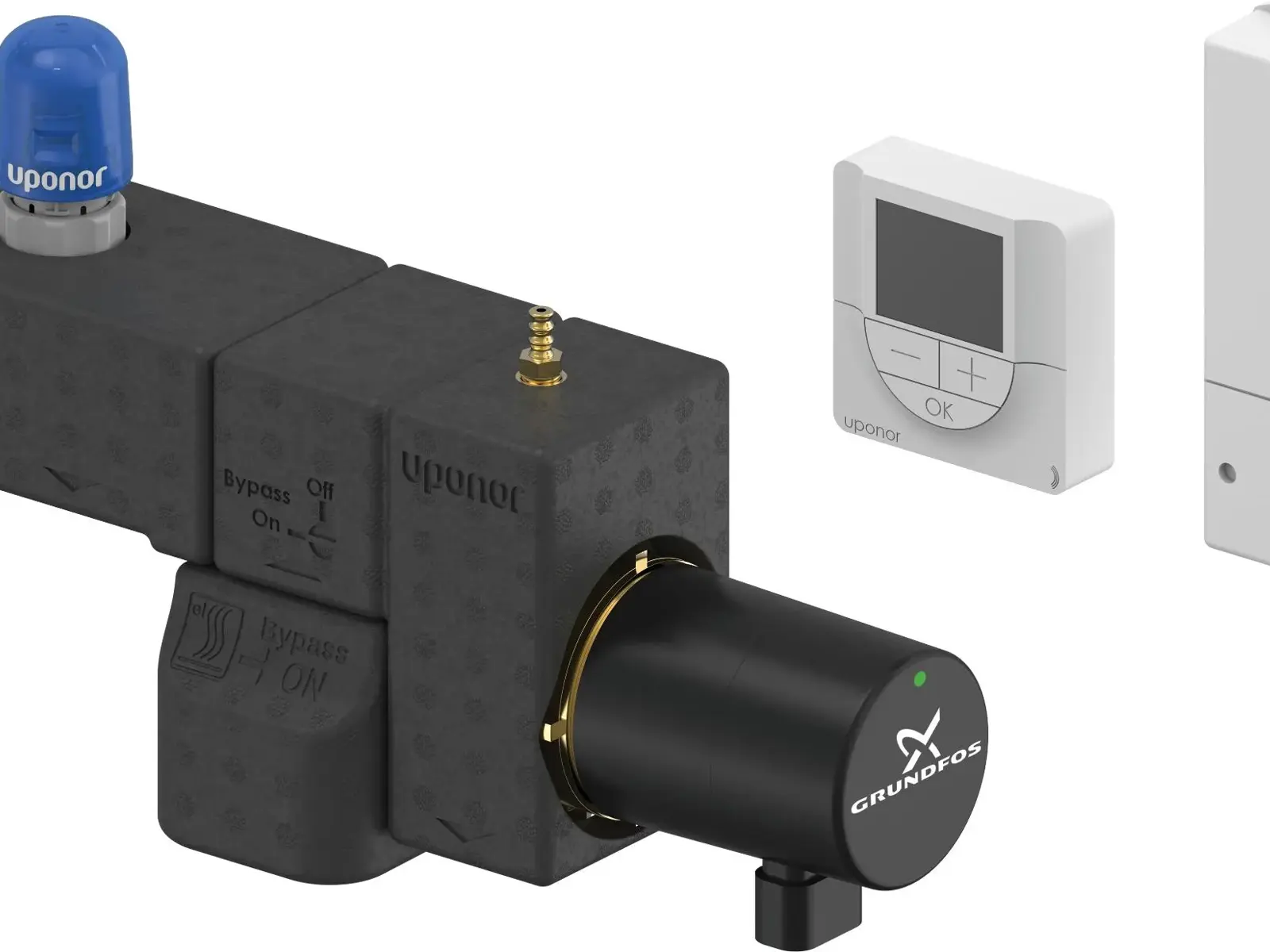

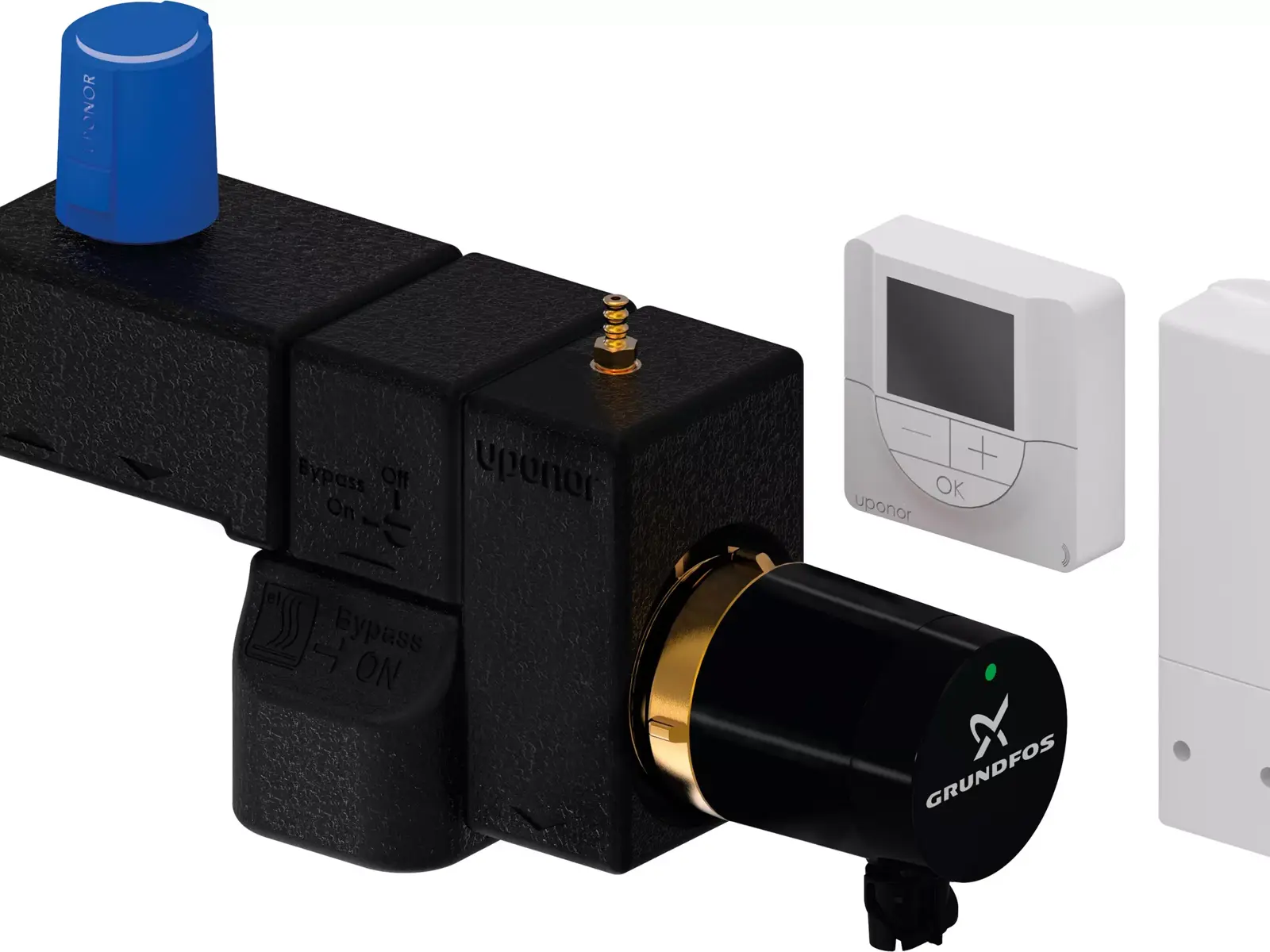

Uponor Fluvia T pumpgroup Push-12 CH-G
Item details
Dimensions
| Item Unit Weight | 3,98 |
|---|---|
| Item Unit Width | 100 |
| Item_UOM | pce |
| Item Unit Height | 212.5 |
| Item Unit Length | 331.5 |
Measurements
| Cylindric thread G2 | 32 |
|---|---|
| Length (l2) | 87 |
| Z Measurement b | 40 |
| Z Measurement h1 | 58 |
| Cylindric_thread_G | 3/4 |
| LENGTH_L | 331 |
| Z Measurement b1 | 65 |
| Z Measurement w | 271 |
| Cylindric_thread_G1 | 3/4 |
| Metric thread M | 22 |
| Z Measurement b2 | 60 |
| Length (l1) | 38 |
| Metric thread M1 | 32 |
| Z Measurement h | 100 |
Packaging
| Field | PL1 | PL4 |
|---|---|---|
| GTIN | 06414905475773 | 06414905475780 |
| Height | 105 | 700 |
| Length | 425 | 1200 |
| Quantity | 1 | 30 |
| Type | Base_Box | Pallet |
| Volume | 0,010486875 | 0,672 |
| Weight | 4,08 | 147,4 |
| Width | 235 | 800 |
Product code
| Item no GTIN | 06414905428649 |
|---|---|
| Item no EAN | 6414905428649 |
| Item no LVI | 2025019 |
| Item no GF | 35001095131 |
| Item no RSK | 2988790 |
