Uponor HypAir admittance valve 32-63
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Width | 70 |
| Item Unit Weight | 0,1 |
| Item Unit Length | 70 |
| Item Unit Height | 80 |

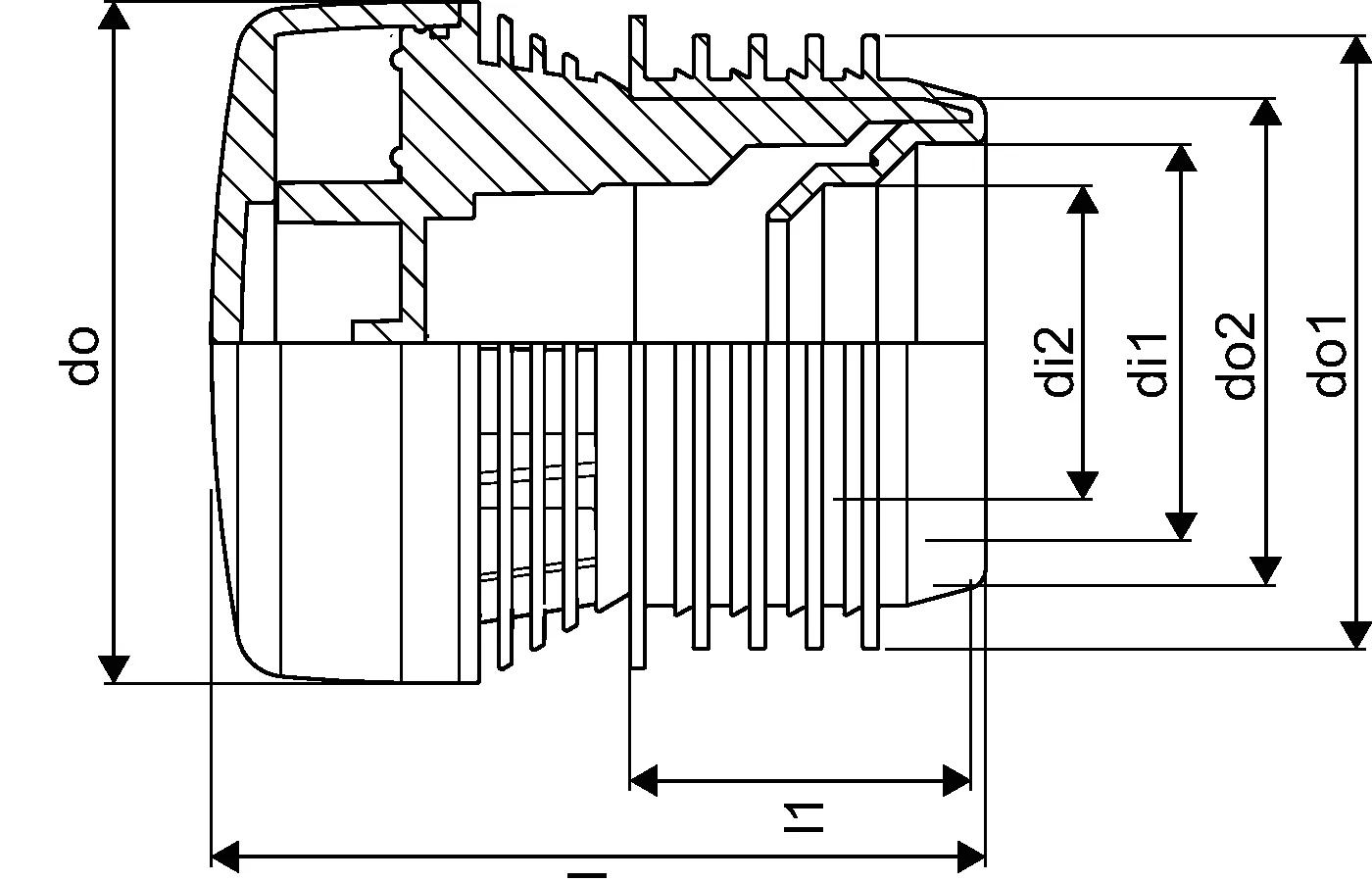

Measurements
| Inner_diameter_di1 | 40 |
|---|---|
| Outer Diameter_do1 | 63 |
| Outer Diameter_do | 70 |
| LENGTH_L | 80 |
| Outer Diameter_do3 | 50 |
| Inner_diameter_di2 | 32 |
| Outer Diameter_do2 | - |
Packaging
| Packaging Quantity PL2 | 100 |
|---|---|
| Packaging GTIN PL4 | 06414900443753 |
| Packaging Length PL1 | 71 |
| Packaging Type PL2 | Medium_Box |
| Packaging Volume PL4 | 1,46304 |
| Packaging Width PL1 | 71 |
| Packaging Quantity PL1 | 1 |
| Packaging GTIN PL2 | 06414900485104 |
| Packaging Height PL4 | 1524 |
| Packaging Type PL1 | Base_Box |
| Packaging Volume PL2 | 0,051137625 |
| Packaging Weight PL4 | 300 |
| Packaging GTIN PL1 | 06414900481090 |
| Packaging Height PL2 | 345 |
| Packaging Length PL4 | 1200 |
| Packaging Volume PL1 | 0,000408321 |
| Packaging Weight PL2 | 11,9 |
| Packaging Width PL4 | 800 |
| Packaging Quantity PL4 | 2400 |
| Packaging Height PL1 | 81 |
| Packaging Length PL2 | 385 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL1 | 0,11 |
| Packaging Width PL2 | 385 |
Product code
| Item no RSK | 3350920 |
|---|---|
| Item no NRF | 2217992 |
| Item no EAN | 6414900481069 |
| Item no LVI | 4162841 |
| Item no GTIN | 06414900481069 |
| Item no VVS | 173941063 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
