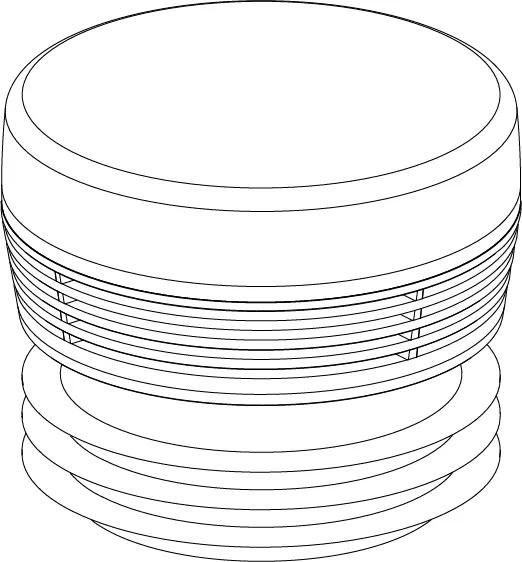

Uponor HypAir admittance valve 70-110
Item details
Dimensions
| Item Unit Length | 125 |
|---|---|
| Item Unit Weight | 0,35 |
| Item_UOM | pce |
| Item Unit Width | 125 |
| Item Unit Height | 108 |

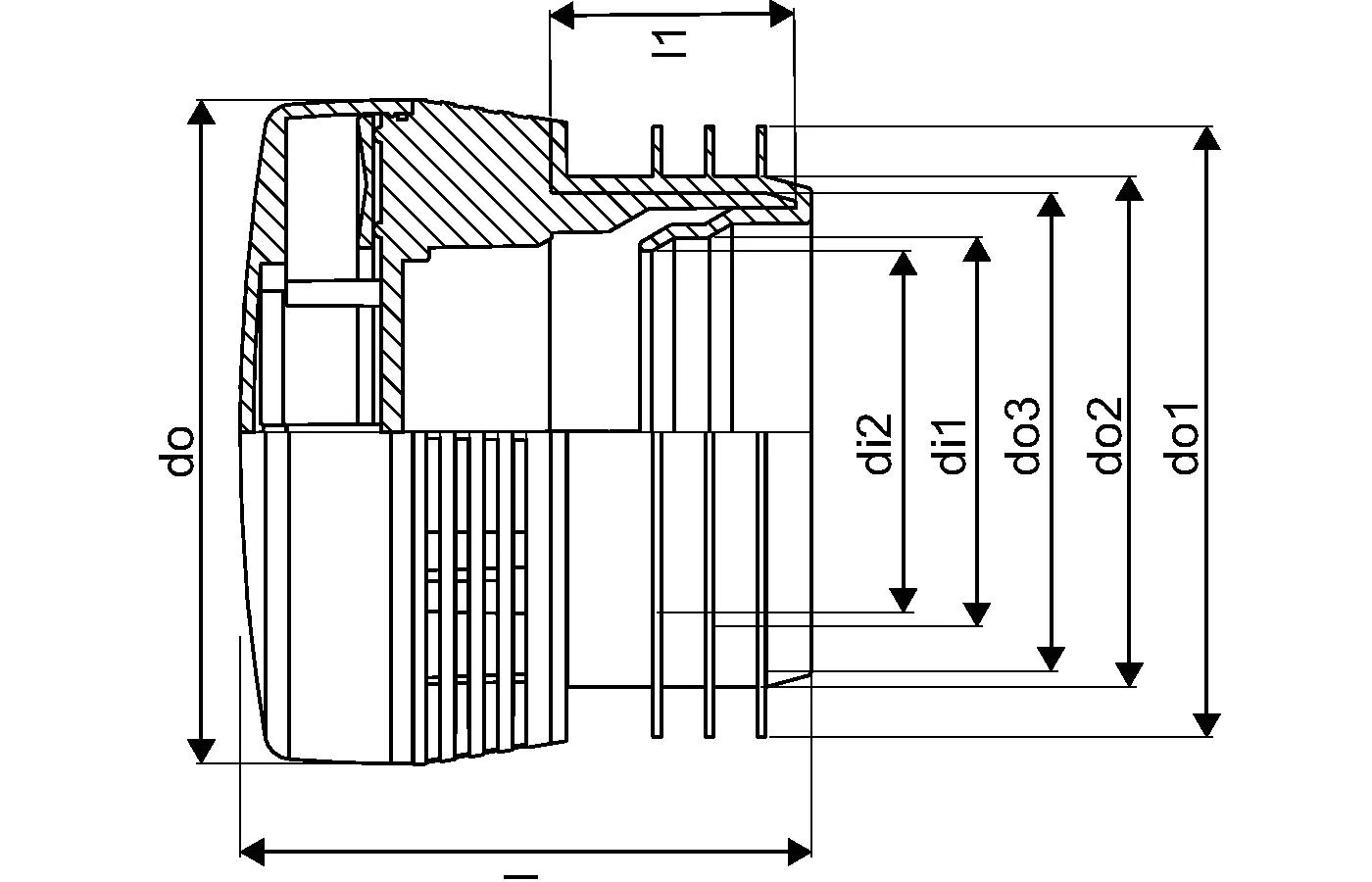

Measurements
| LENGTH_L | 108 |
|---|---|
| Outer Diameter_do3 | 90 |
| Outer Diameter_do | 125 |
| Inner_diameter_di1 | 75 |
| Outer Diameter_do1 | 110 |
| Inner_diameter_di2 | 70 |
| Outer Diameter_do2 | 100 |
Packaging
| Packaging GTIN PL1 | 06414900481083 |
|---|---|
| Packaging Height PL2 | 345 |
| Packaging Length PL4 | 1200 |
| Packaging Volume PL1 | 0,001703125 |
| Packaging Weight PL2 | 11,34 |
| Packaging Width PL4 | 800 |
| Packaging Quantity PL1 | 1 |
| Packaging GTIN PL2 | 06414900481373 |
| Packaging Height PL4 | 1960 |
| Packaging Type PL1 | Base_Box |
| Packaging Volume PL2 | 0,051137625 |
| Packaging Weight PL4 | 360 |
| Packaging Quantity PL2 | 27 |
| Packaging GTIN PL4 | 06414900481397 |
| Packaging Length PL1 | 125 |
| Packaging Type PL2 | Medium_Box |
| Packaging Volume PL4 | 1,8816 |
| Packaging Width PL1 | 125 |
| Packaging Quantity PL4 | 810 |
| Packaging Height PL1 | 109 |
| Packaging Length PL2 | 385 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL1 | 0,4 |
| Packaging Width PL2 | 385 |
Product code
| Item no LVI | 4162840 |
|---|---|
| Item no GTIN | 06414900481052 |
| Item no NRF | 2217991 |
| Item no EAN | 6414900481052 |
| Item no RSK | 3350919 |
| Item no VVS | 173941110 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
