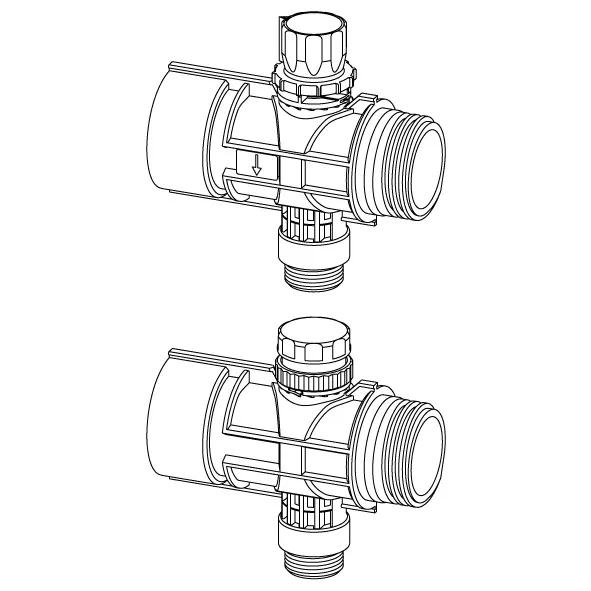

GF Uponor Magna manifold segment with valve Euro 1x3/4 Euro

GF Uponor Magna manifold segment with valve Euro 1x3/4 Euro

Part no.1121532

Product data sheet (pdf)

Item details

Dimensions

Item Unit Width	370
Item Unit Weight	0,402
Item Unit Length	100
Item_UOM	pce
Item Unit Height	56

Measurements

Cylindric_thread_G	3/4
LENGTH_L	125
Length (l3)	64
Length (l2)	62
Z3	51,5
Length L4	52
Length (l1)	100
Z Measurement b	100

Packaging

GTIN	06414905663132	06414905663170	06414905663385
Height	56	200	900
Length	100	520	1200
Quantity	1	10	210
Type	Plastic_Bag	Medium_Box	Pallet
Volume	0,002072	0,02288	0,864
Weight	0,405	4,36	116,56
Width	370	220	800

Product code

Item no EAN	6414905660377
Item no GTIN	06414905660377
Item no NRF	8601849
Item no LVI	2022183
Item no GF	35001121532

Documents

Technical manuals
DGNB Declaration

Installation Manual

1 KB1125858

Installation Manual Magna industrial manifold (1125858)

Technical information

1 KB1134883

Technical Information Magna industrial underfloor heating system (1134883)

DGNB Declaration

270 B1144596

Uponor DGNB Magna components (1144596)
