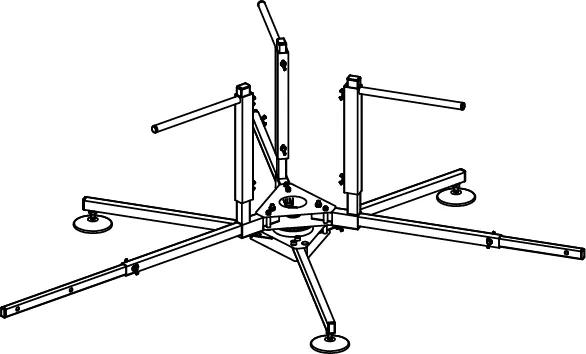

Uponor Magna uncoiler
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Height | 150 |
| Item Unit Weight | 15 |
| Item Unit Length | 700 |
| Item Unit Width | 300 |
Measurements
| Z Measurement h | 150 |
|---|---|
| LENGTH_L | 700 |
| Z Measurement w | 300 |
Packaging
| Packaging Quantity PL1 | 1 |
|---|---|
| Packaging Height PL1 | 170 |
| Packaging Type PL1 | Base_Box |
| Packaging Weight PL1 | 16,78 |
| Packaging GTIN PL1 | 06414900423304 |
| Packaging Length PL1 | 740 |
| Packaging Volume PL1 | 0,042772 |
| Packaging Width PL1 | 340 |
| Packaging Quantity PL4 | 18 |
| Packaging Height PL4 | 1164 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL4 | 327 |
| Packaging GTIN PL4 | 06414900325653 |
| Packaging Length PL4 | 1200 |
| Packaging Volume PL4 | 1,11744 |
| Packaging Width PL4 | 800 |
Product code
| Item no RSK | 3871082 |
|---|---|
| Item no LVI | 2022223 |
| Item no GTIN | 06414900368131 |
| Item no VVS | 87397114 |
| Item no NRF | 8361307 |
| Item no EAN | 6414900368131 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
