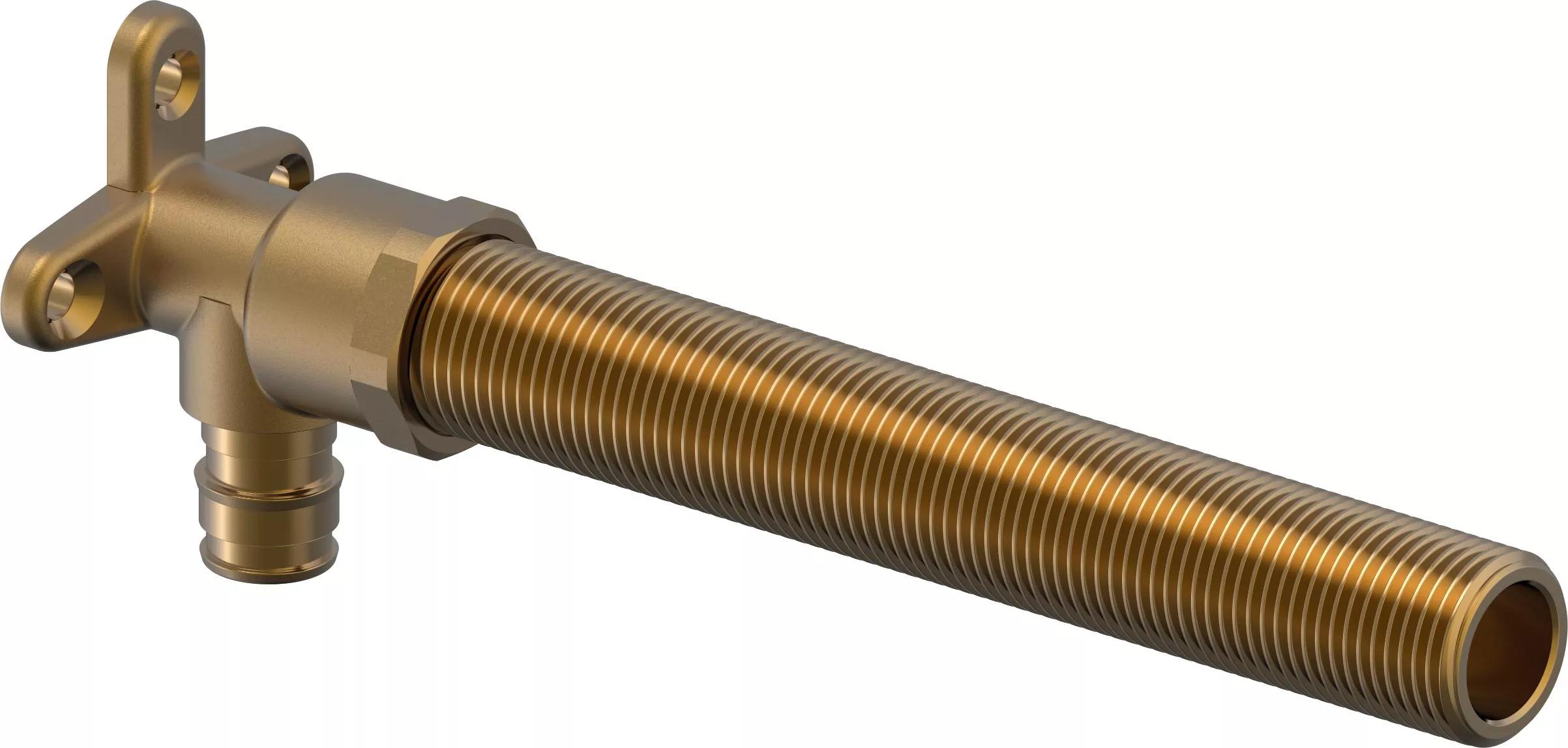

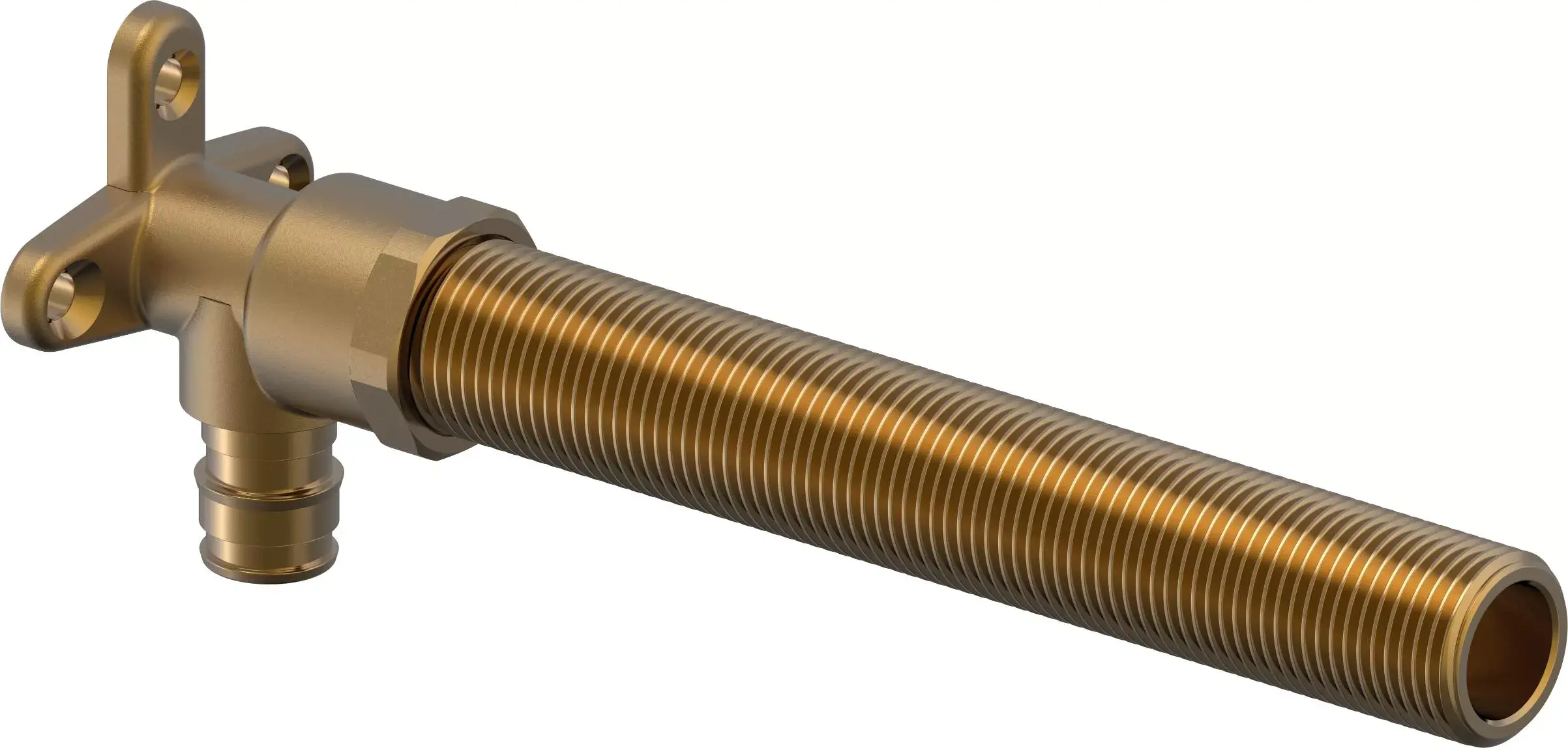

Uponor Q&E BP-elbow LF Male 16x1/2" BSP L=175mm

Uponor Q&E BP-elbow LF Male 16x1/2" BSP L=175mm
Part no.1126843

Item details

Dimensions

Item Unit Height41
Item Unit Length175
Item Unit Width61
Item_UOMpce
Item Unit Weight0,255

Technical data

Recycling Text Block PL3Corrugated fibreboard
Recycling Text Block PL1Low density polyethylene

Measurements

Length (l3)160
Cylindric_thread_G1/2
LENGTH_L175
Length (l2)15
z118,5
Length (l1)36
Z Measurement k32

Packaging

FieldPL1PL3PL4
GTIN06414900306089 06414900364720 06414900380171
Height41 170 680
Length200 320 1200
MaterialLow density polyethylene Corrugated fibreboard -
Material (number)4 20 -
Material (short)LDPE PAP -
Quantity5 50 2700
TypePlastic_Bag Box Pallet
Volume0,001476 0,01088 0,816
Weight1,275 13,15 797
Width180 200 1000

Product code

Item no GTIN06414905673285
Item no GF35001126843
Item no EAN6414905673285

Documents

Installation Manual
1 KB1121763

Installation Manual Q&E 9,9-50 (1121763)

Installation Manual
1 KB1062301

Installation Manual Uni Pipe PLUS (1062301)

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)
