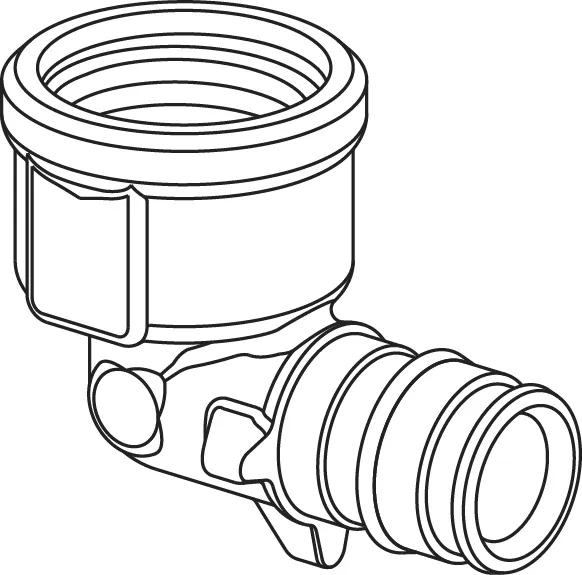

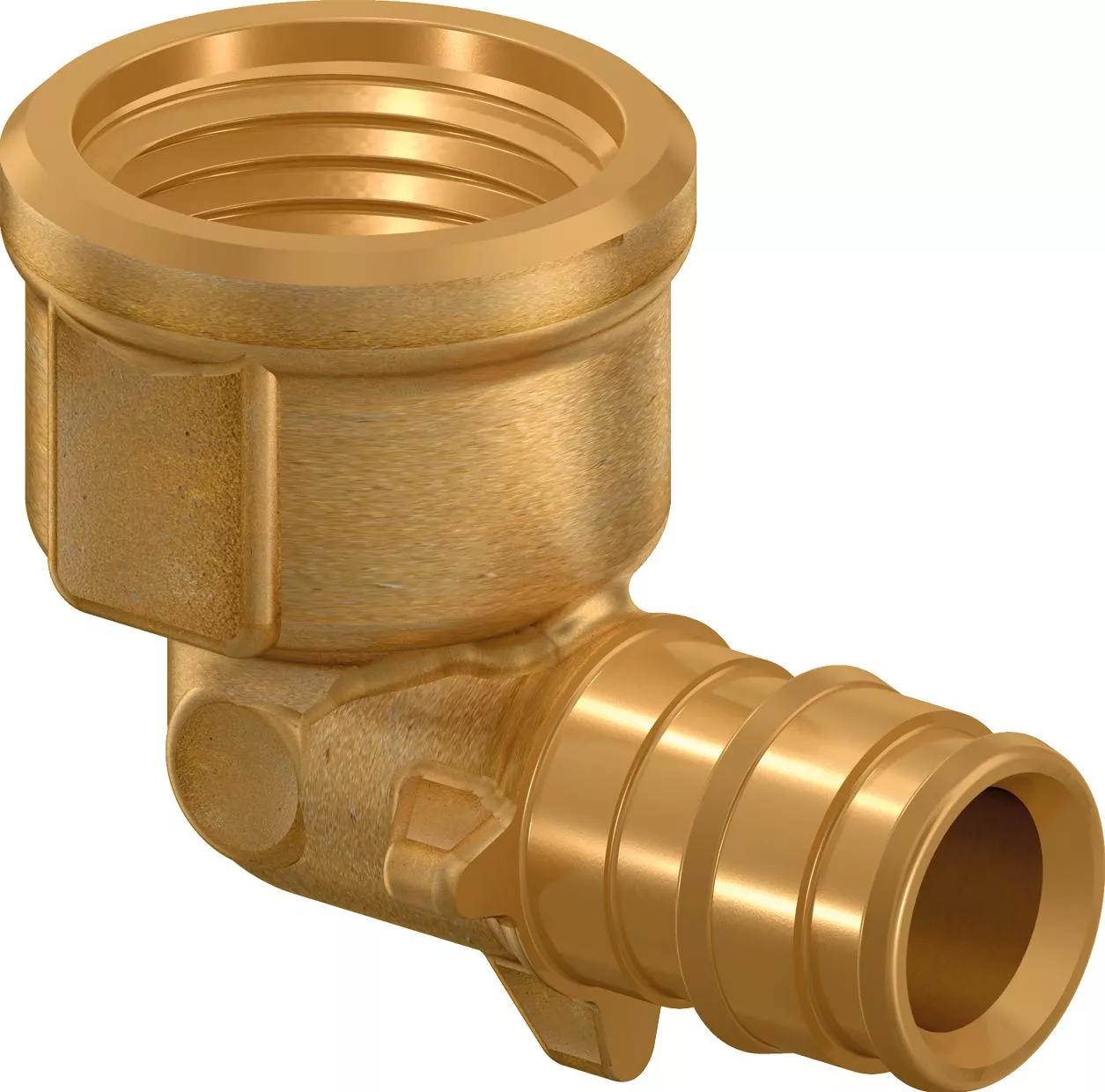

Uponor Q&E elbow adapter female LF 16x1/2" BSP

Uponor Q&E elbow adapter female LF 16x1/2" BSP
Part no.1126835

Item details

Dimensions

Item_UOMpce
Item Unit Height37
Item Unit Weight0,067
Item Unit Width23
Item Unit Length45.5

Technical data

Recycling Text Block PL3Corrugated fibreboard
Recycling Text Block PL1Low density polyethylene

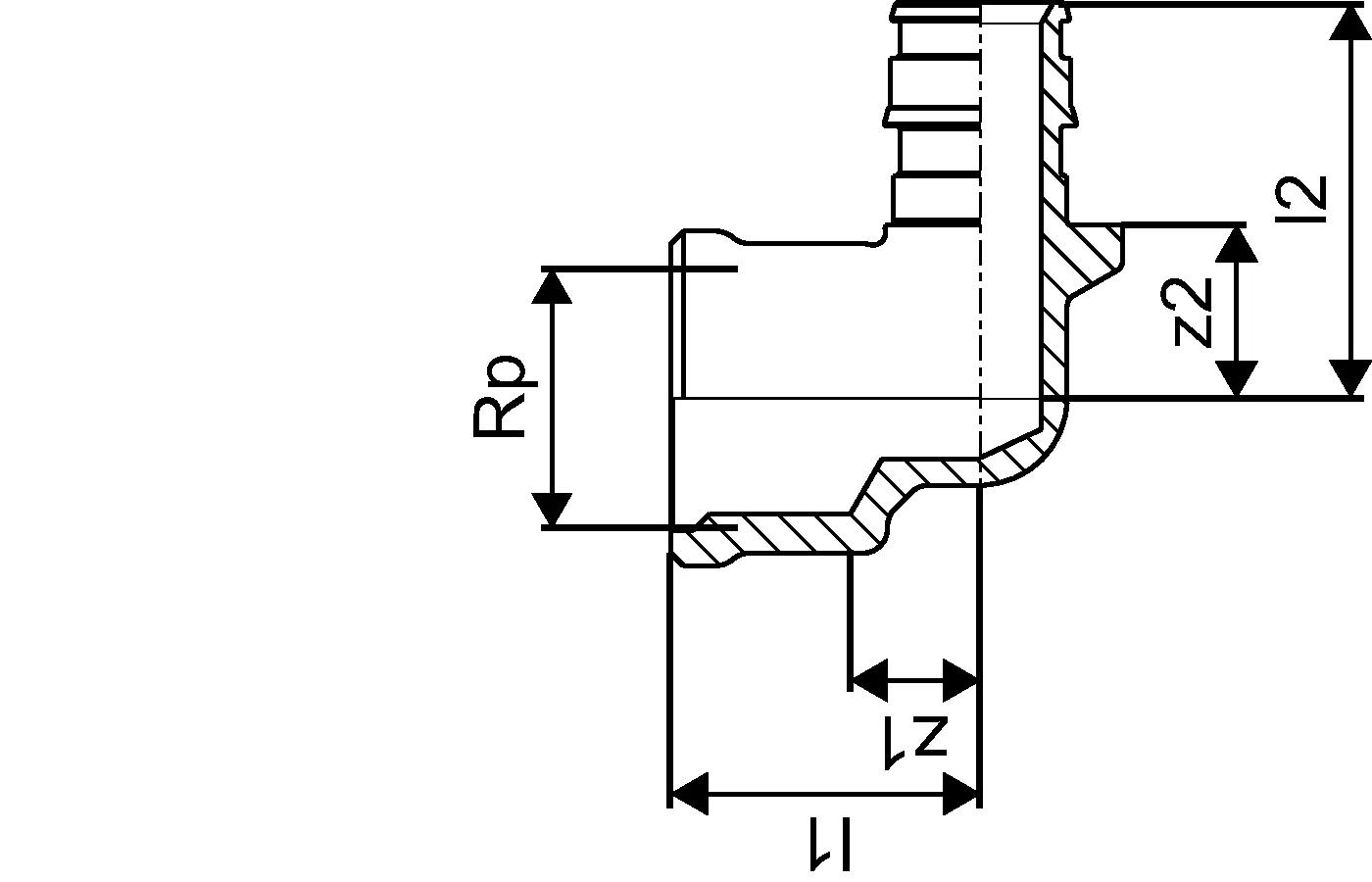

Measurements

Length (l1)28,5
z110,5
Female thread Rp1/2
Z214
Length (l2)32

Packaging

FieldPL1PL3PL4
GTIN06414900305914 06414900364645 06414900372107
Height37 170 680
Length100 320 1200
MaterialLow density polyethylene Corrugated fibreboard -
Material (number)4 20 -
Material (short)LDPE PAP -
Quantity5 200 10800
TypePlastic_Bag Box Pallet
Volume0,00037 0,01088 0,816
Weight0,335 13,8 825
Width100 200 1000

Product code

Item no GF35001126835
Item no GTIN06414905673087
Item no EAN6414905673087

Documents

Installation Manual
1 KB1121763

Installation Manual Q&E 9,9-50 (1121763)

Installation Manual
1 KB1062301

Installation Manual Uni Pipe PLUS (1062301)

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)
