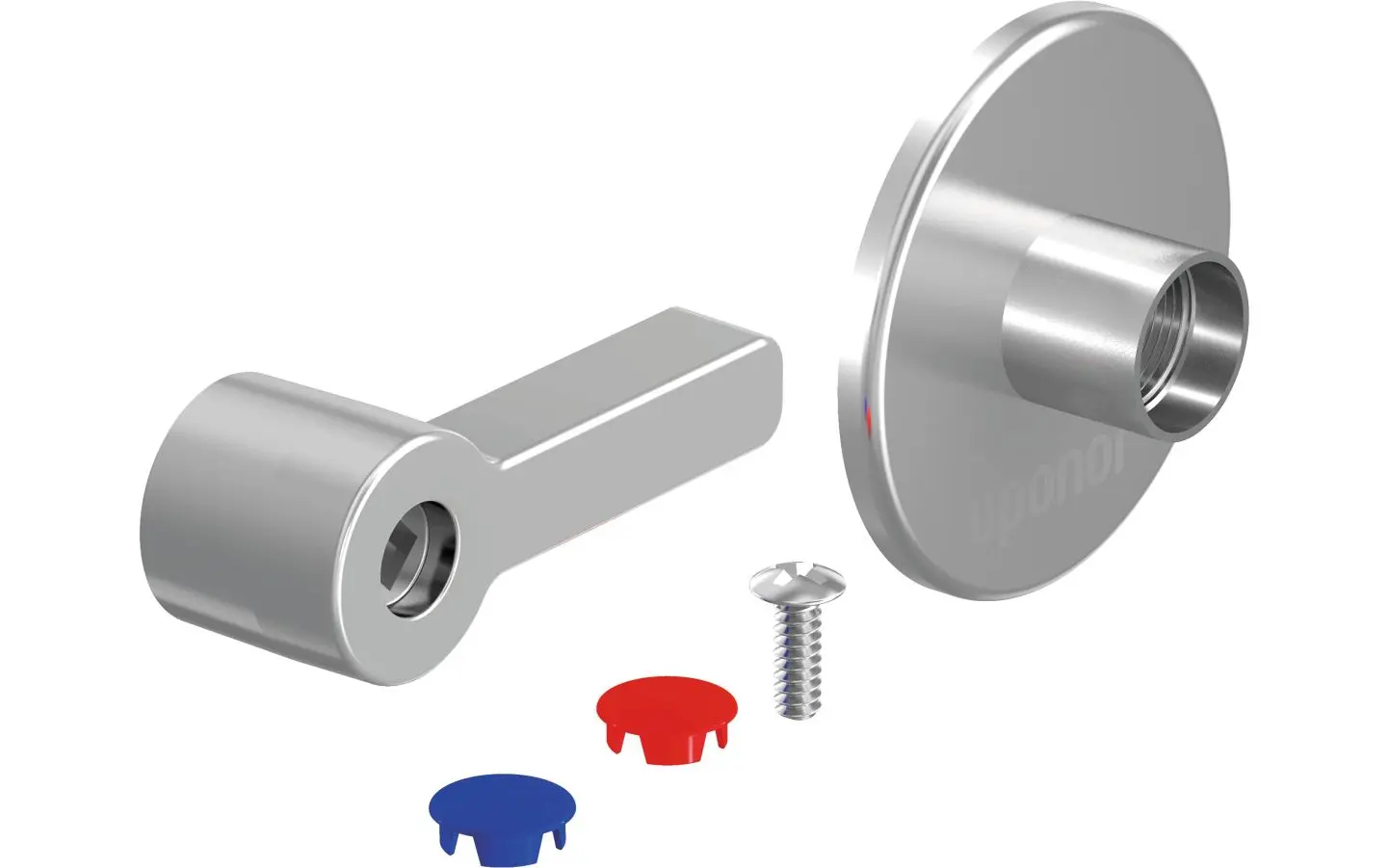

Uponor Q&E handle straight

Uponor Q&E handle straight
Part no.1088566
Product data sheet (pdf)

Item details

Dimensions

Item Unit Weight0,088
Item_UOMset
Item Unit Height35
Item Unit Width67
Item Unit Length74

Technical data

Recycling Text Block PL2Corrugated fibreboard
Recycling Text Block PL3Corrugated fibreboard
Recycling Text Block PL1Low density polyethylene

Measurements

Outer Diameter_do67,8
LENGTH_L60

Packaging

Packaging Quantity PL44440
Packaging Material (short) PL1LDPE
Packaging Material PL2Corrugated fibreboard
Packaging GTIN PL306414905271573
Packaging Height PL3320
Packaging Length PL3265
Packaging Type PL3Box
Packaging Volume PL30,03392
Packaging Weight PL311,8
Packaging Width PL3400
Packaging Quantity PL210
Packaging Material (number) PL220
Packaging Material (short) PL3PAP
Packaging GTIN PL106414905233687
Packaging Height PL135
Packaging Length PL1150
Packaging Type PL1Plastic_Bag
Packaging Volume PL10,0007875
Packaging Weight PL10,091
Packaging Width PL1150
Packaging Quantity PL11
Packaging Material (number) PL14
Packaging Material (short) PL2PAP
Packaging Material PL3Corrugated fibreboard
Packaging GTIN PL406414905274581
Packaging Height PL41730
Packaging Length PL41200
Packaging Type PL4Pallet
Packaging Volume PL41,6608
Packaging Weight PL4461,6
Packaging Width PL4800
Packaging Quantity PL3120
Packaging Material (number) PL320
Packaging Material PL1Low density polyethylene
Packaging GTIN PL206414905270606
Packaging Height PL275
Packaging Length PL2120
Packaging Type PL2Medium_Box
Packaging Volume PL20,00216
Packaging Weight PL20,965
Packaging Width PL2240

Product code

Item no GTIN06414905238293
Item no EAN6414905238293

Product Name

Product Type WindchillBLDE Finished Good

Documents

Installation Manual
1 KB1121763

Installation Manual Q&E 9,9-50 (1121763)

Download document
Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)

Download document
